300 mm Swivel Horizontal Medical Arm

for Philips Rack Flexible Module Server,

Table column mounting.

Product number: WM 270.104 - 300 mm Swivel Horizontal Medical Arm

for Philips Rack Flexible Module Server,

Table column mounting.

Product sheet PDF

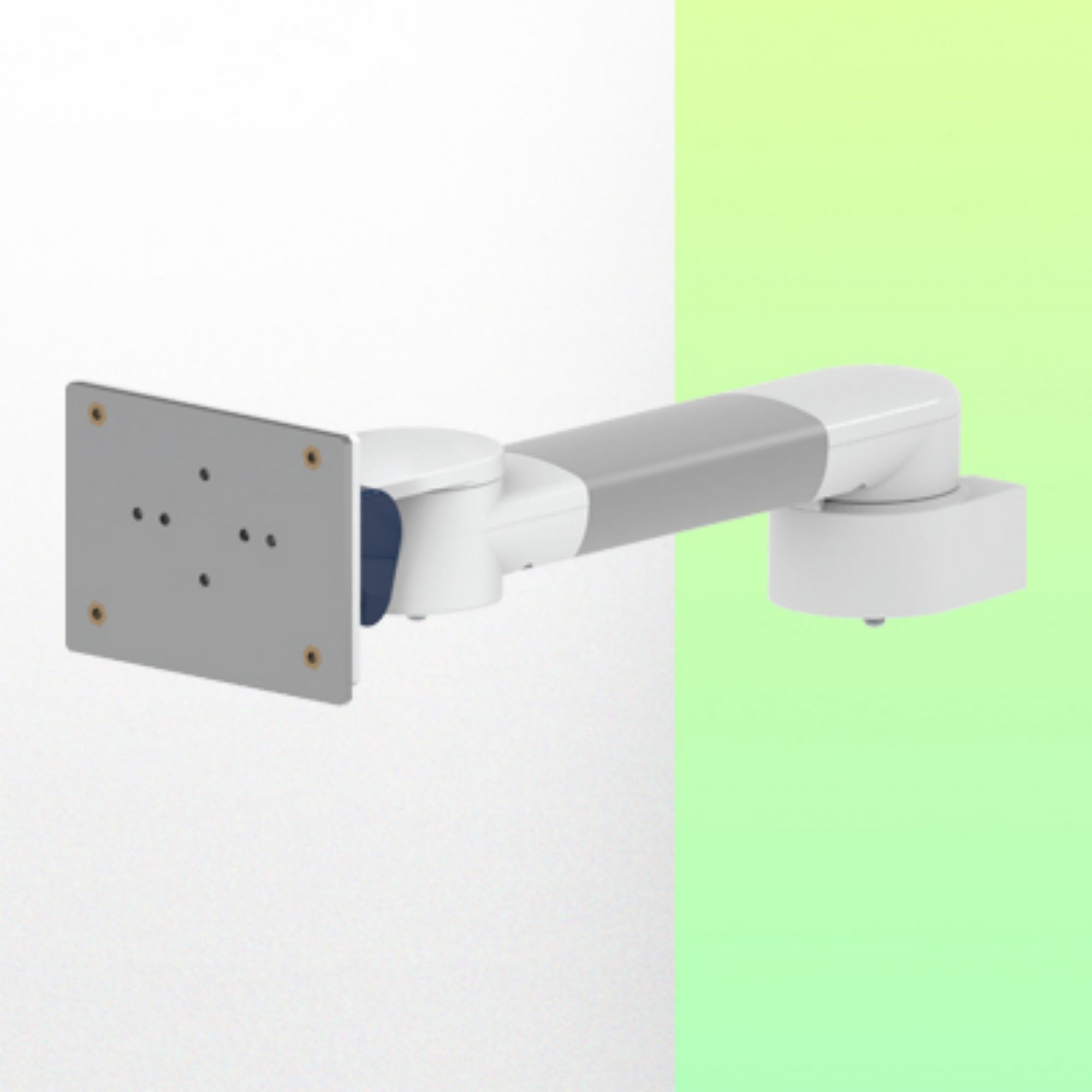

This 300 mm Horizontal Swivel Arm for Philips FMS allows the FMS Rack to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

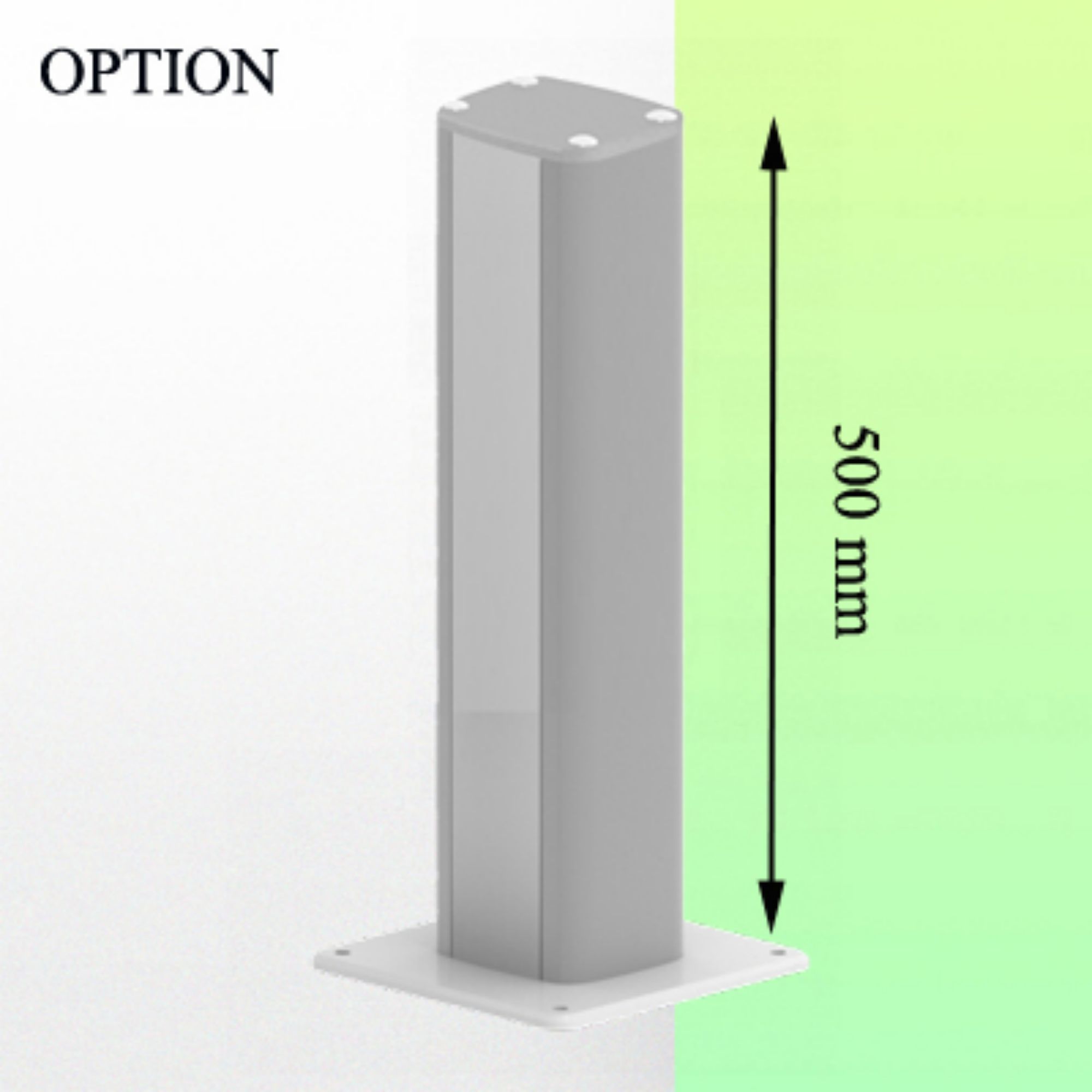

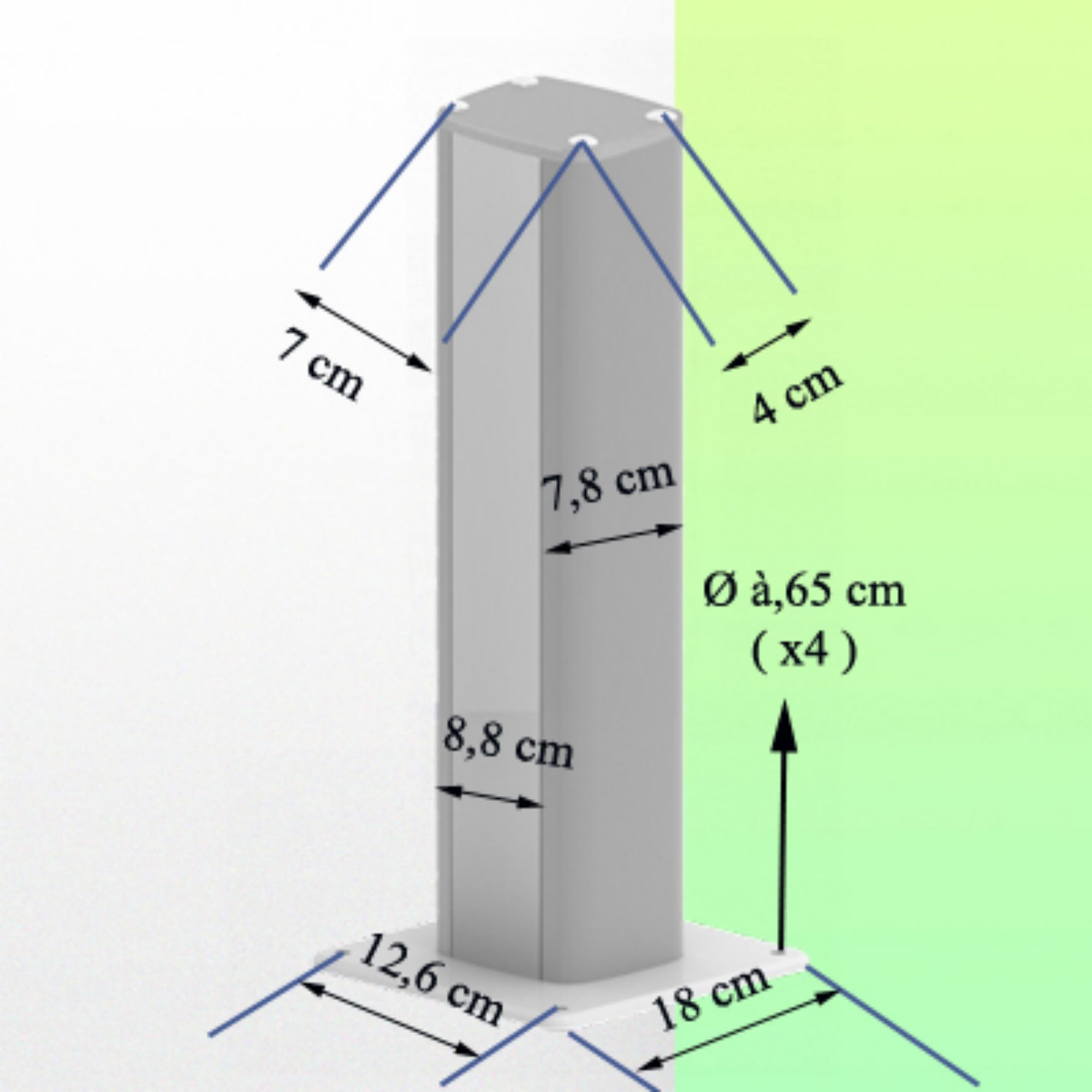

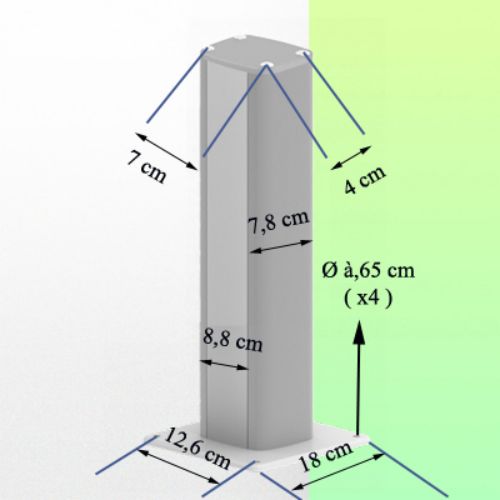

* Optional table column mounting, with several heights available (500 - 300 mm).

* These columns can be easily cut to size.

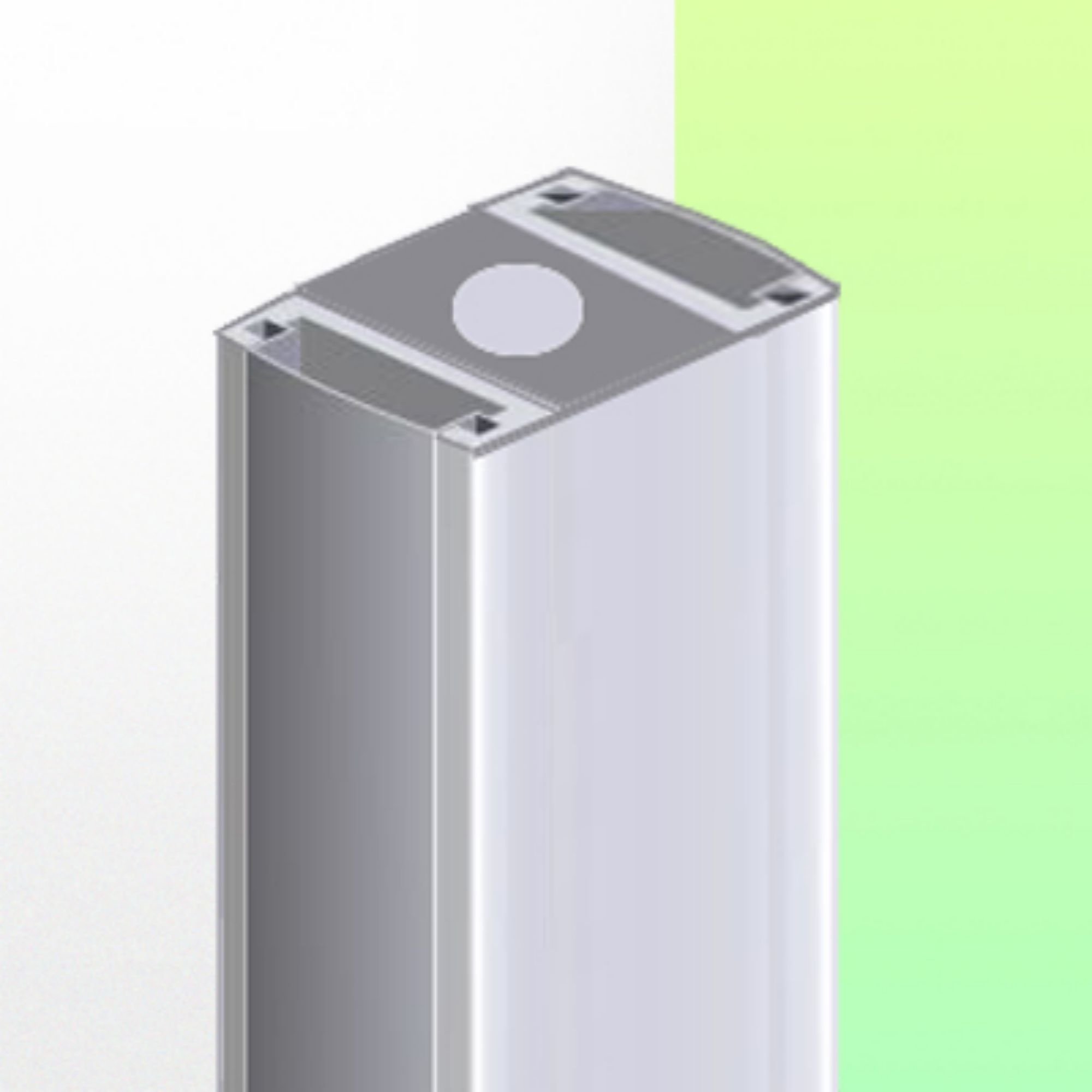

* All cables also pass through the column

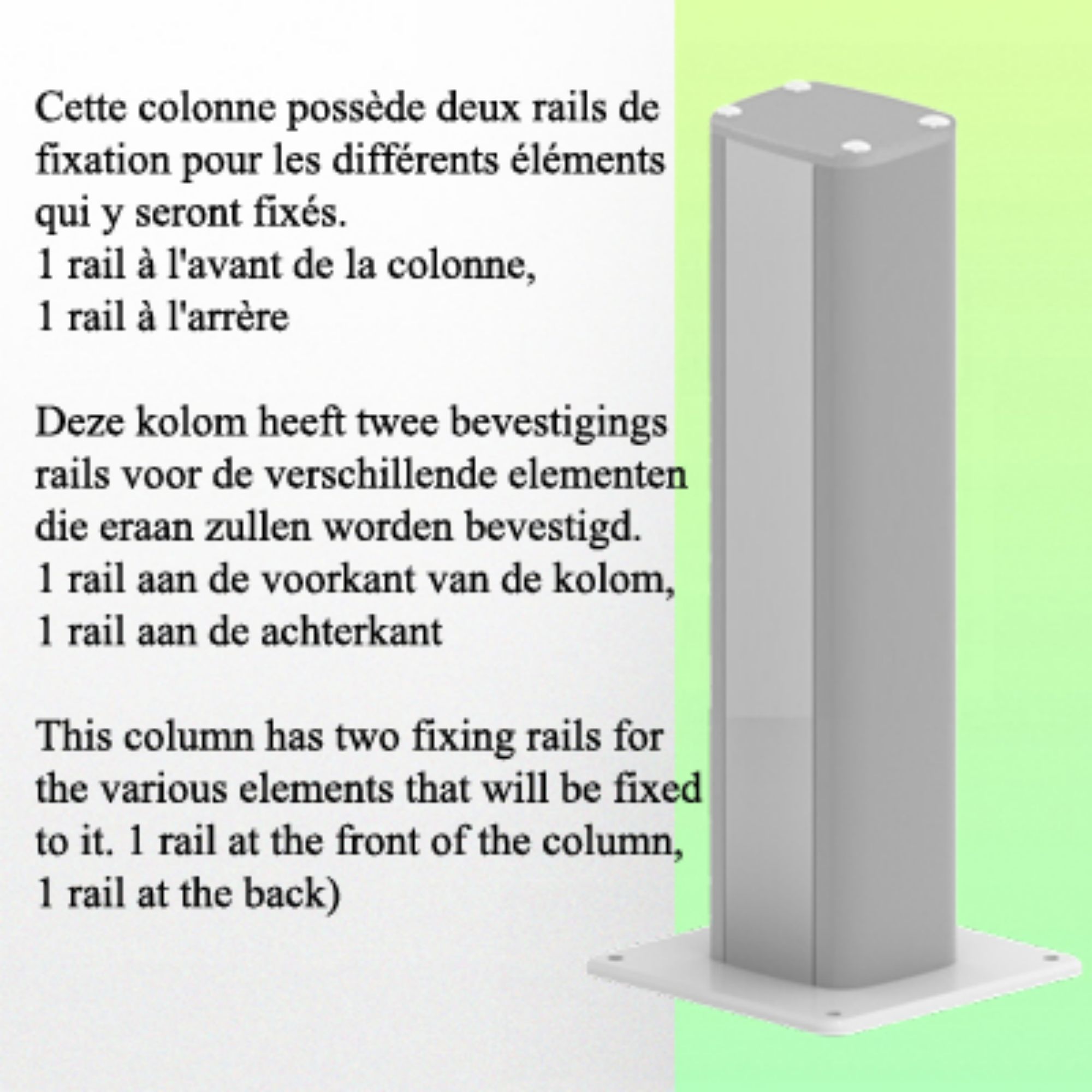

* This 300 mm Horizontal Arm simply slides into the Column rail, then adjusts to the required height and locks in place.

* It has no height adjustment

* The head of this arm complies with the Philips FMS Rack mounting standard, weighing no more than 18 Kg.

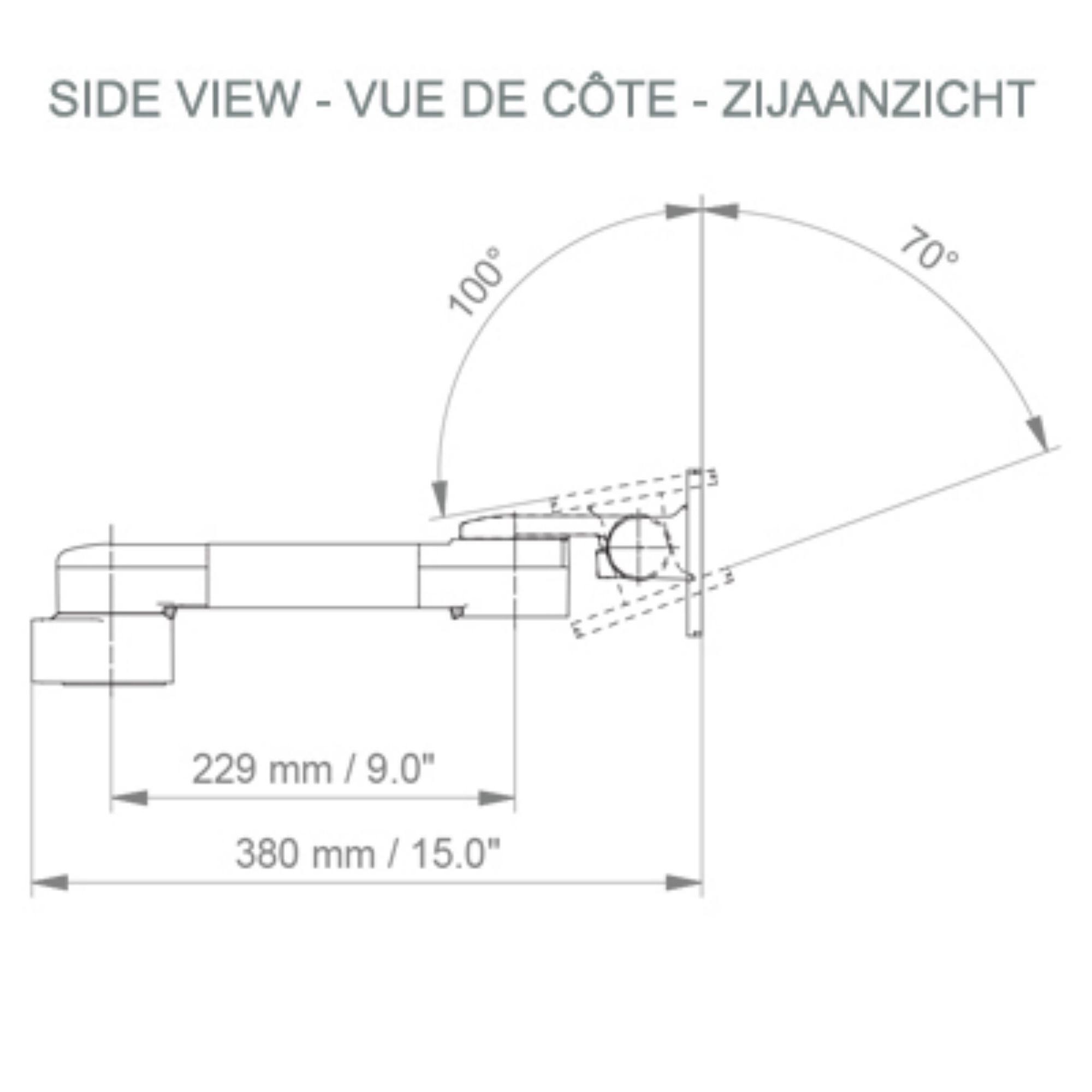

* Rack tilt: 70° down and 100° up

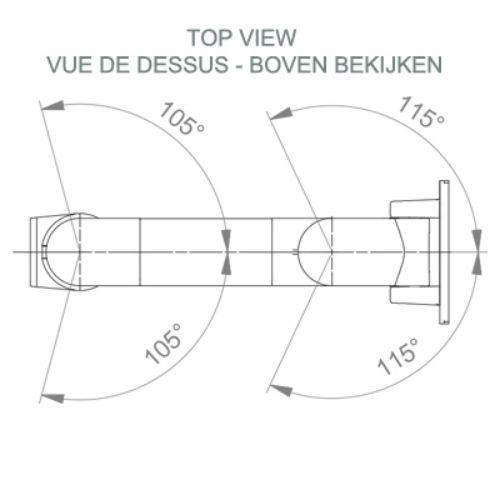

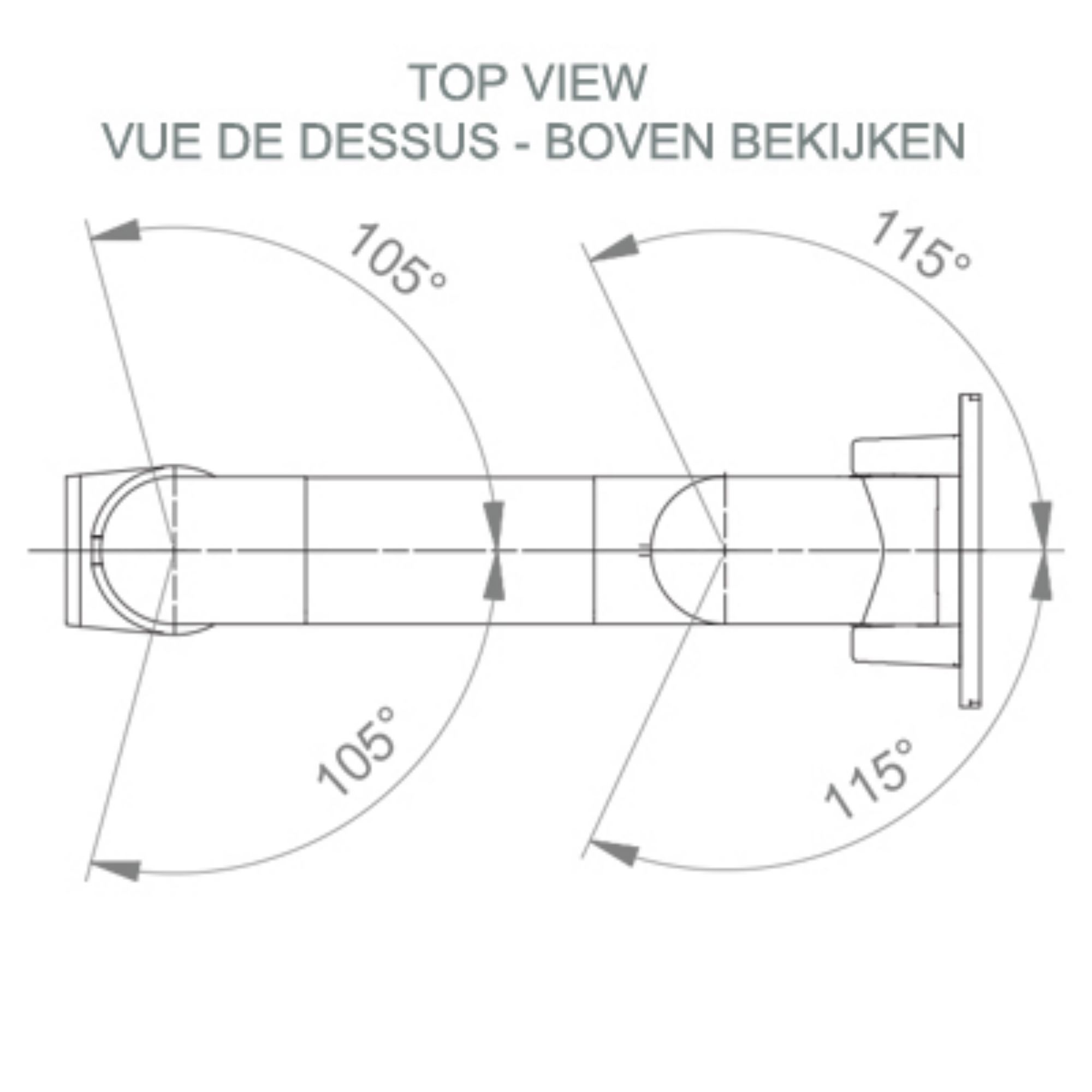

* Rack rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 380 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
