Medical Horizontal swivel arm 2 x 300 mm for screen

(Heavy Duty applications up to 18 Kg),

Mounting on Mindray Medical Power Supply Device

Product number: WM 222.137 - Medical Horizontal swivel arm 2 x 300 mm for screen

(Heavy Duty applications up to 18 Kg),

Mounting on Mindray Medical Power Supply Device

Product sheet PDF

The extension allows the swivel arm to go further into the room and closer to the patient or the intended work area.

It can be folded against its mounting point for clean storage when not in use.

Suitable for devices up to 18 kg.

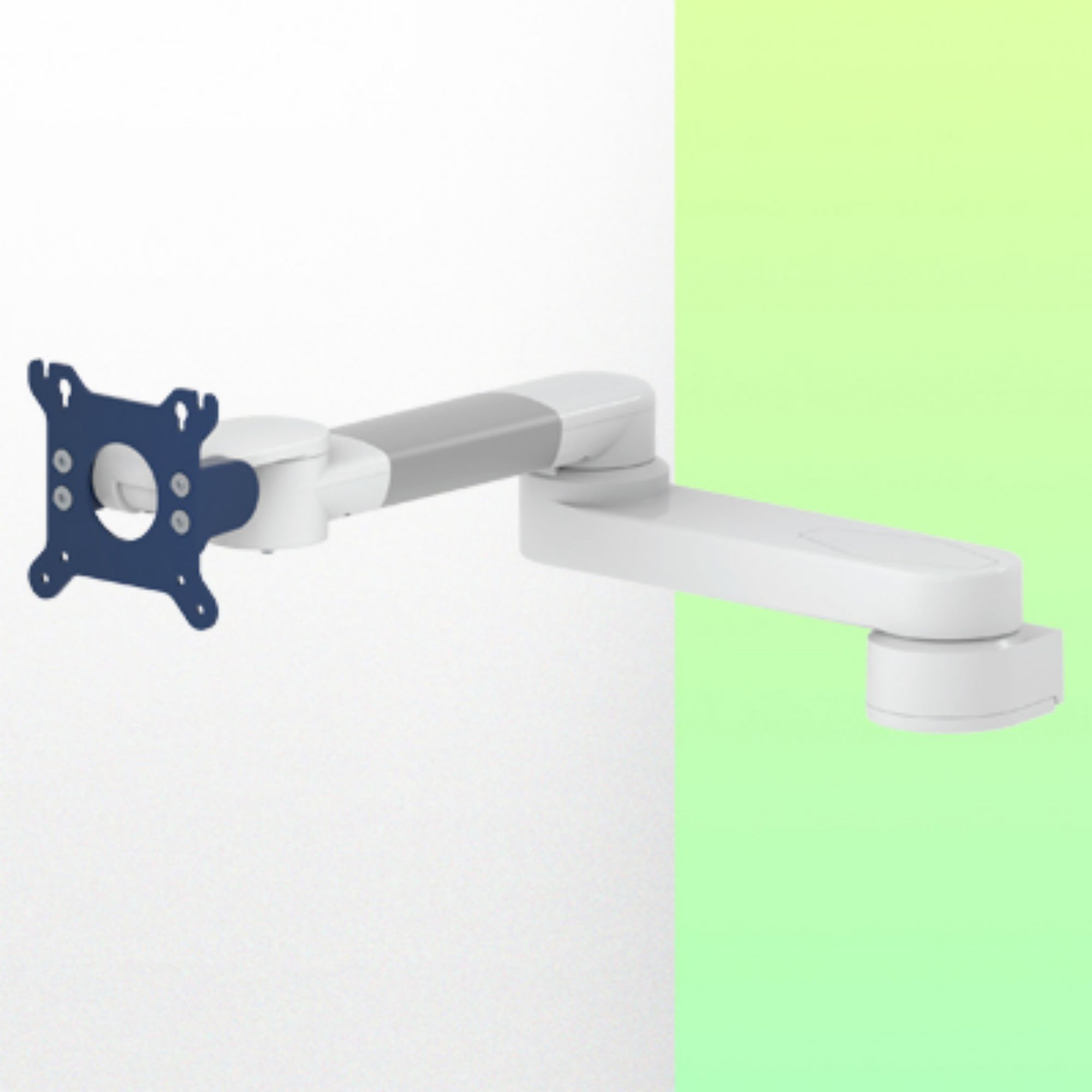

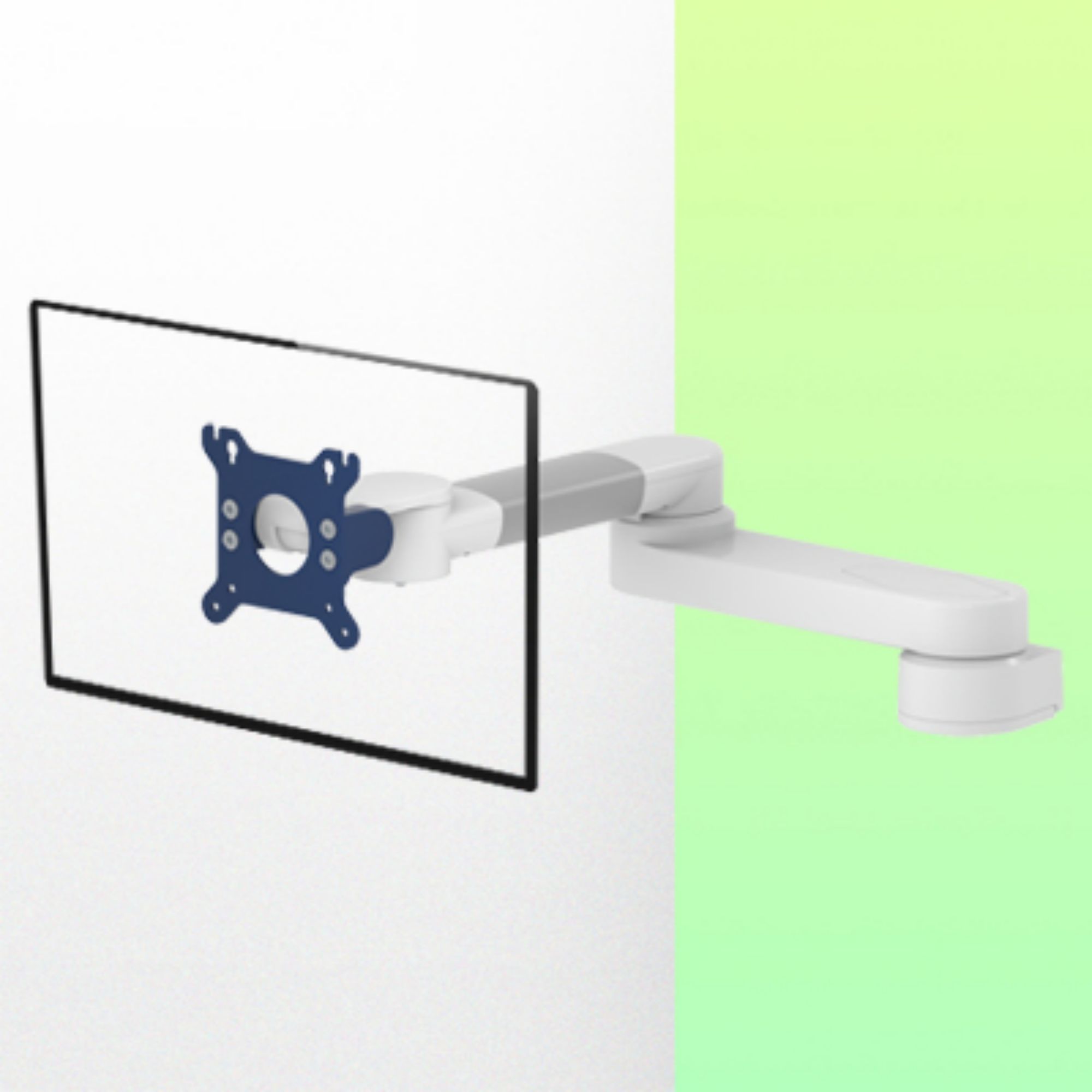

This 2 x 300 mm swivelling Horizontal Arm allows the LCD screen to be perfectly fixed, oriented and adjusted.

It is coated with an anti-microbial agent for hygiene and cleaning down to the last detail.

Its modern design has been specially designed for healthcare environments.

Technical specifications:

* Built-in cable feedthrough

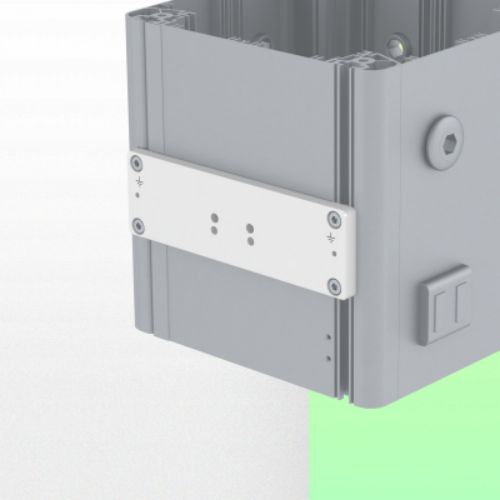

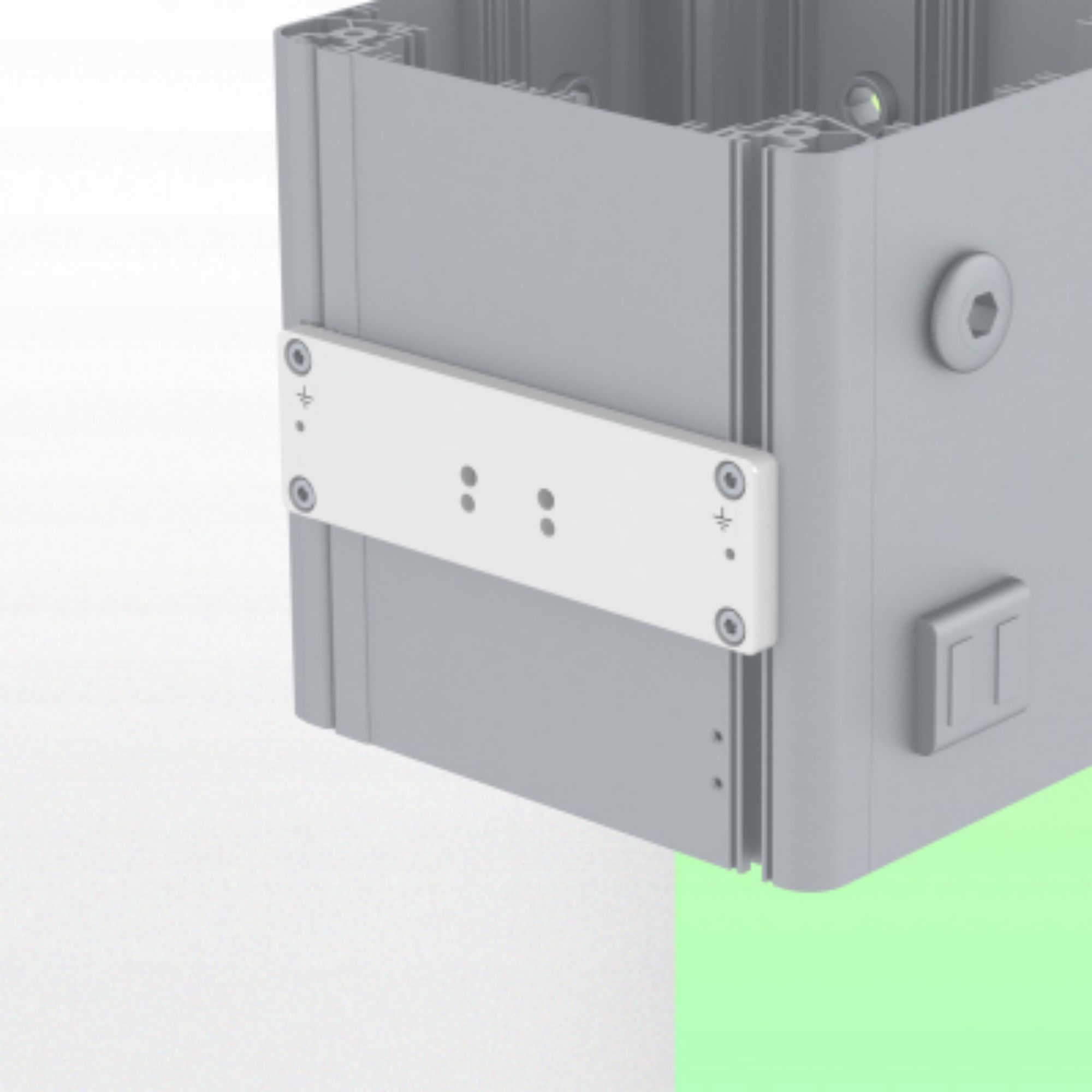

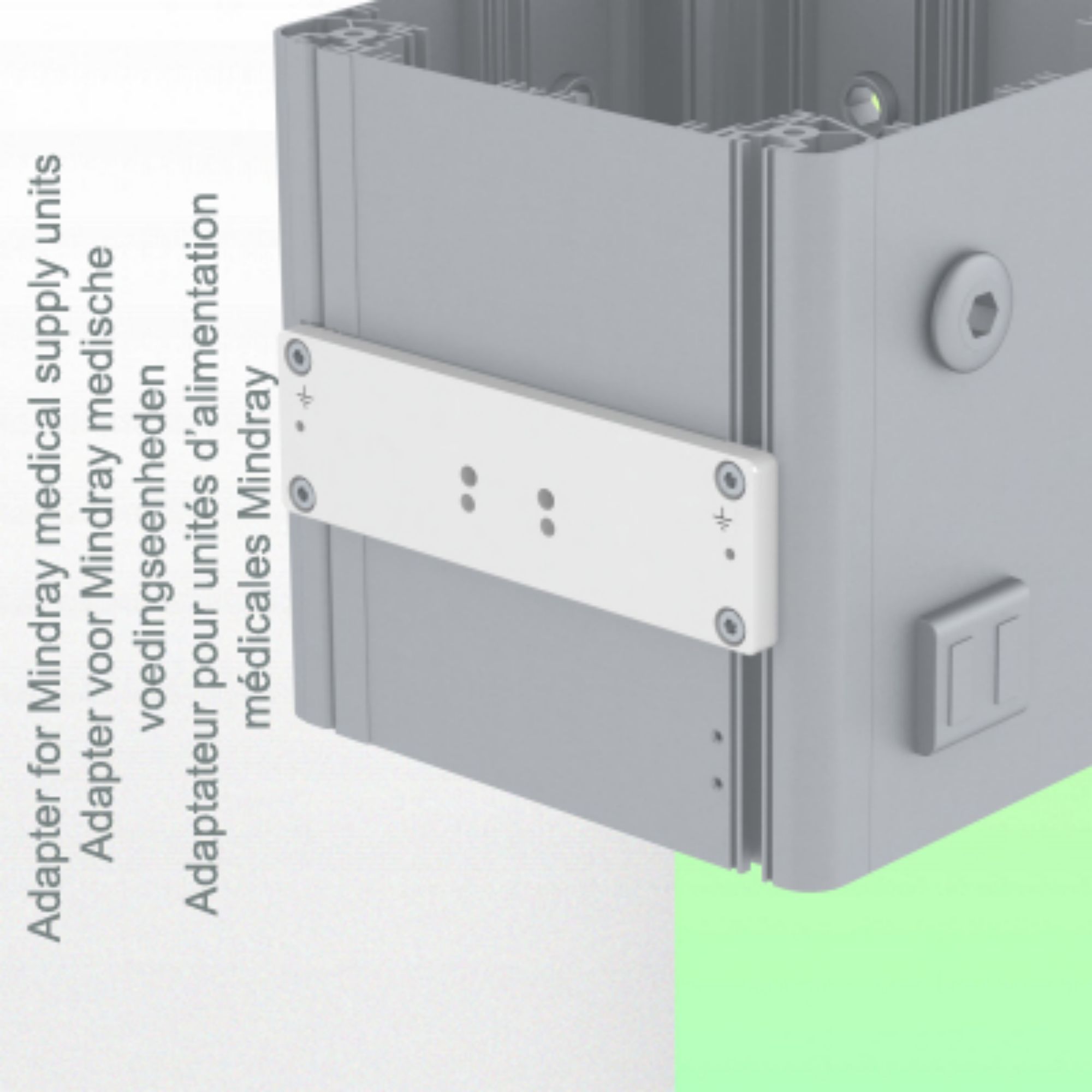

* Mounting on Mindray Medical Power Supply

* This medical arm simply attaches to the rail and then adjusts and pinches with the two clamps.

* It has no height adjustment.

* The head of this arm complies with the VESA MIS-D 75 mm and 100 mm screen mounting standard.

* Rotary head.

* Compatible with screens weighing up to 18 Kg.

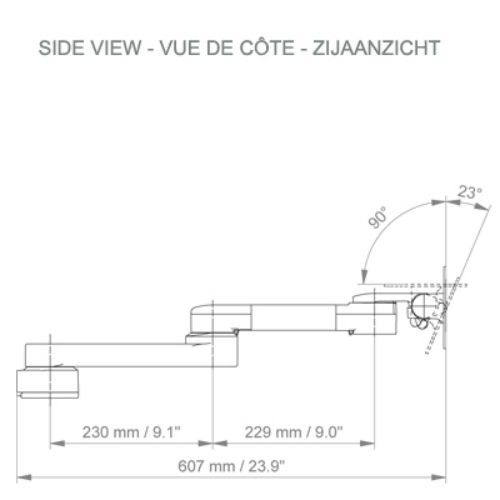

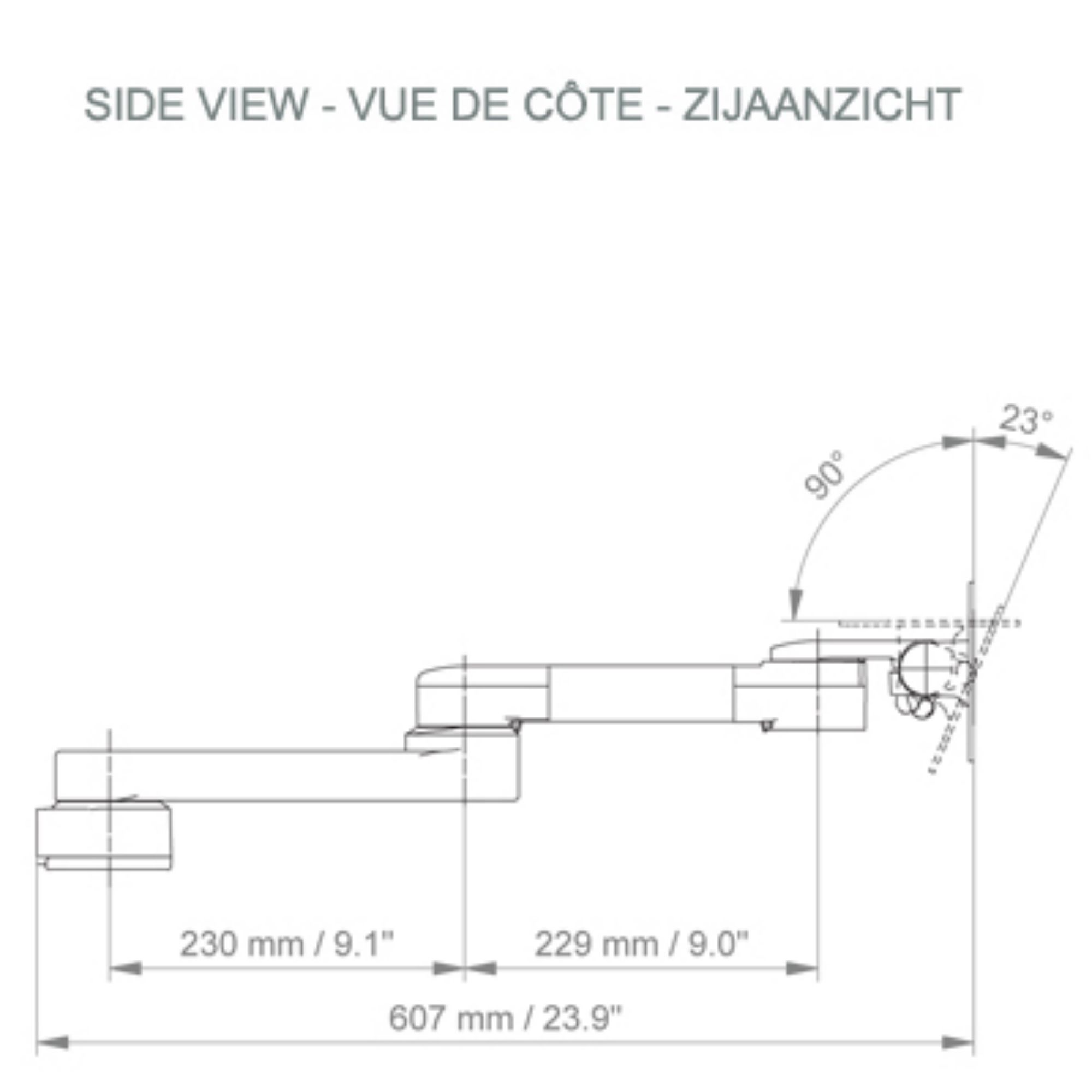

* Length 607 mm

* Screen tilt: 50° downwards and 100° upwards

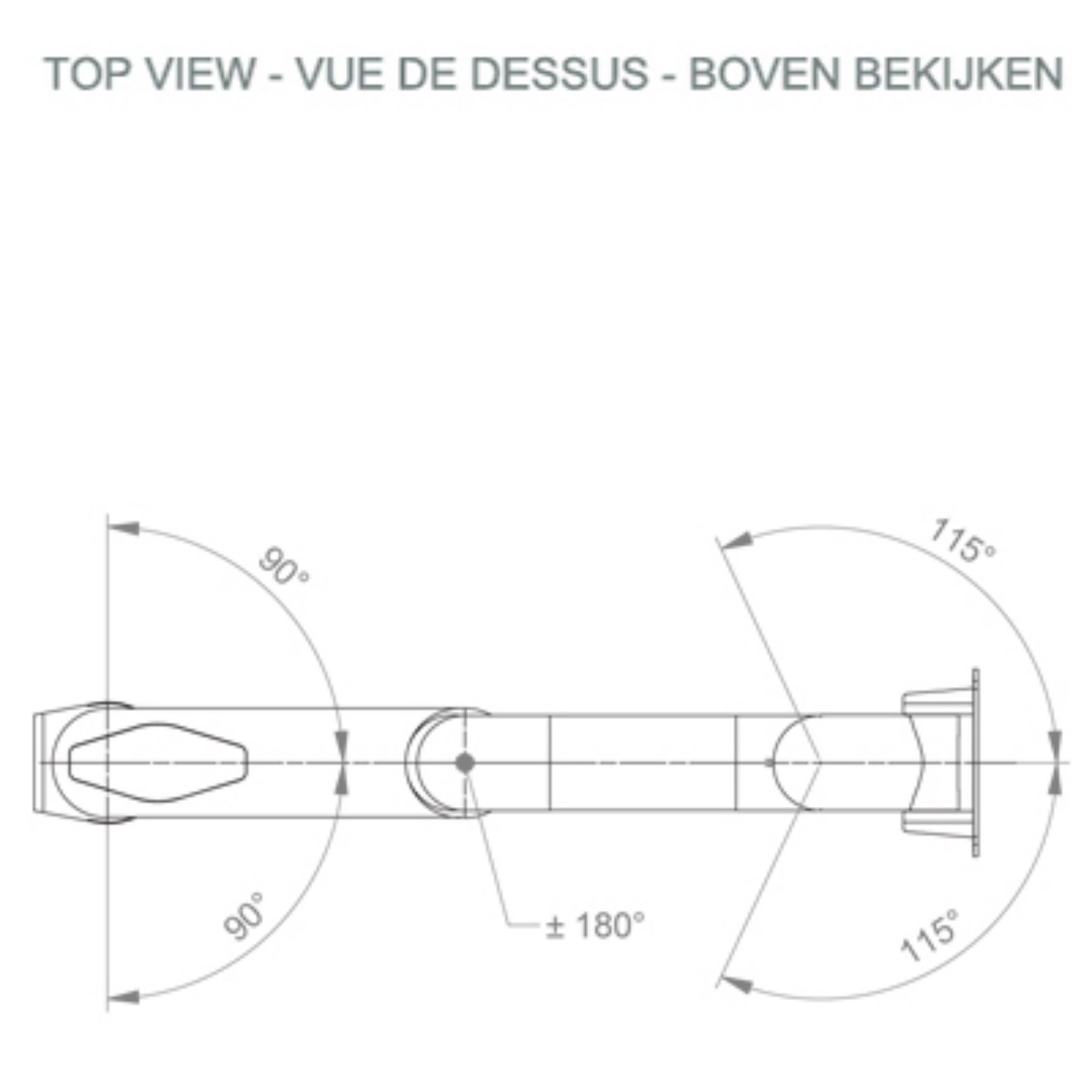

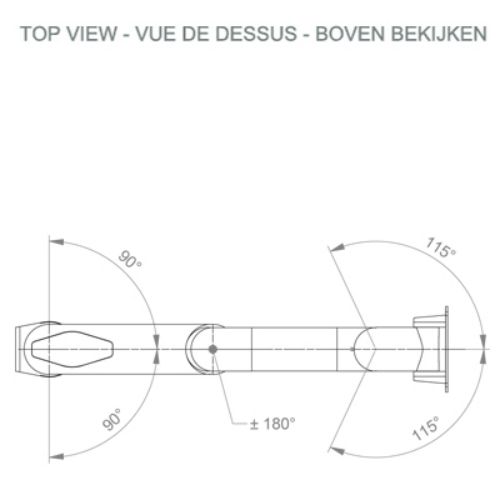

* Screen rotation: 110° right, 110° left.

* All our medical arms are CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC compliant.

* Color RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
