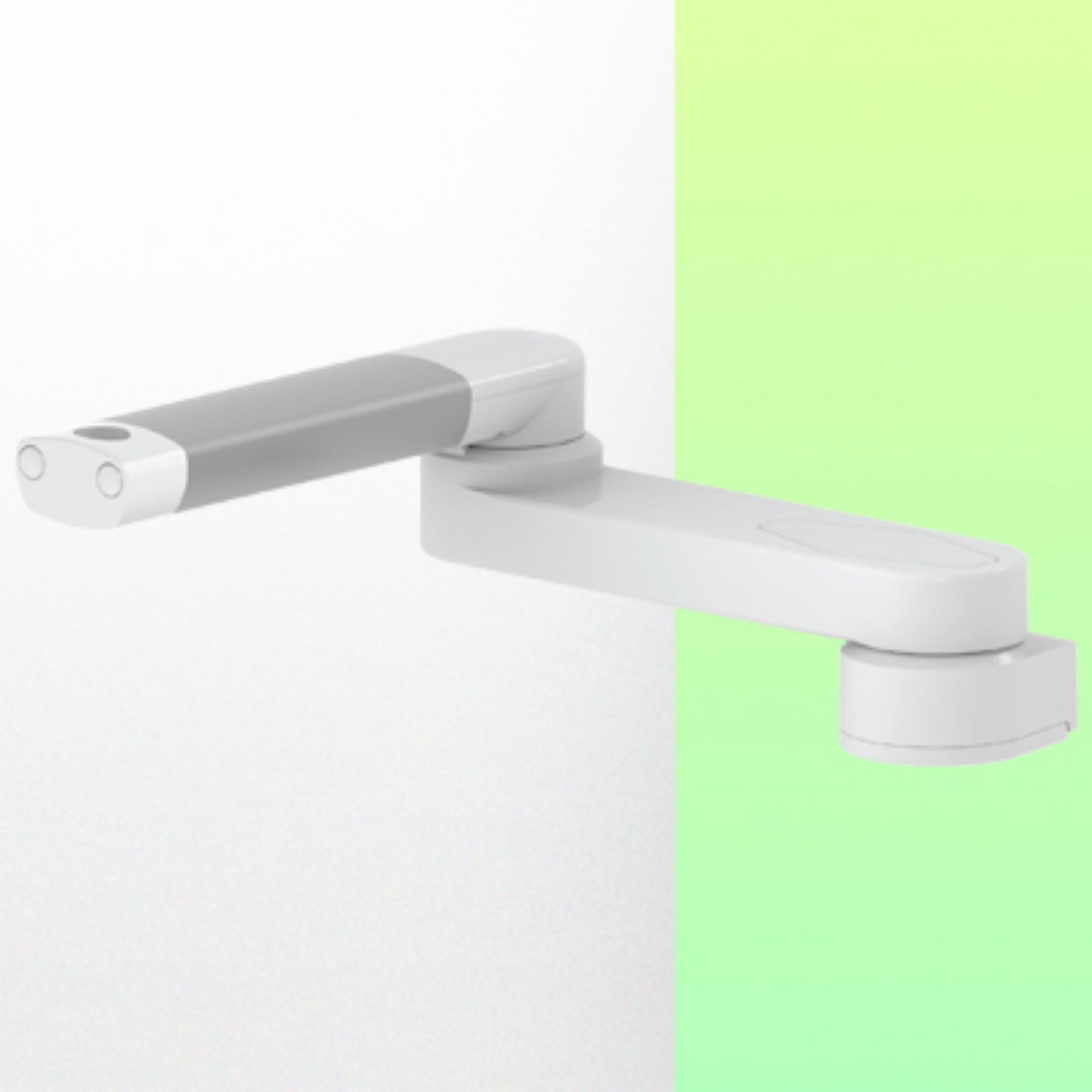

Double Medical swivel arm for infusion pump stand 554 mm,

For mounting on vertical standard rail 10 x 25 mm

Product number: WM 227.135 - Double Medical swivel arm for infusion pump stand 554 mm,

For mounting on vertical standard rail 10 x 25 mm

Product sheet PDF

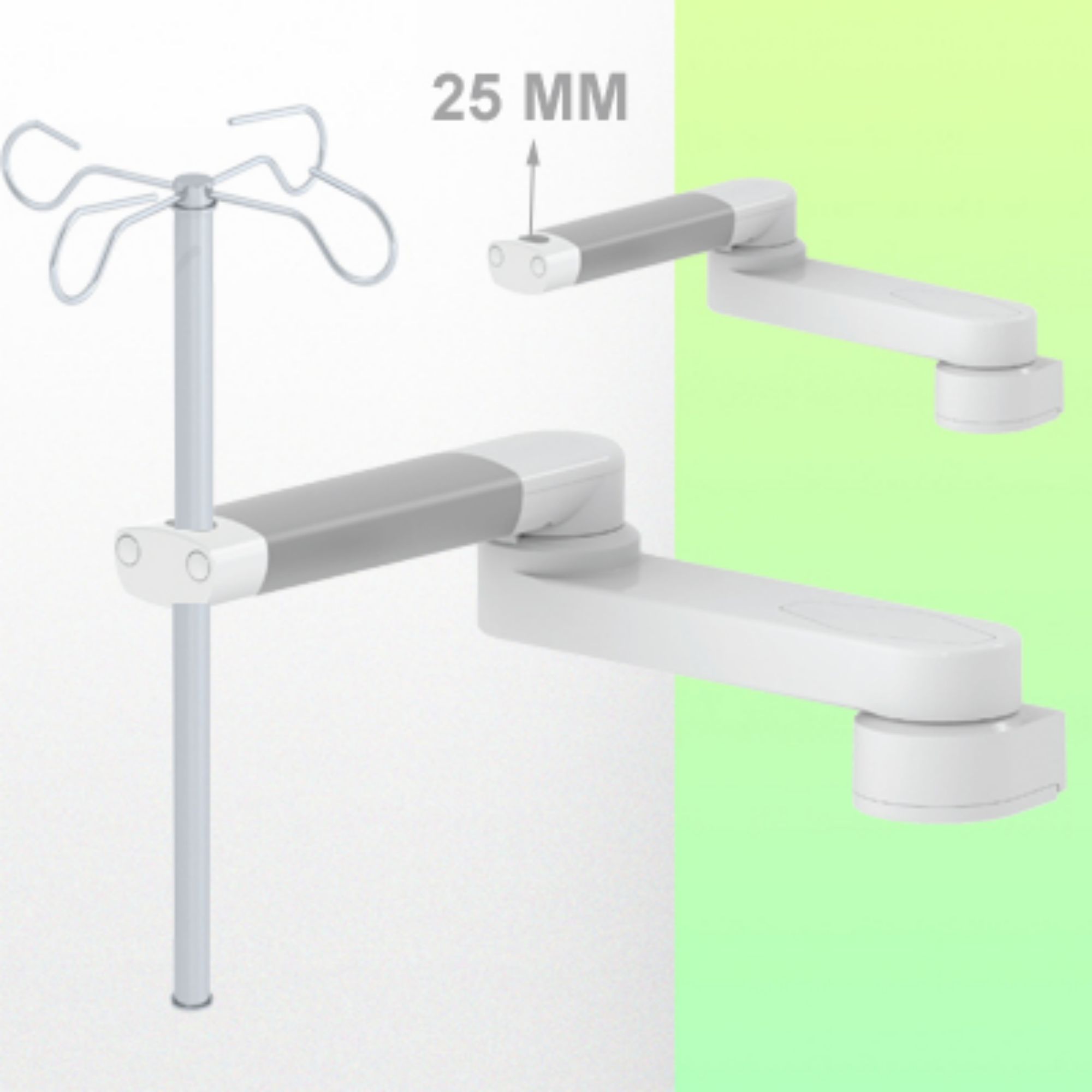

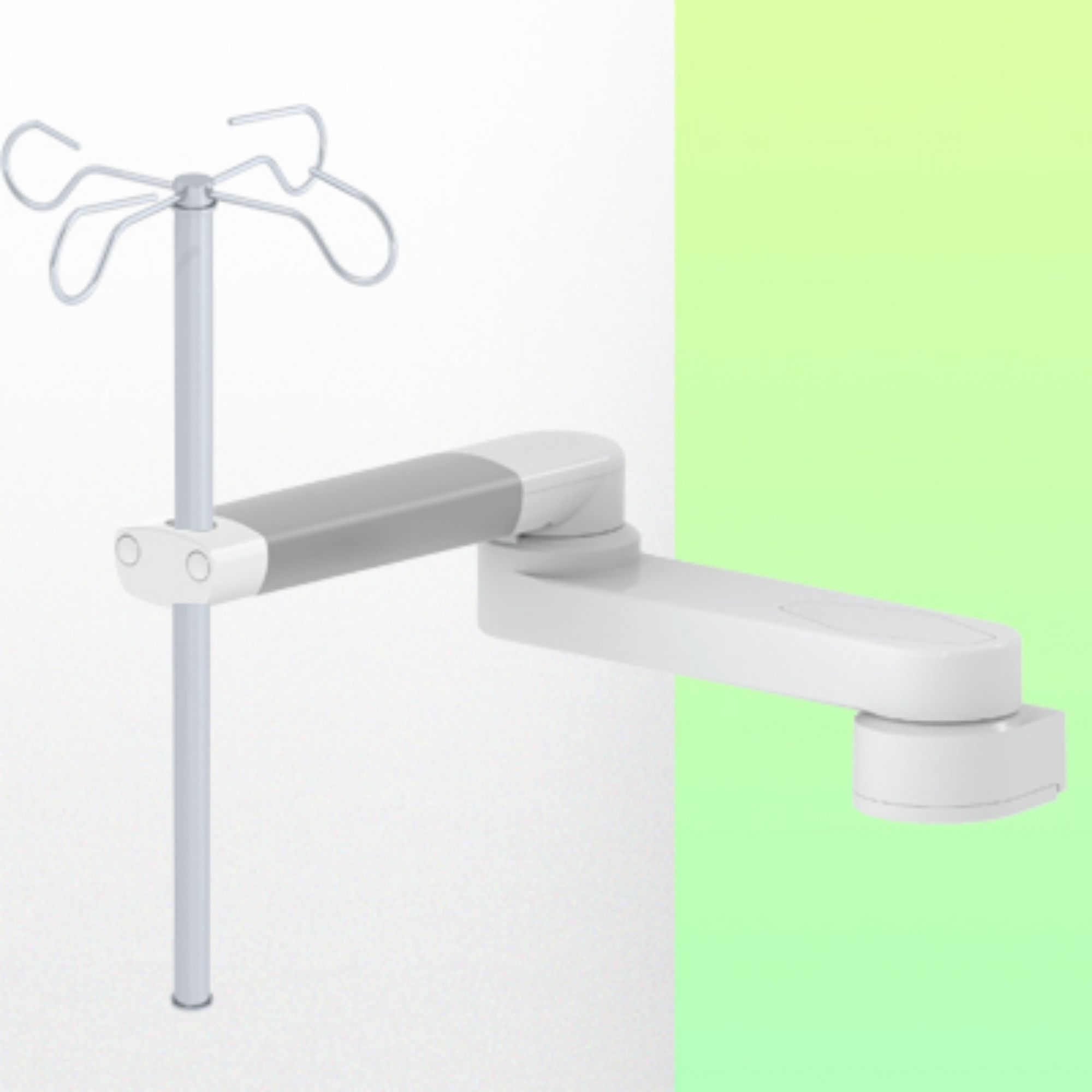

This double swivel arm for infusion pump stands is standard with a length of 554 mm and allows a 25 mm diameter infusion pole or a pole with the same diameter to be fixed, oriented and adjusted perfectly.

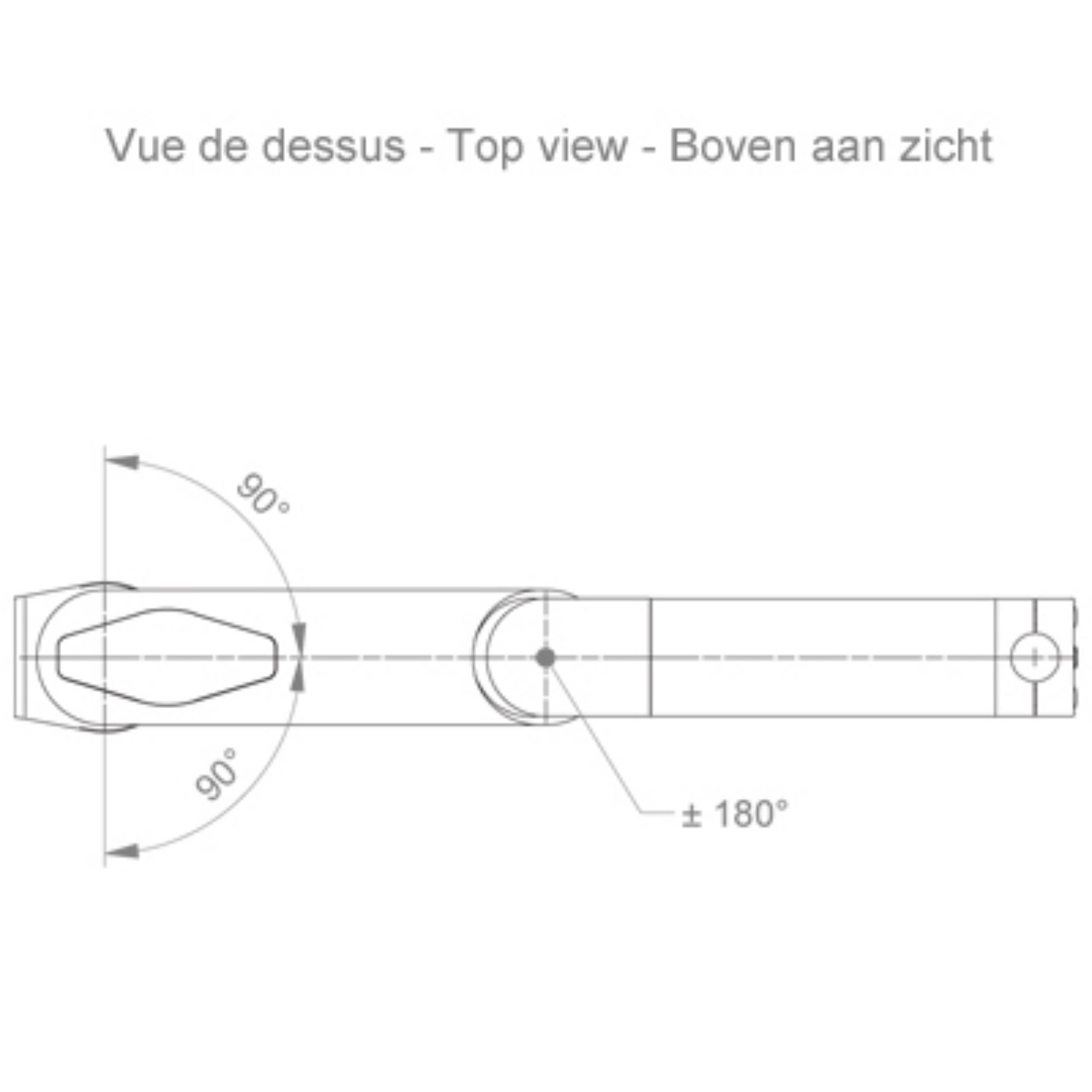

Rotation axis from the fixing: 90° to the right and 90° to the left.

Central axis between the two arms 180° rotation

Maximum supported weight 23 kg including infusion pump.

Technical data:

* Rotation of the arm from the fixation: 90° to the right, 90° to the left.

* Central axis between the two arms 180° rotation

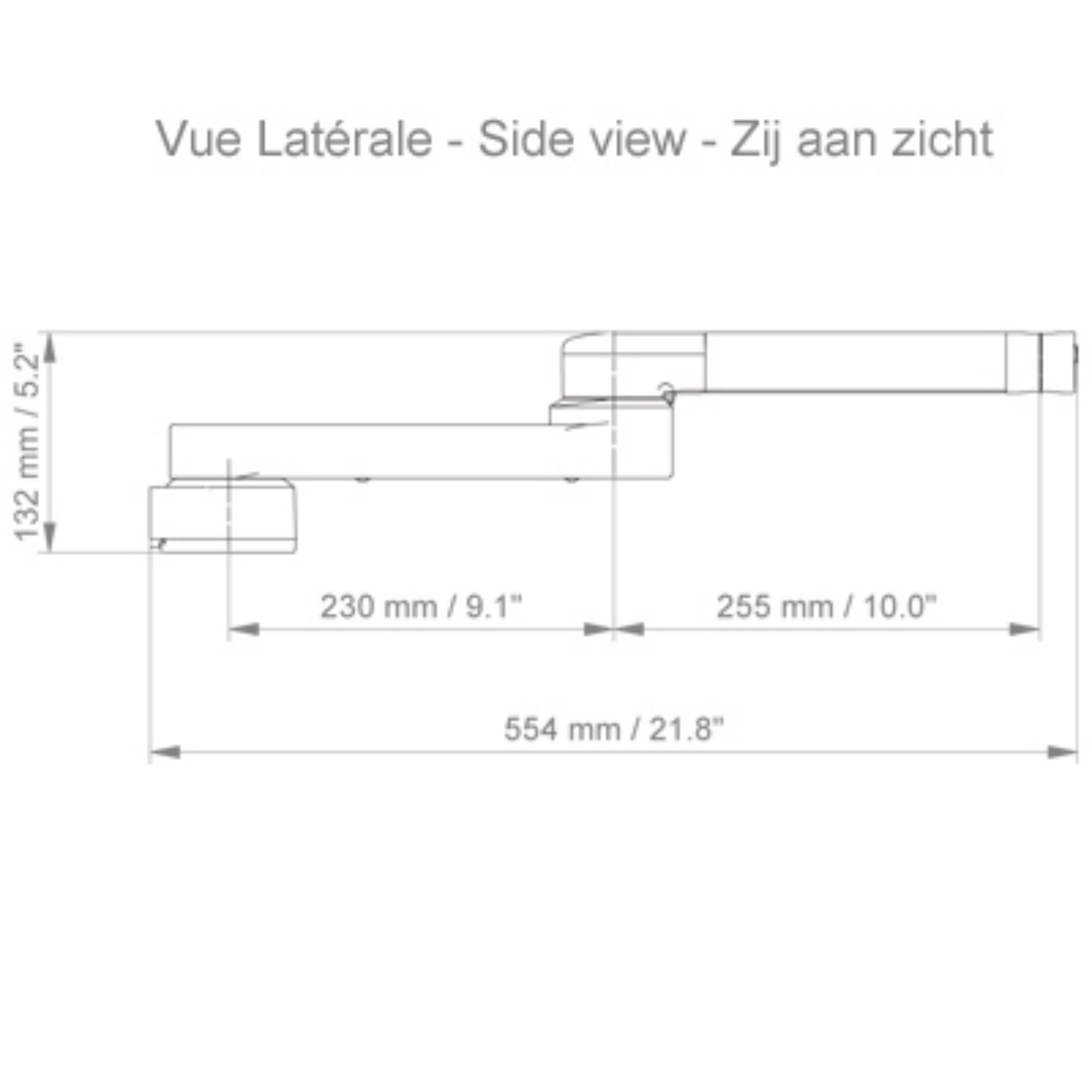

* Length of the double arm 554 mm

* Weight supported by the arm: 23 Kg

* Color RAL 9002 grey-white

* All our medical arms are in conformity: CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

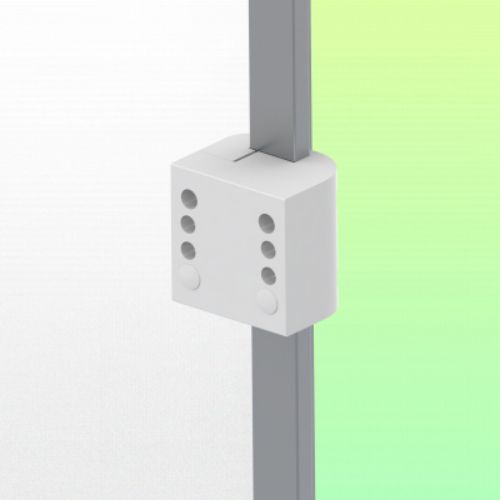

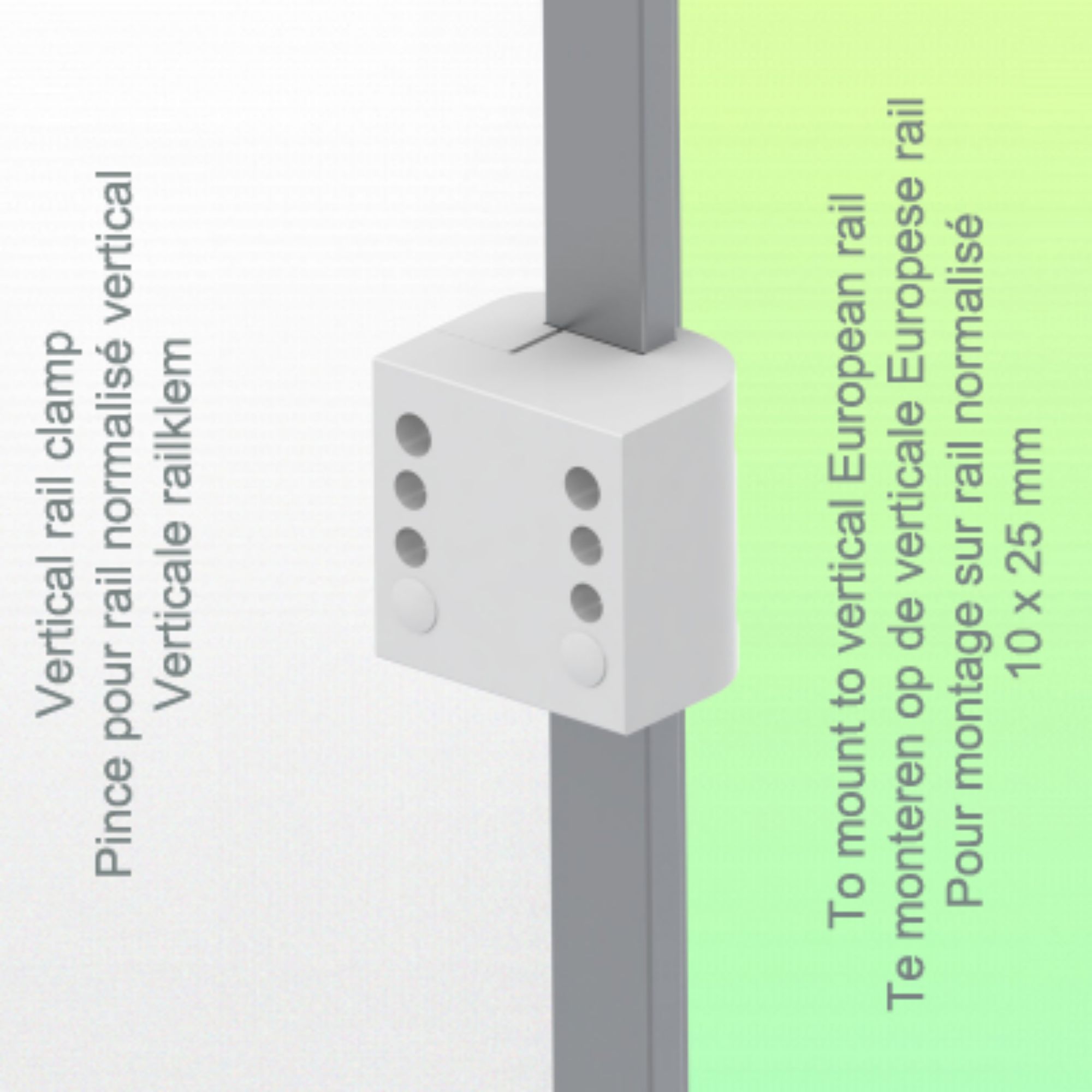

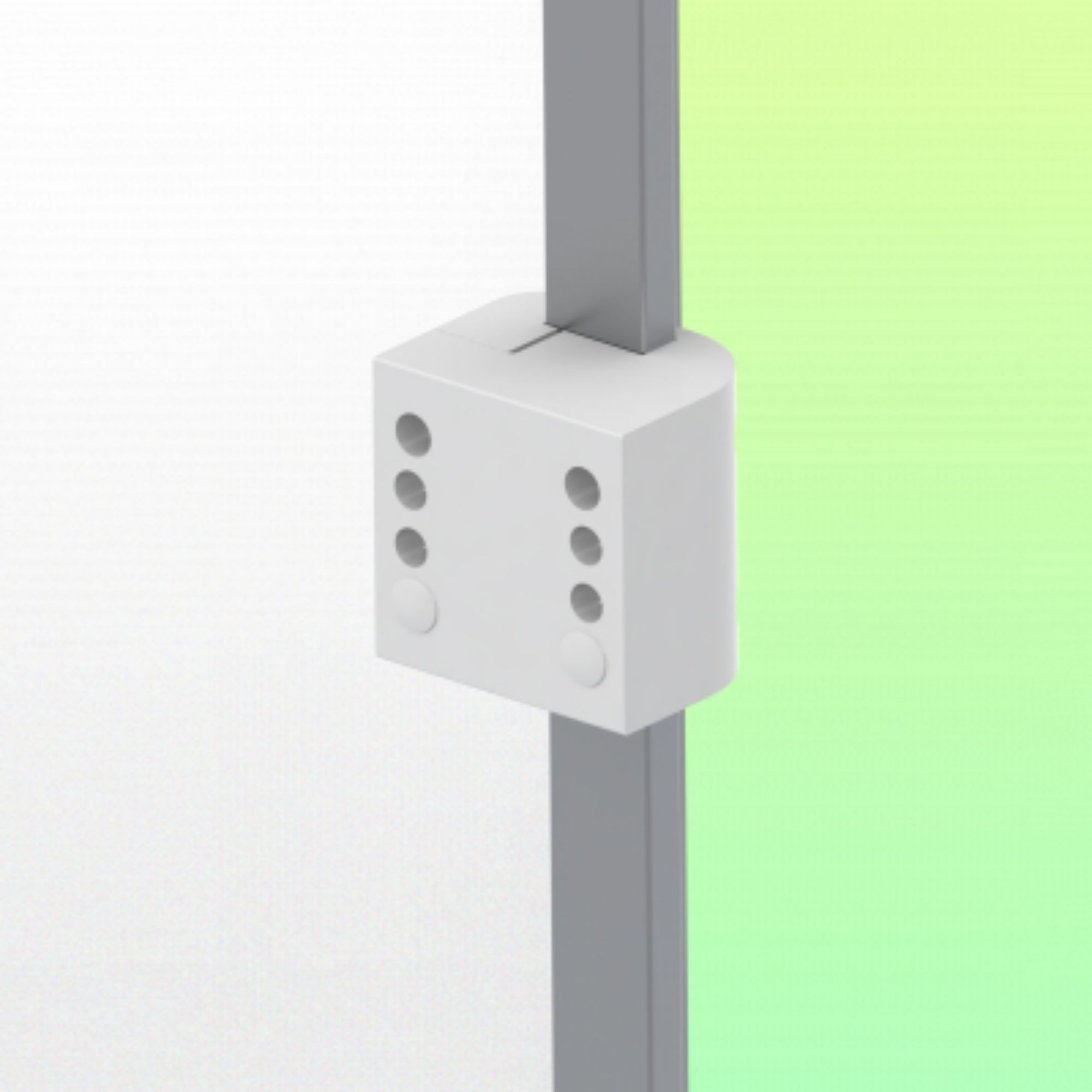

* Fixed clamp for vertical standard rail included in this configuration

* Fixing head for 25 mm diameter tube

* Warranty: 5 years

( See options for infusion pump stand in the accessories section)
