618 mm Horizontal Medical Double Arm for monitoring 5'' plate adaptation and Nihon Kohden Interface,

wall mounting on vertical sliding rail.

Compatible with Nihon Kohden monitoring.

Product number: WM 250.102NK - 618 mm Horizontal Medical Double Arm for monitoring 5'' plate adaptation and Nihon Kohden Interface,

wall mounting on vertical sliding rail.

Compatible with Nihon Kohden monitoring.

Product sheet PDF

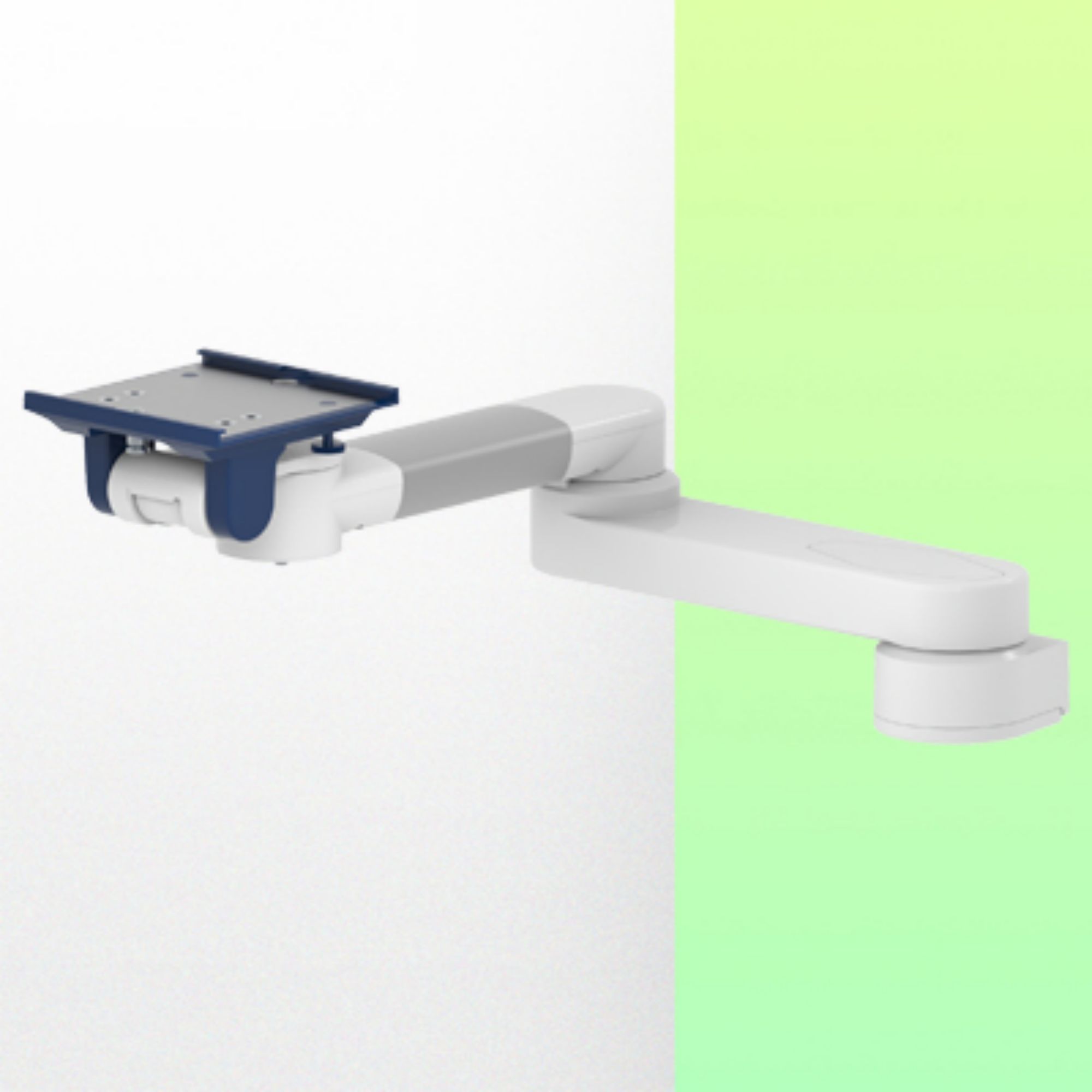

This 618 mm Horizontal Double Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

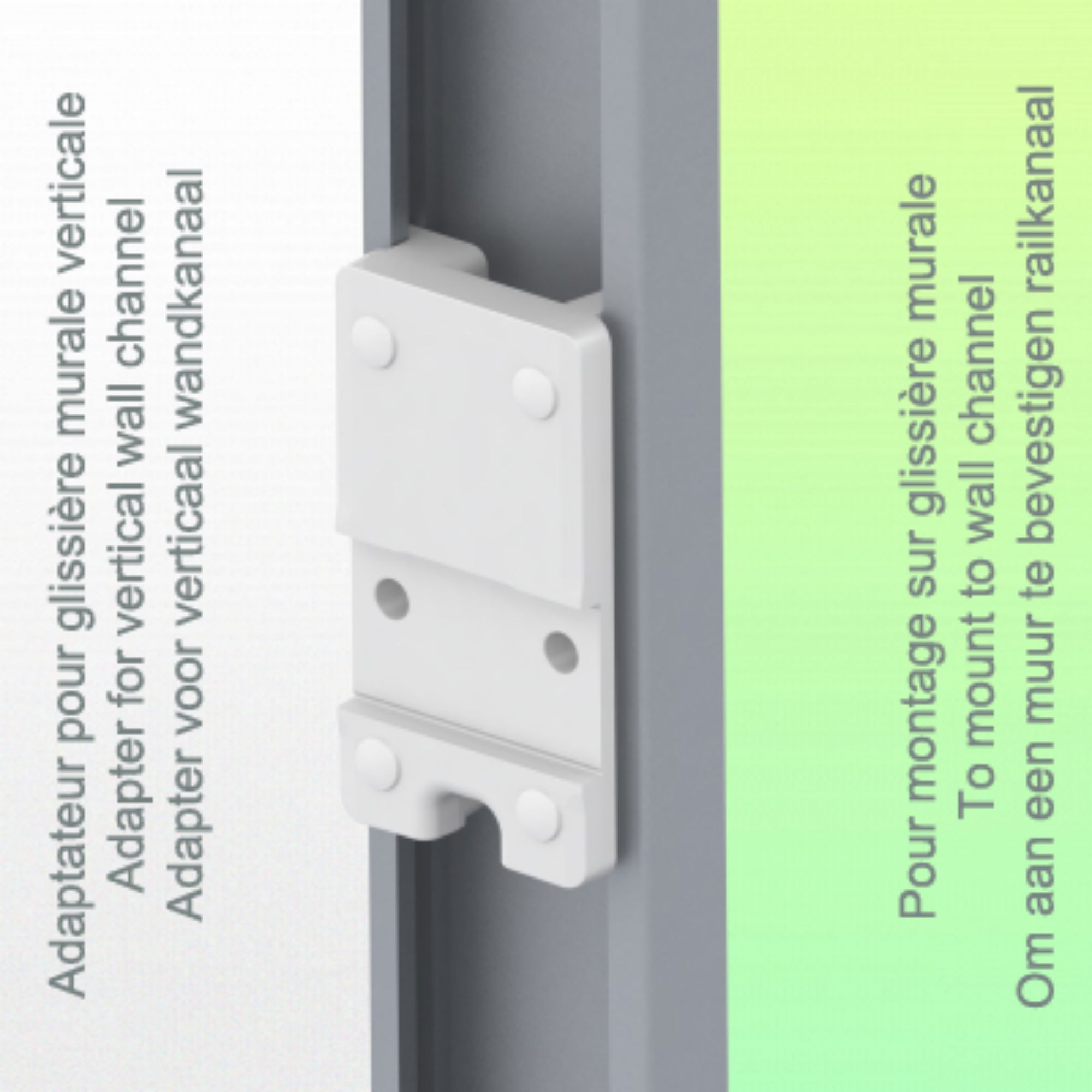

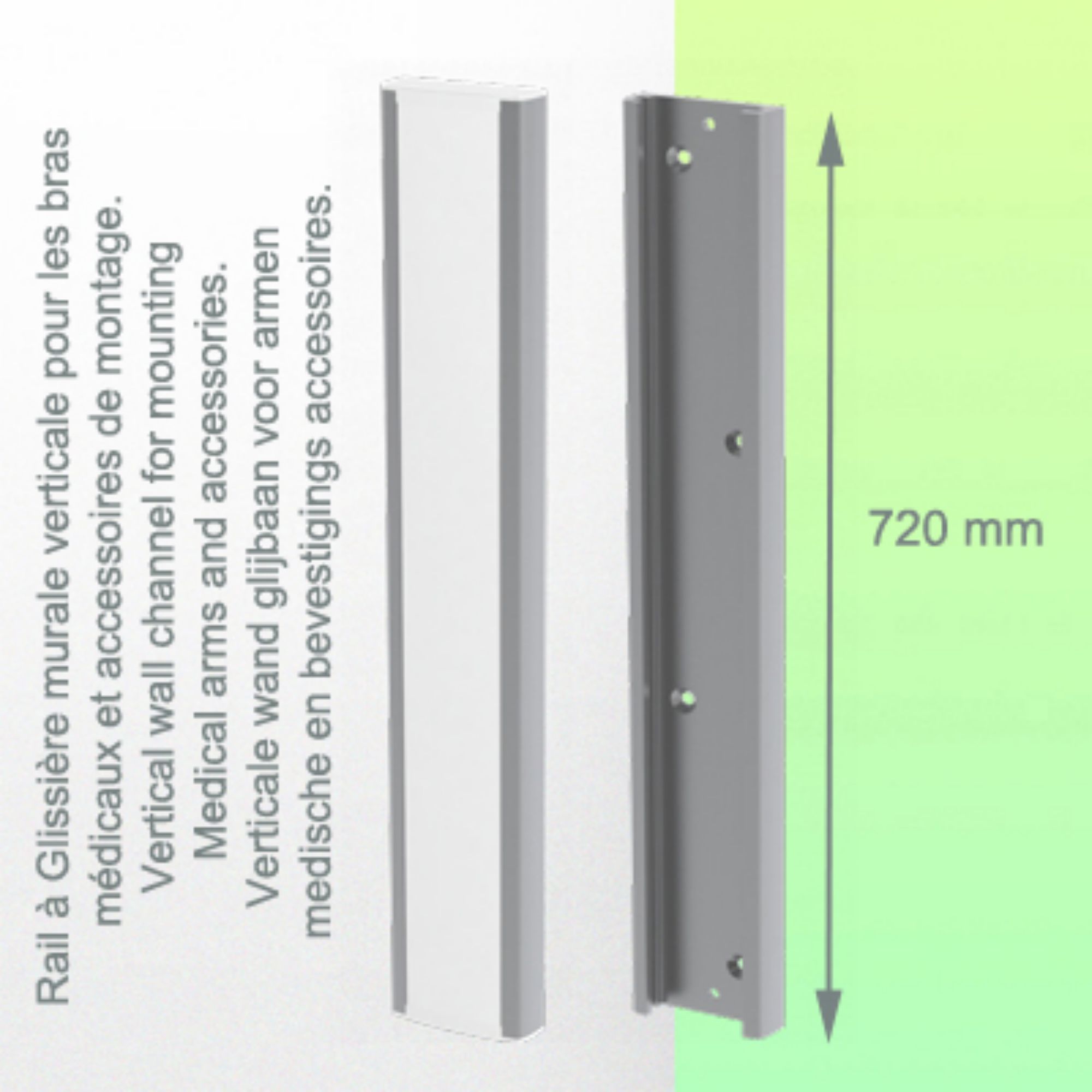

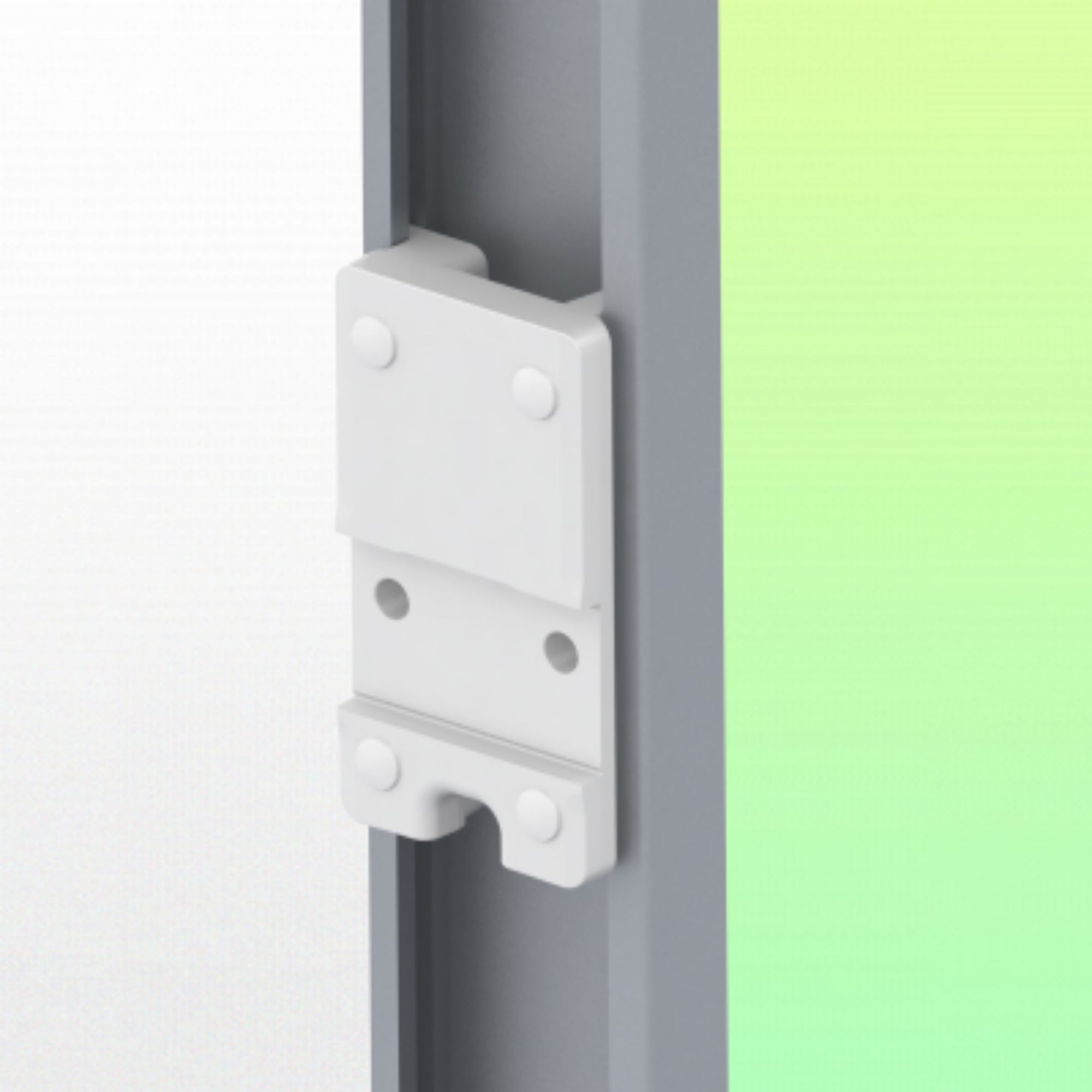

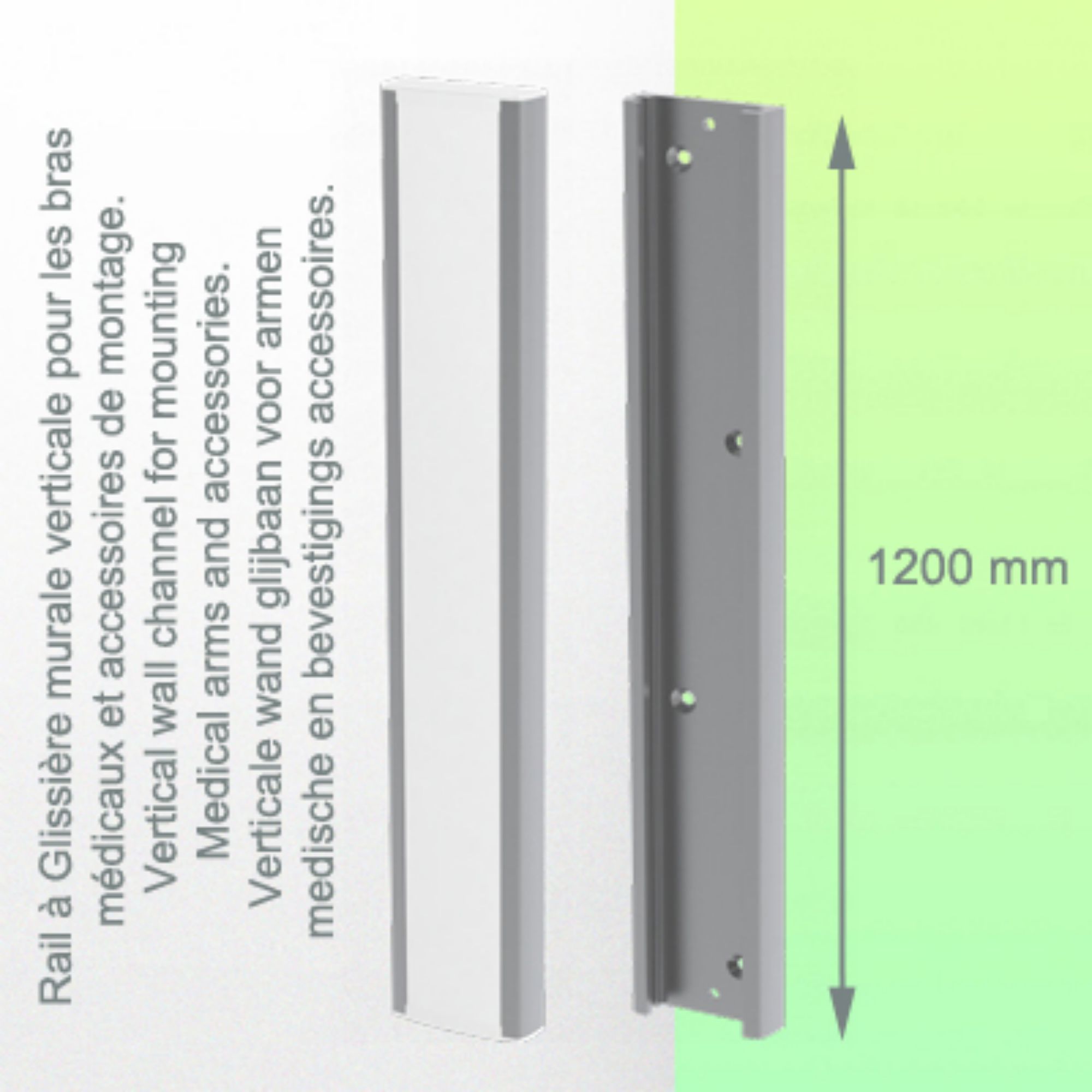

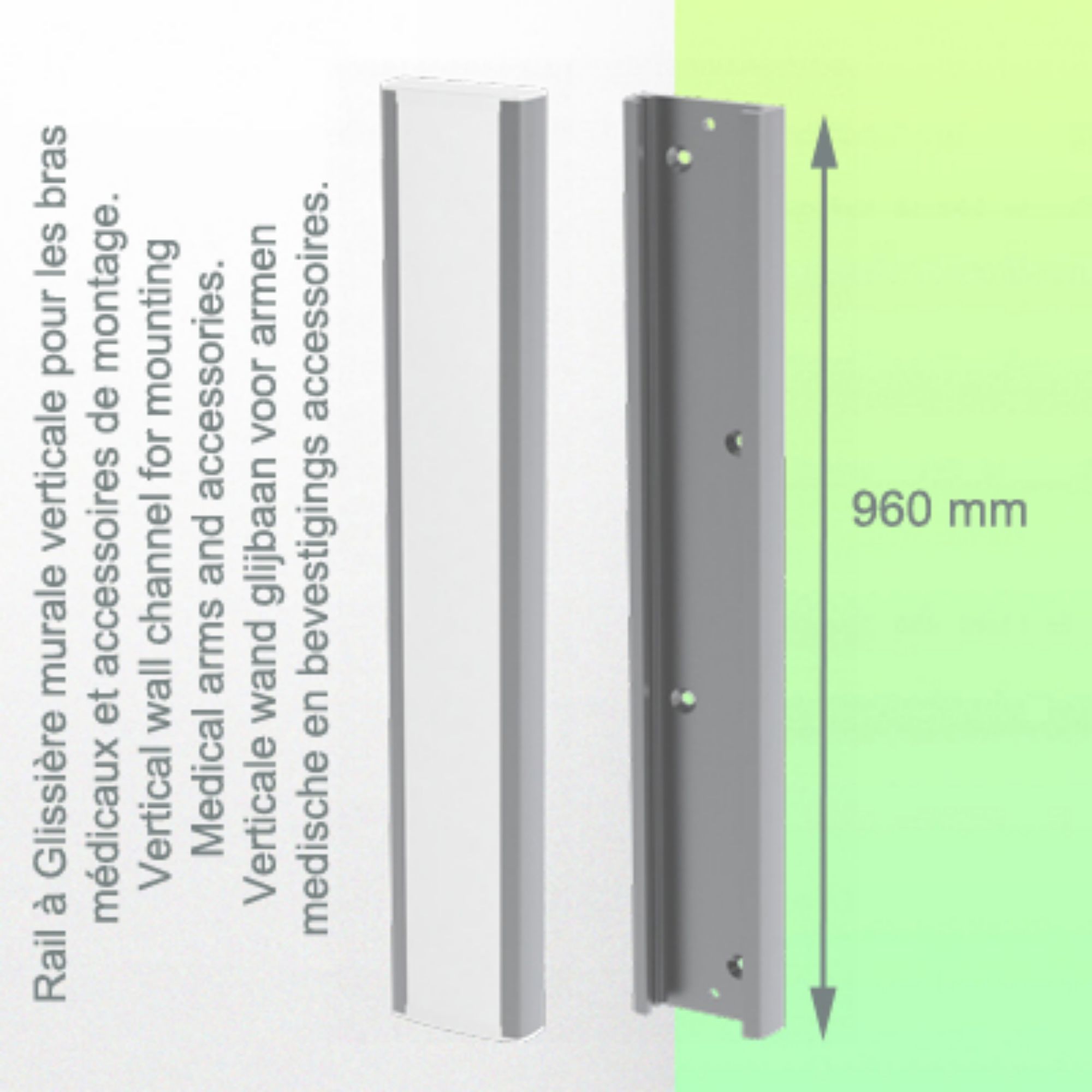

* For heavy-duty applications * Mounting on optional Vertical Wall Slide Rail, of which several lengths are available (480 mm - 720 mm - 960 mm - 1200 mm).

* These wall rails can be easily cut to size.

* All cables also run through the wall rail.

* This 615 mm Horizontal Arm simply slides into the wall rail, then adjusts to the required height and locks in place.

* It has no height adjustment

* The head of this arm complies with the mounting standard for Nihon Kohden monitors weighing up to 18 Kg.

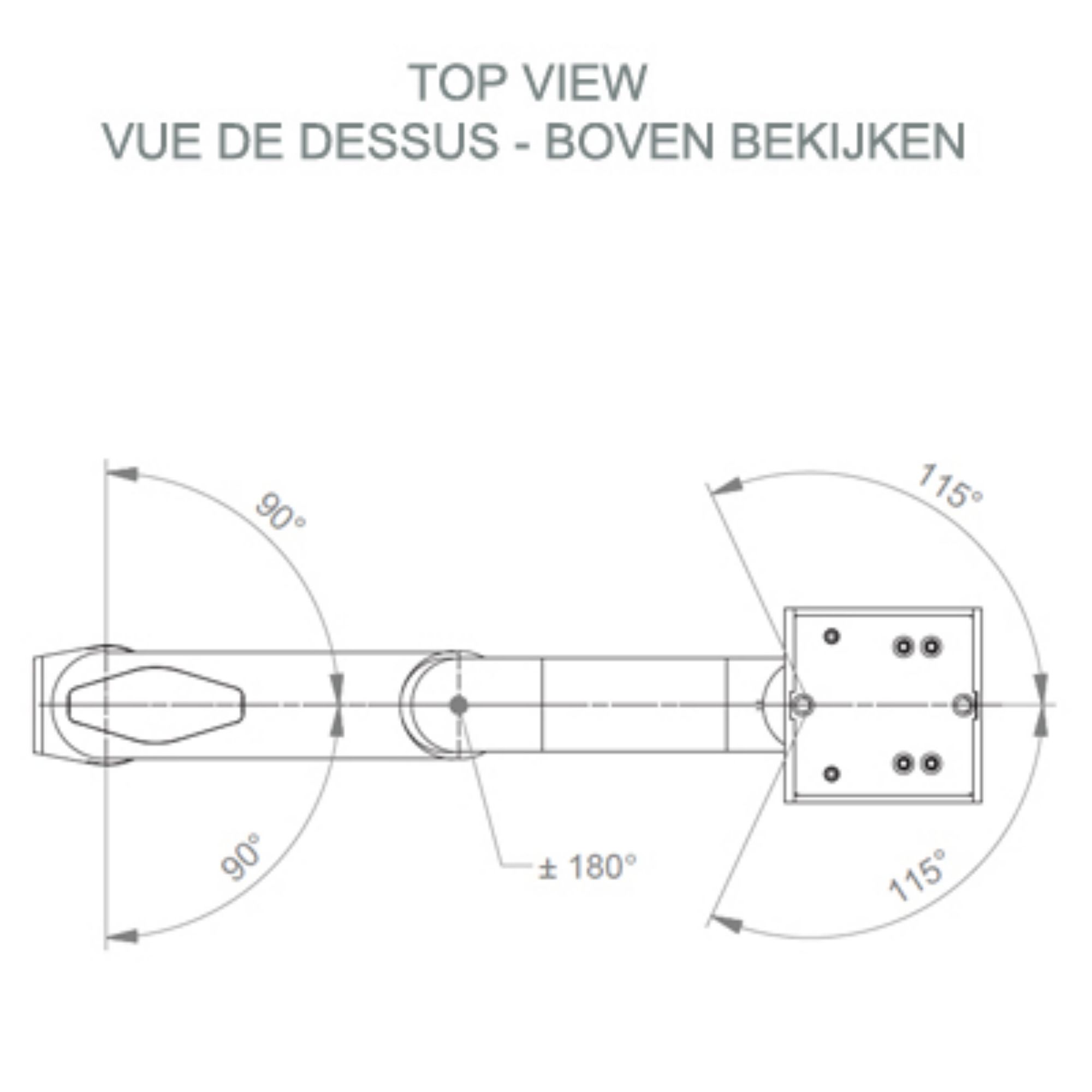

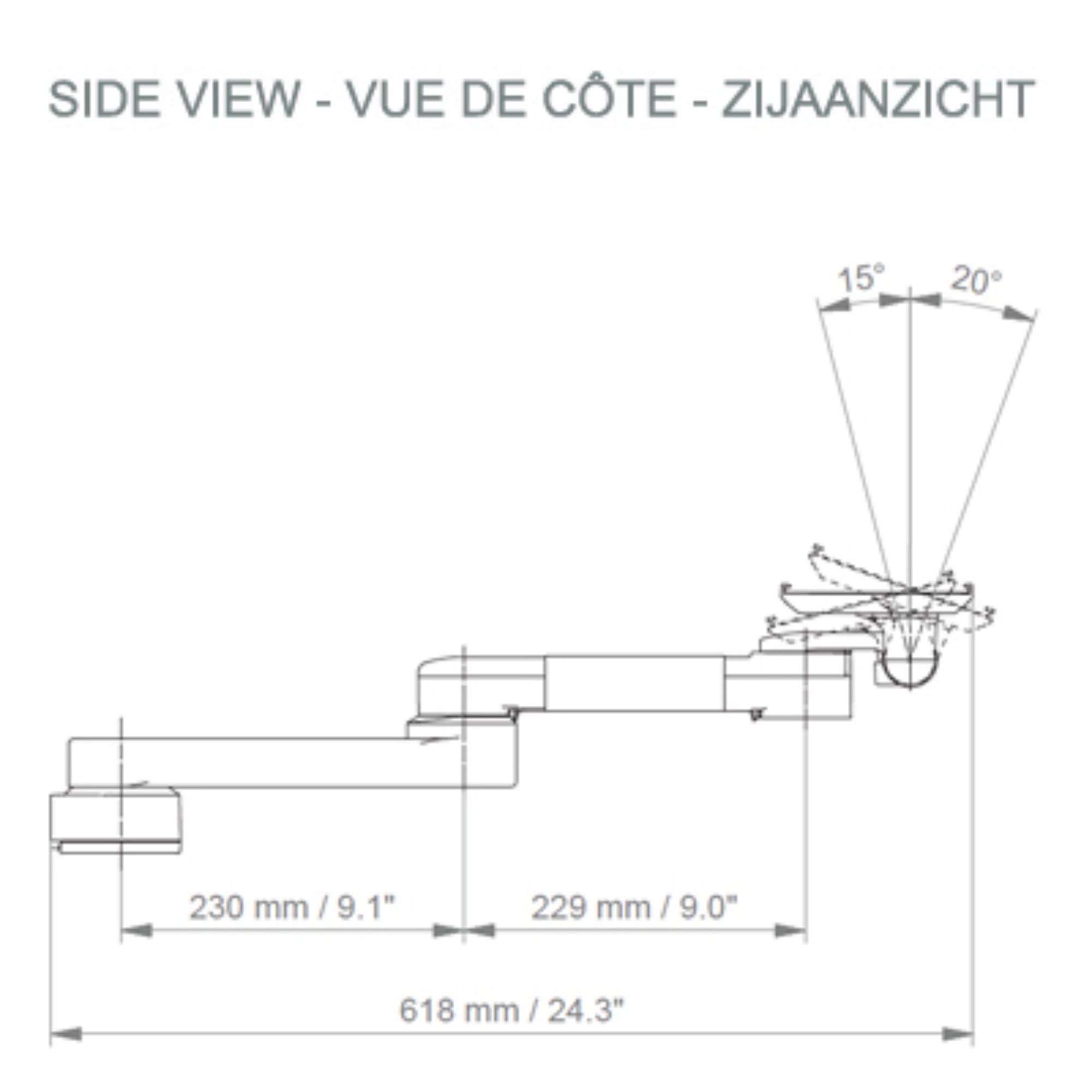

* Monitor tilt: 20° down, 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

* Total length: 618 mm Color: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
