Horizontal 615 mm double medical arm for monitoring.

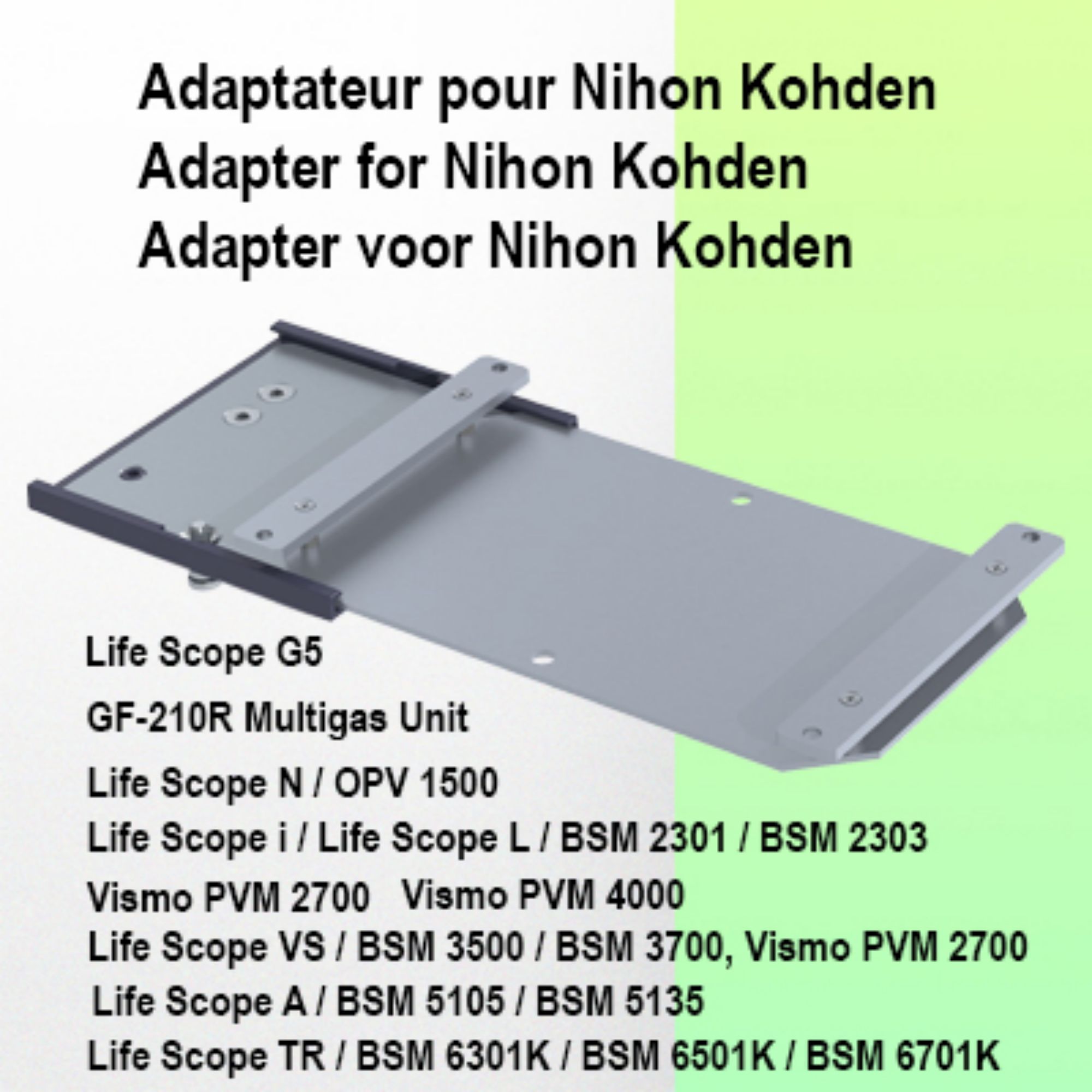

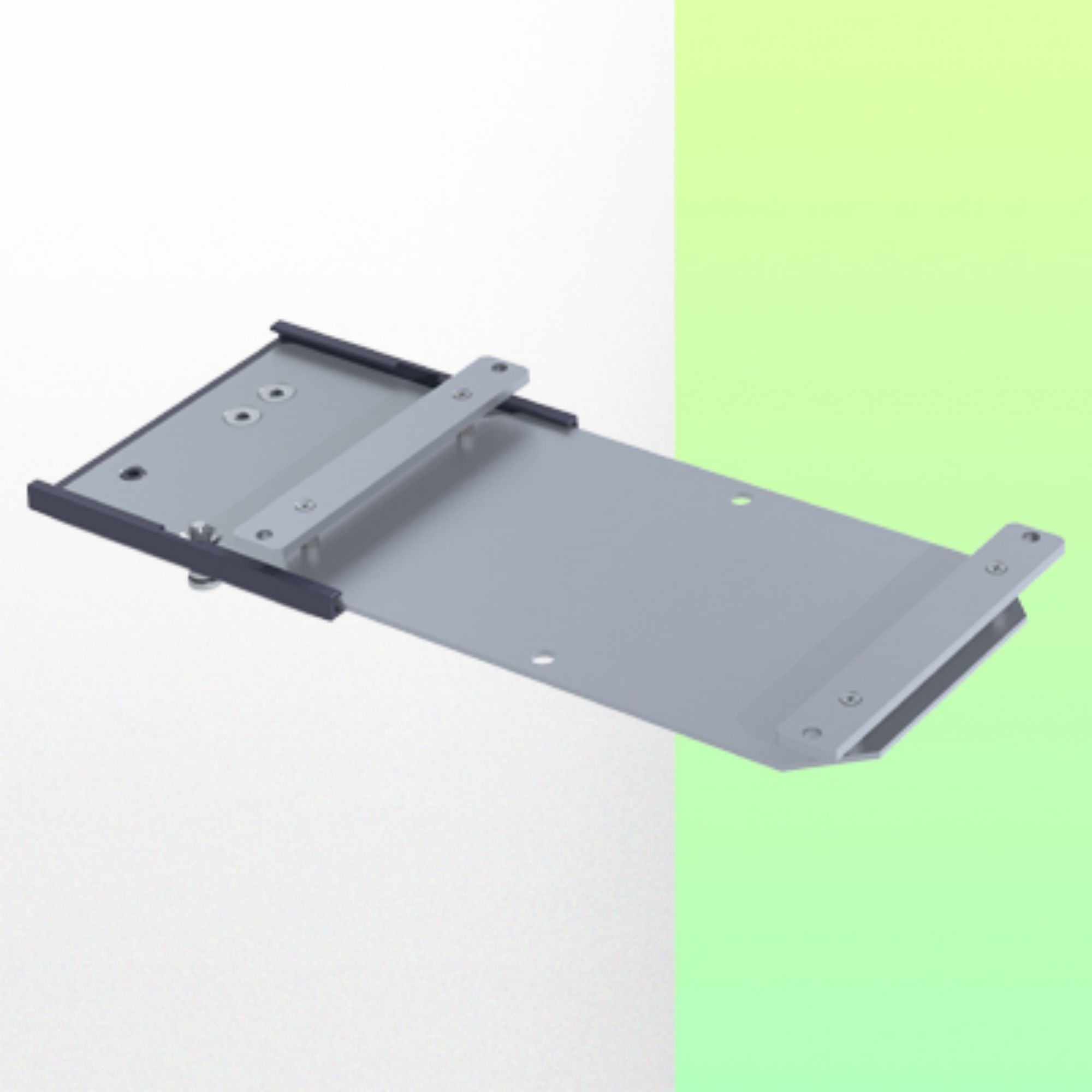

Adaptation to 5'' plate and Nihon Kohden Interface,

mounted on 25, 35 and 38 mm diameter fixed pole.

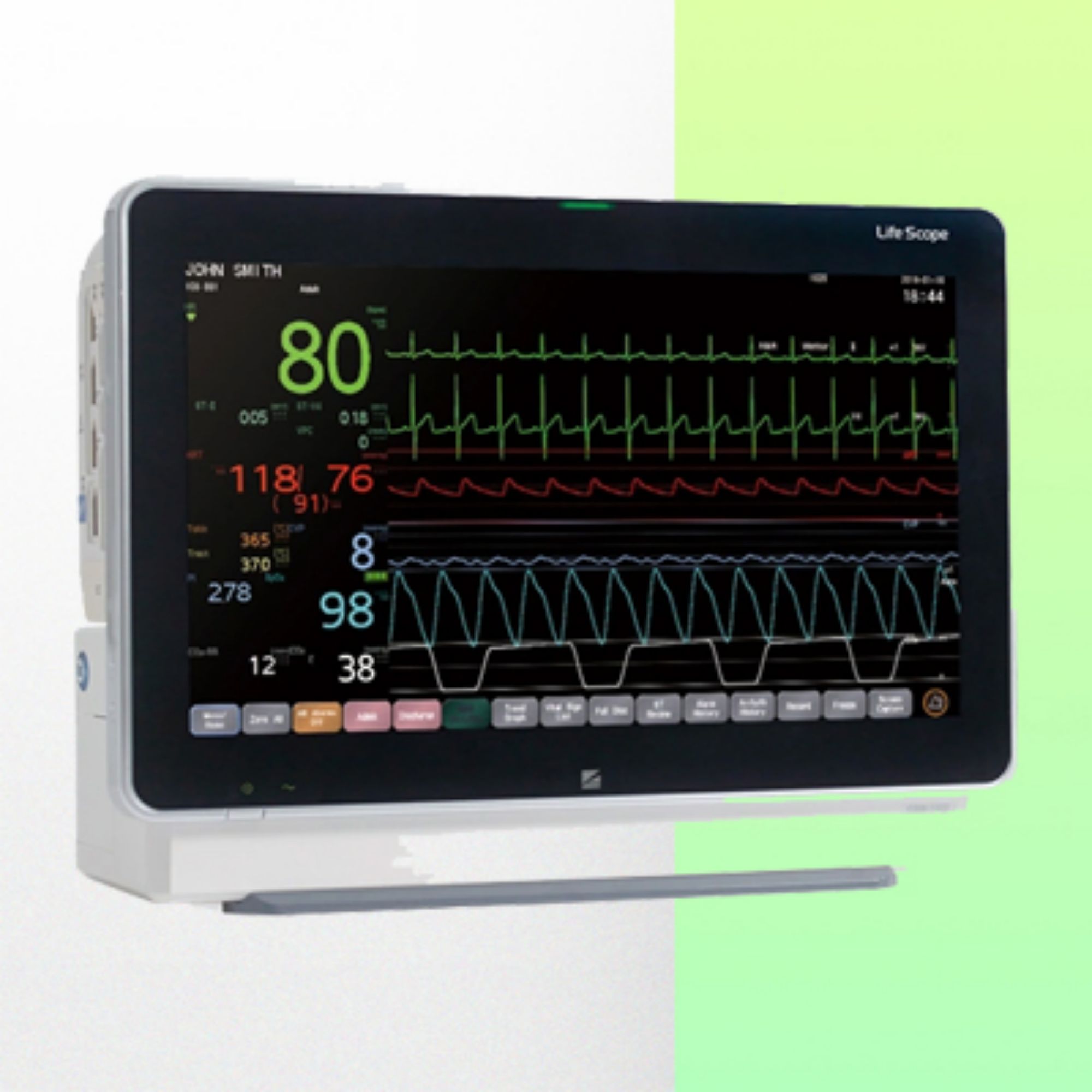

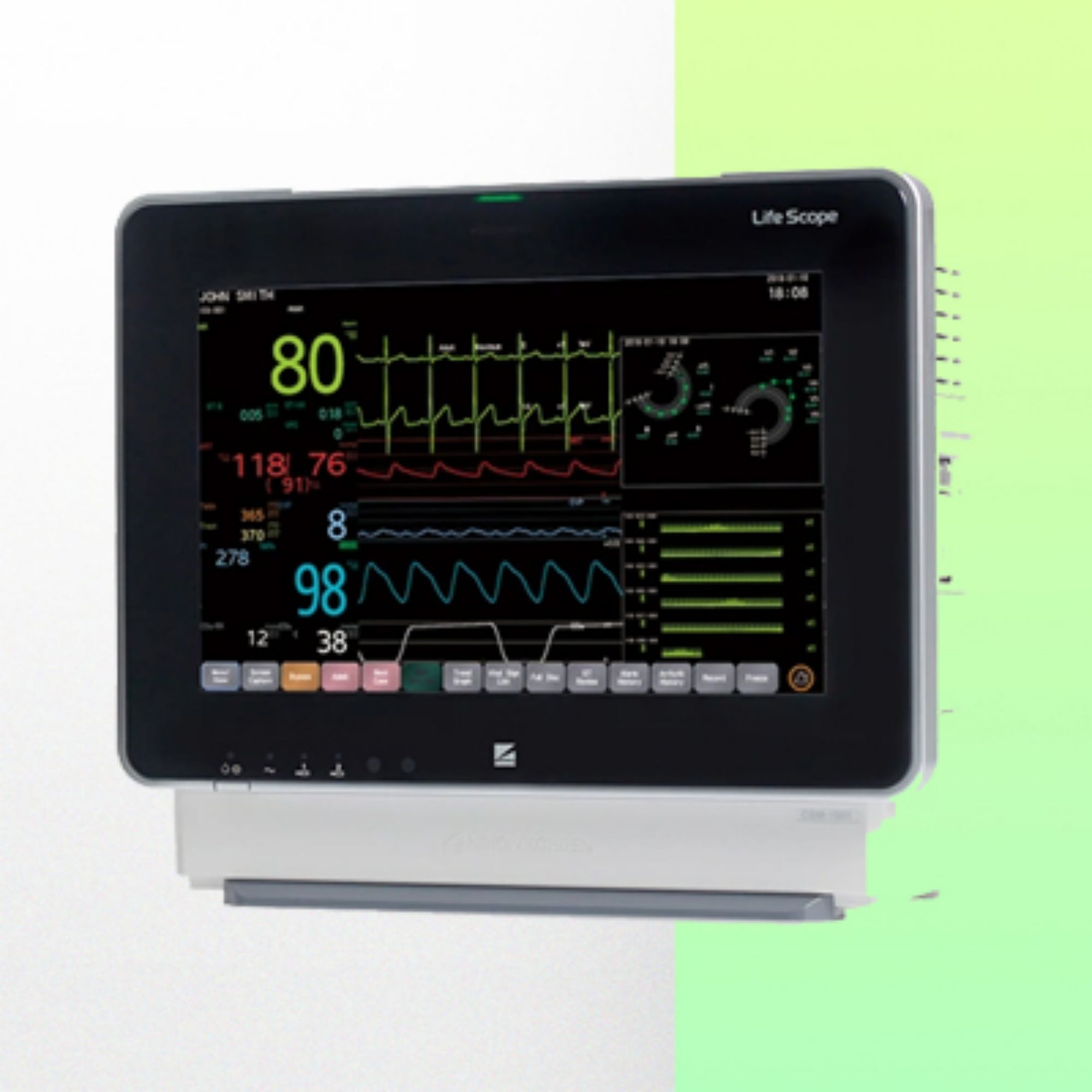

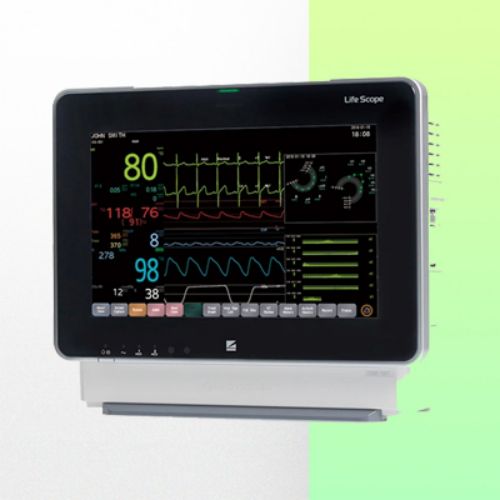

Nihon Kohden Monitoring compatible.

Product number: WM 250.116NK - Horizontal 615 mm double medical arm for monitoring.

Adaptation to 5'' plate and Nihon Kohden Interface,

mounted on 25, 35 and 38 mm diameter fixed pole.

Nihon Kohden Monitoring compatible.

Product sheet PDF

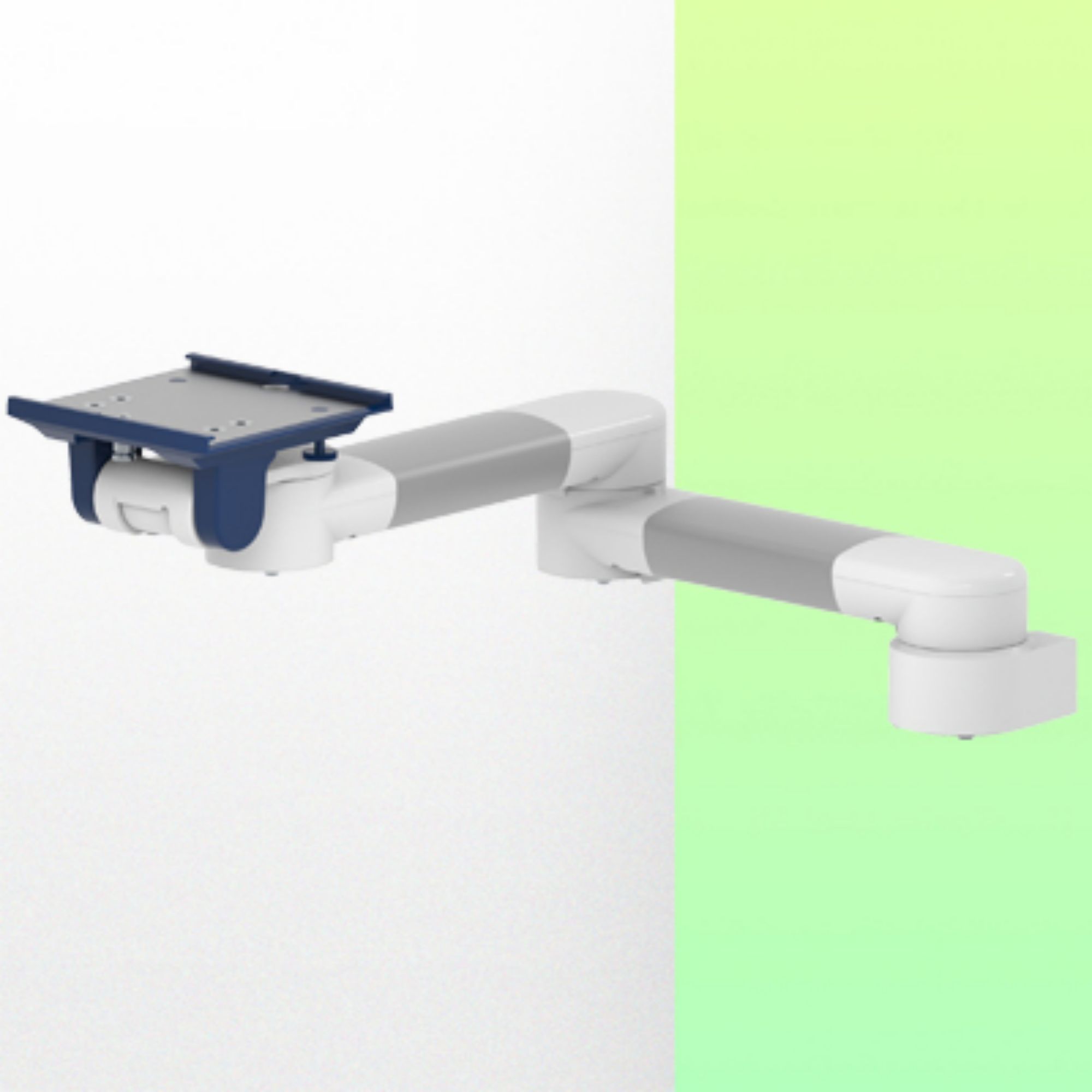

This 615 mm Horizontal Arm allows you to fix, orient and adjust the monitor perfectly.

It is covered with an anti-microbial agent offering hygiene and cleaning in every detail.

Its modern design has been specially designed for healthcare environments.

Technical characteristics:

* Built-in cable passage

* For Light Application

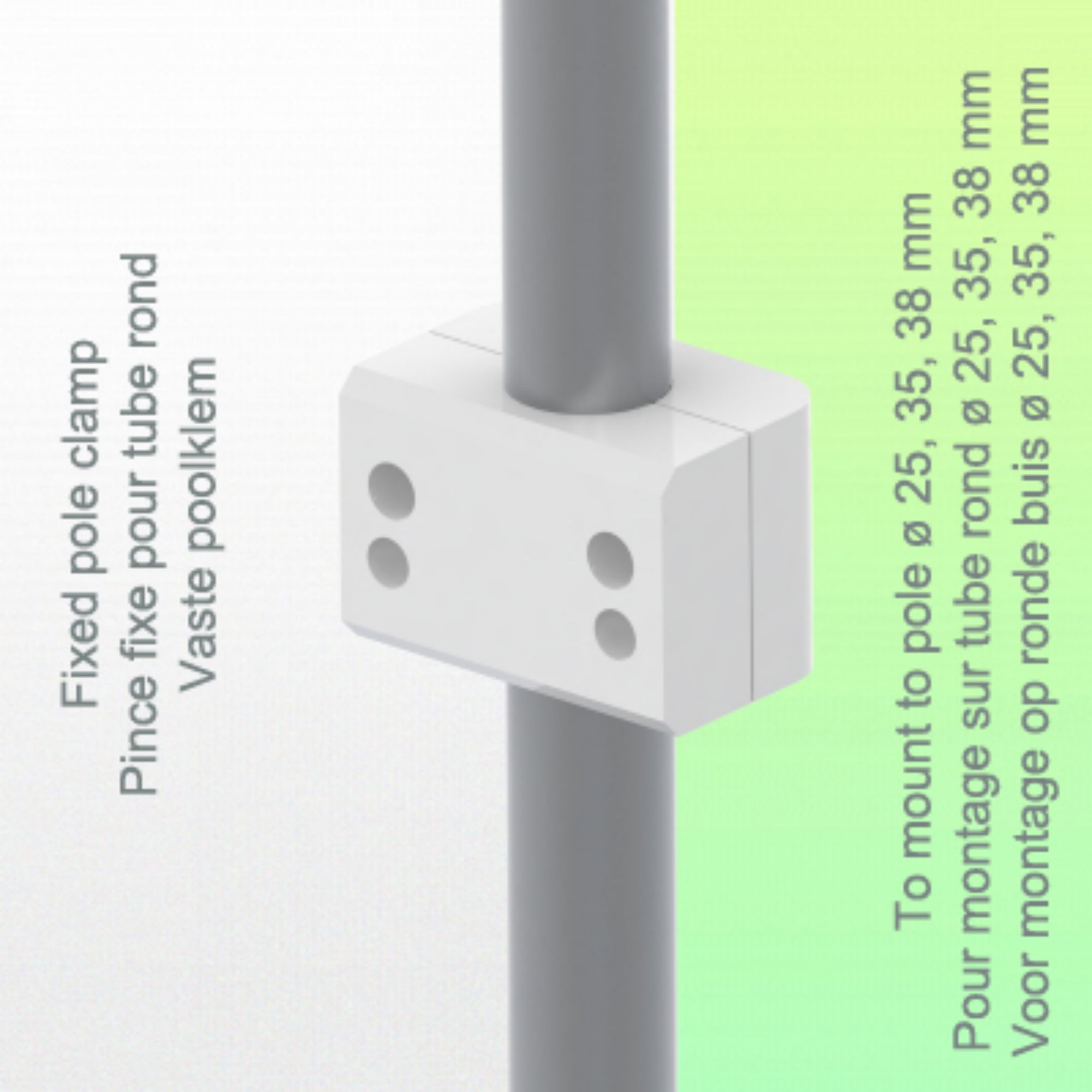

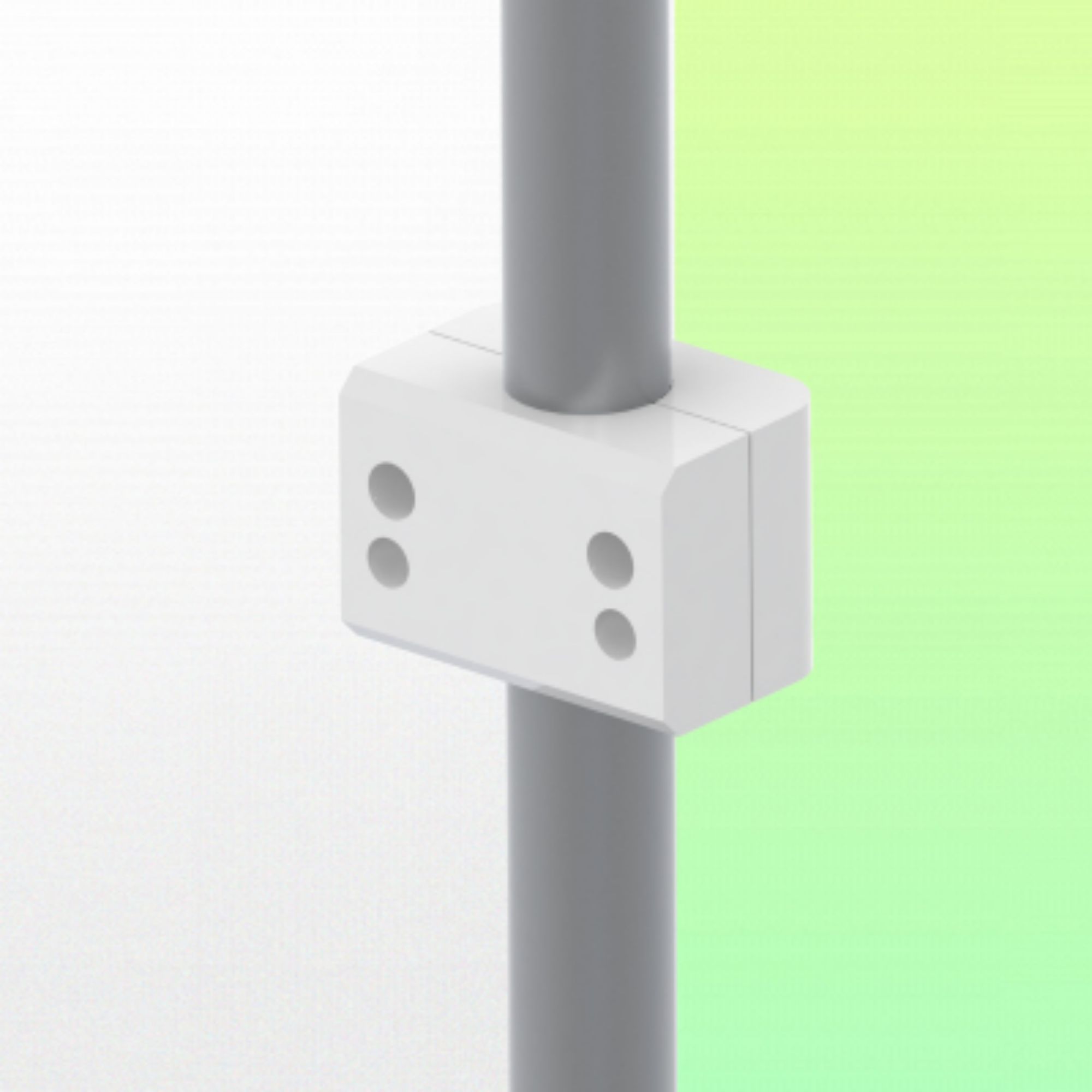

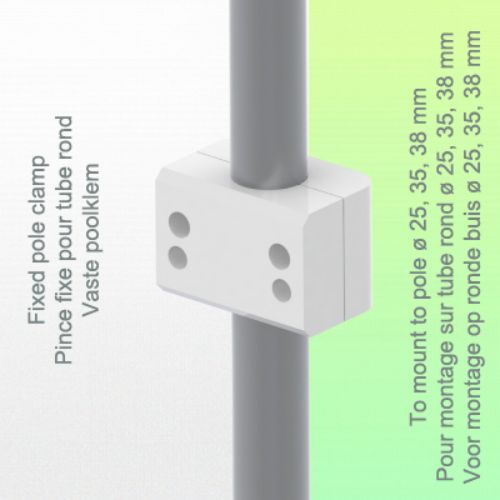

* Fixed pole mounting with 25 diameter, 35 or 38 mm

* This 615 mm arm simply pinches on the pole and adjusts to the desired height and fixed.

* It has no height adjustment.

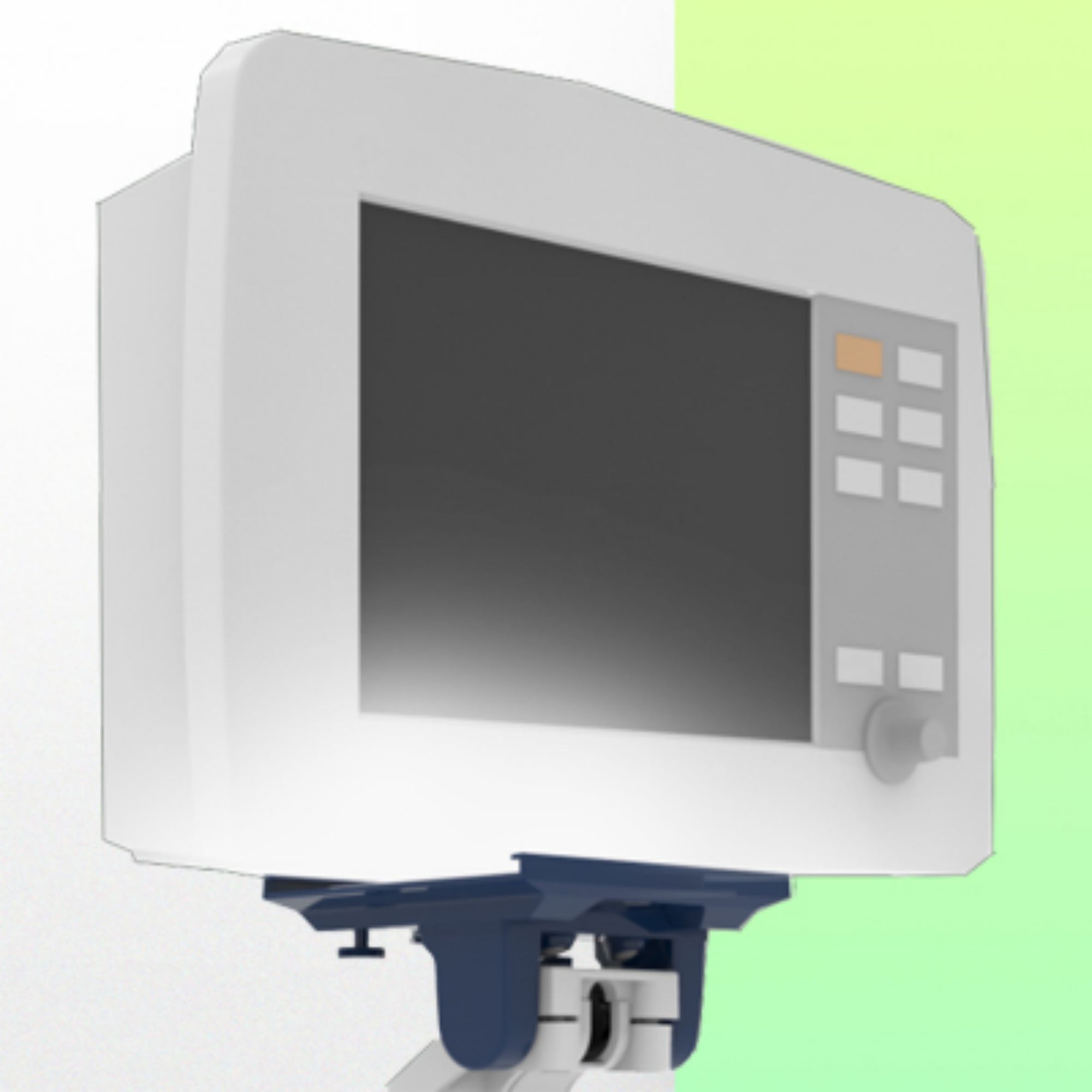

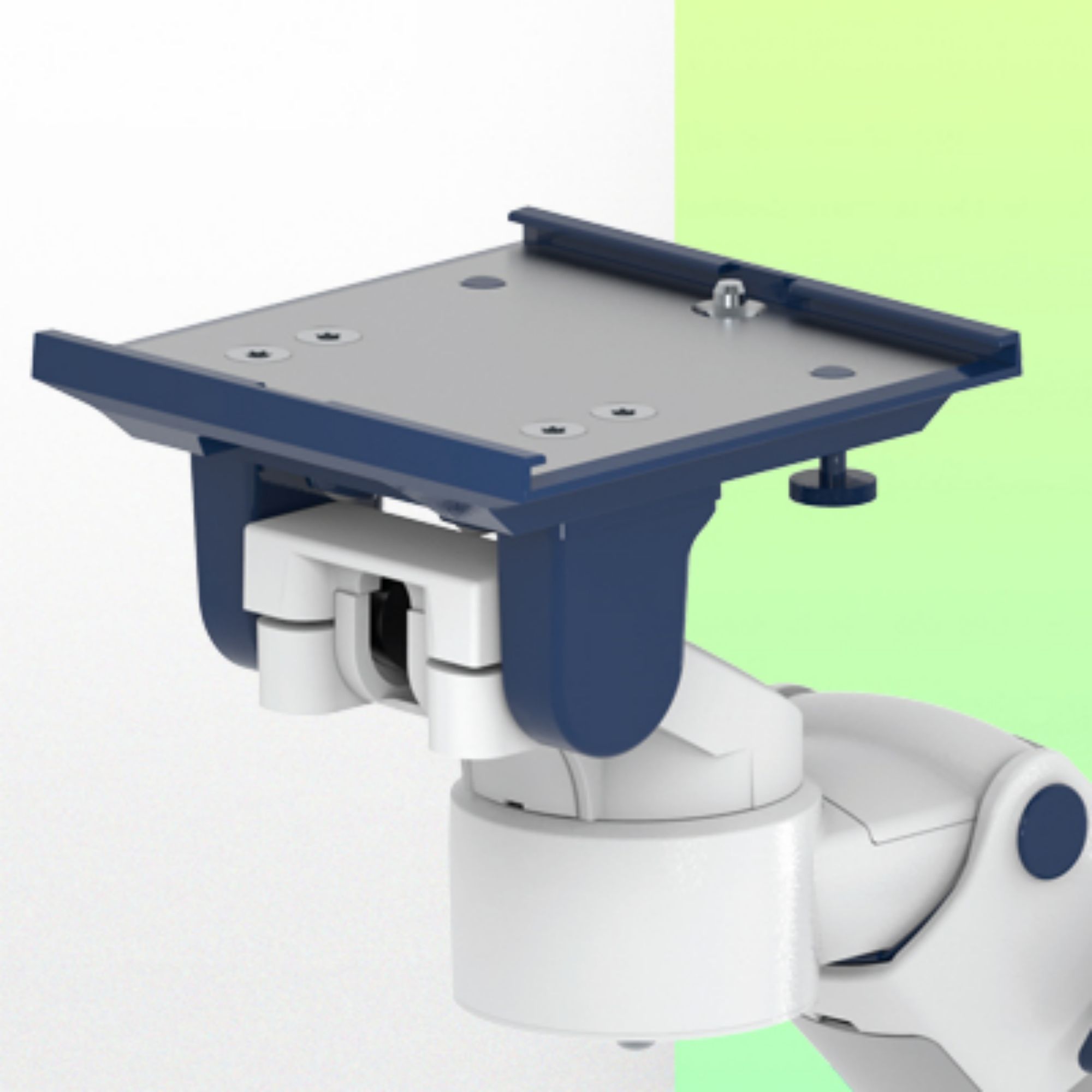

* The head of this arm complies with the Nihon Kohden Monitor mounting standard, which does not exceed 8 Kg.

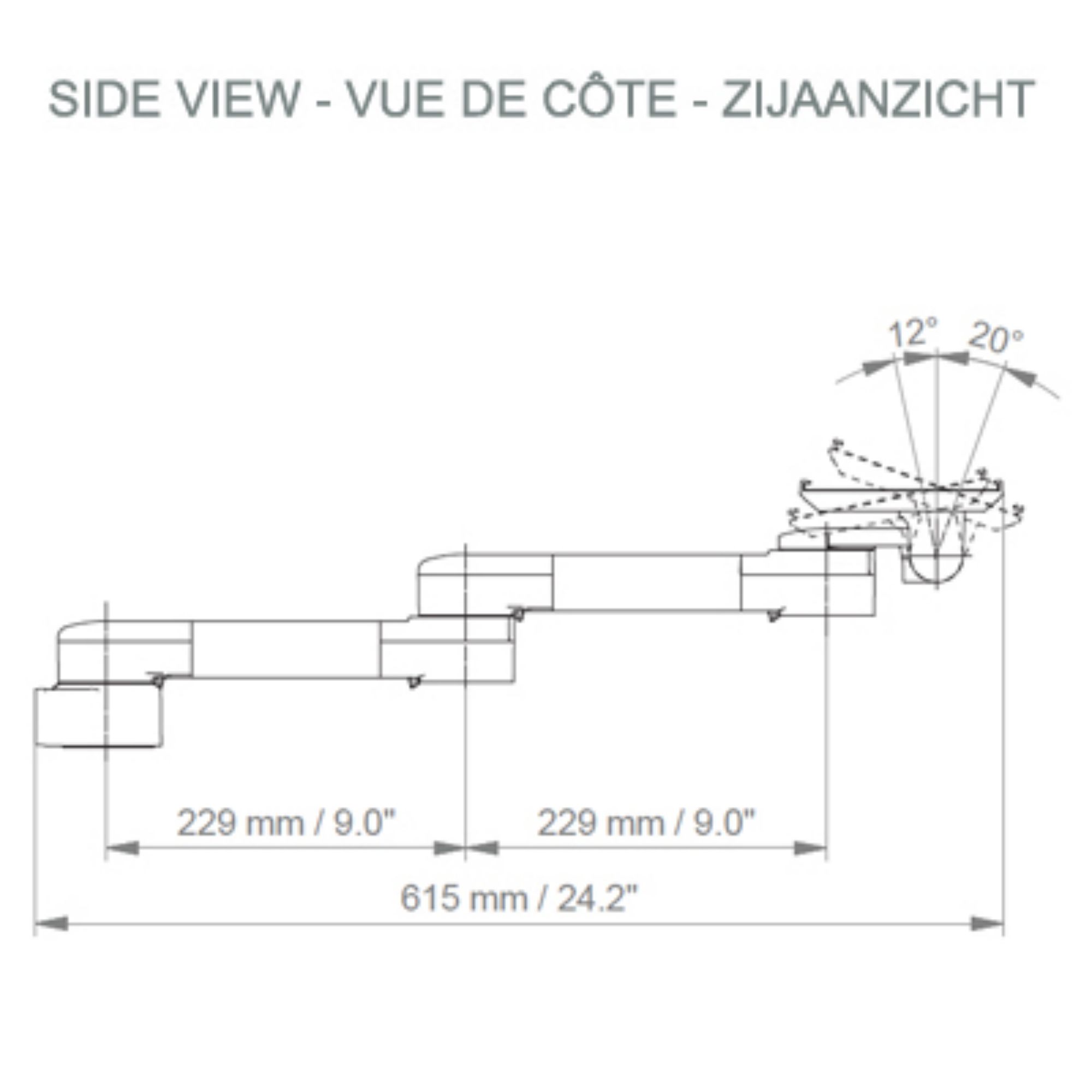

* Monitor tilt: 20° down and 12° up

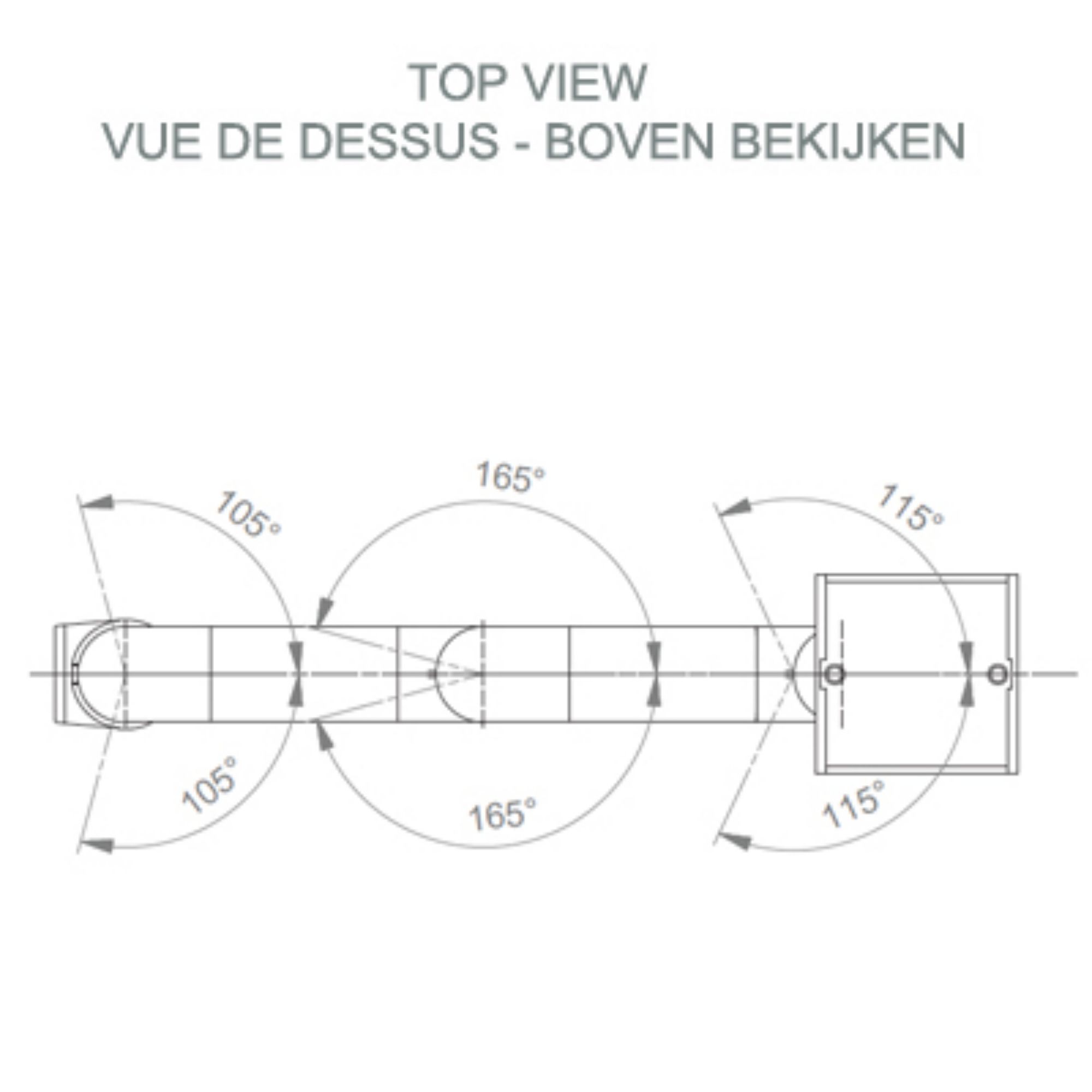

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length 615 mm

* Color RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
