386 mm Horizontal Medical Arm for monitoring

5'' plate adaptor and Nihon Kohden Interface,

mounted on variable pole 23 to 40 mm.

Nihon Kohden Monitoring compatible.

Product number: WM 250.118 - 386 mm Horizontal Medical Arm for monitoring

5'' plate adaptor,

mounted on variable pole 23 to 40 mm.

Dräger and GE compatible.

Product sheet PDF

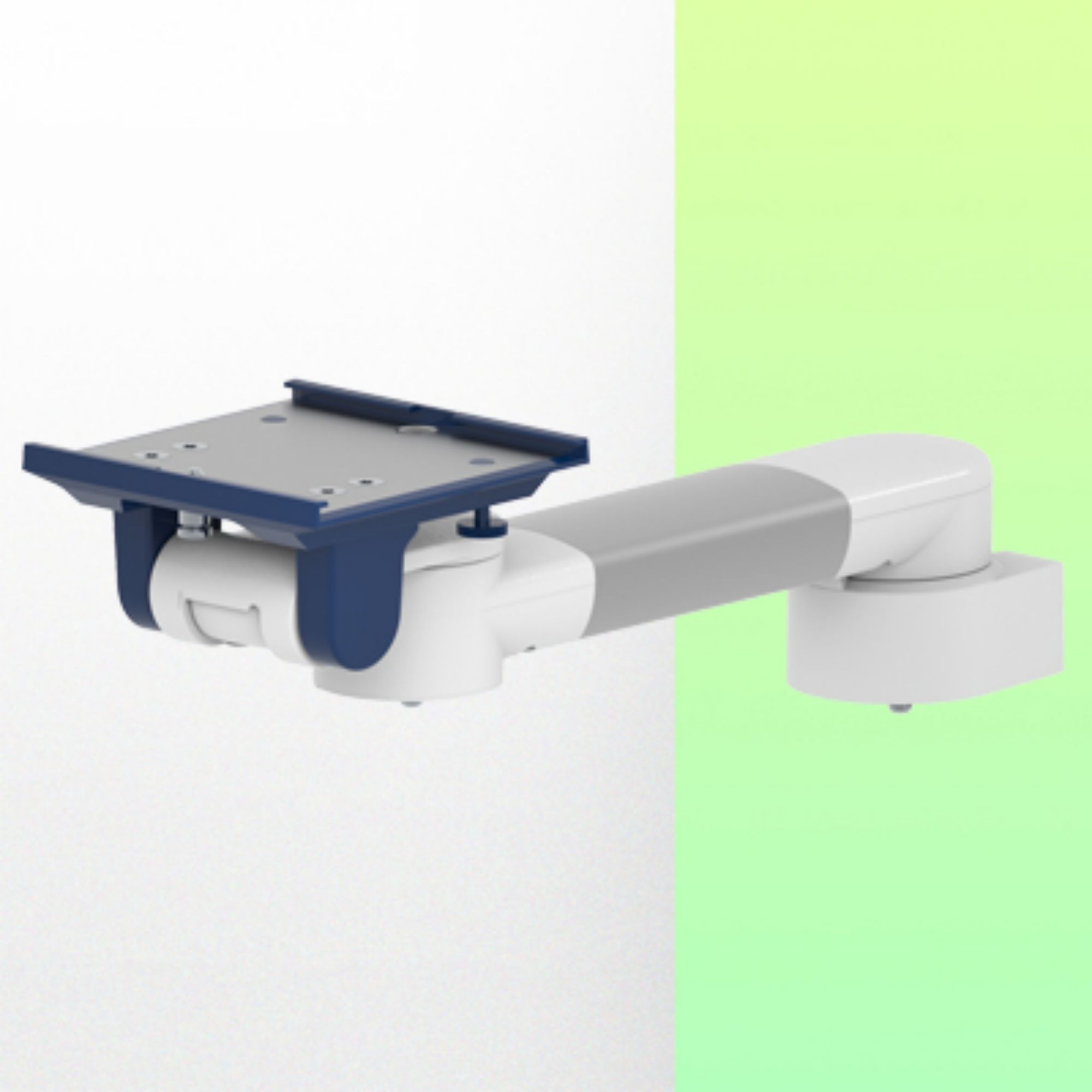

This 386 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

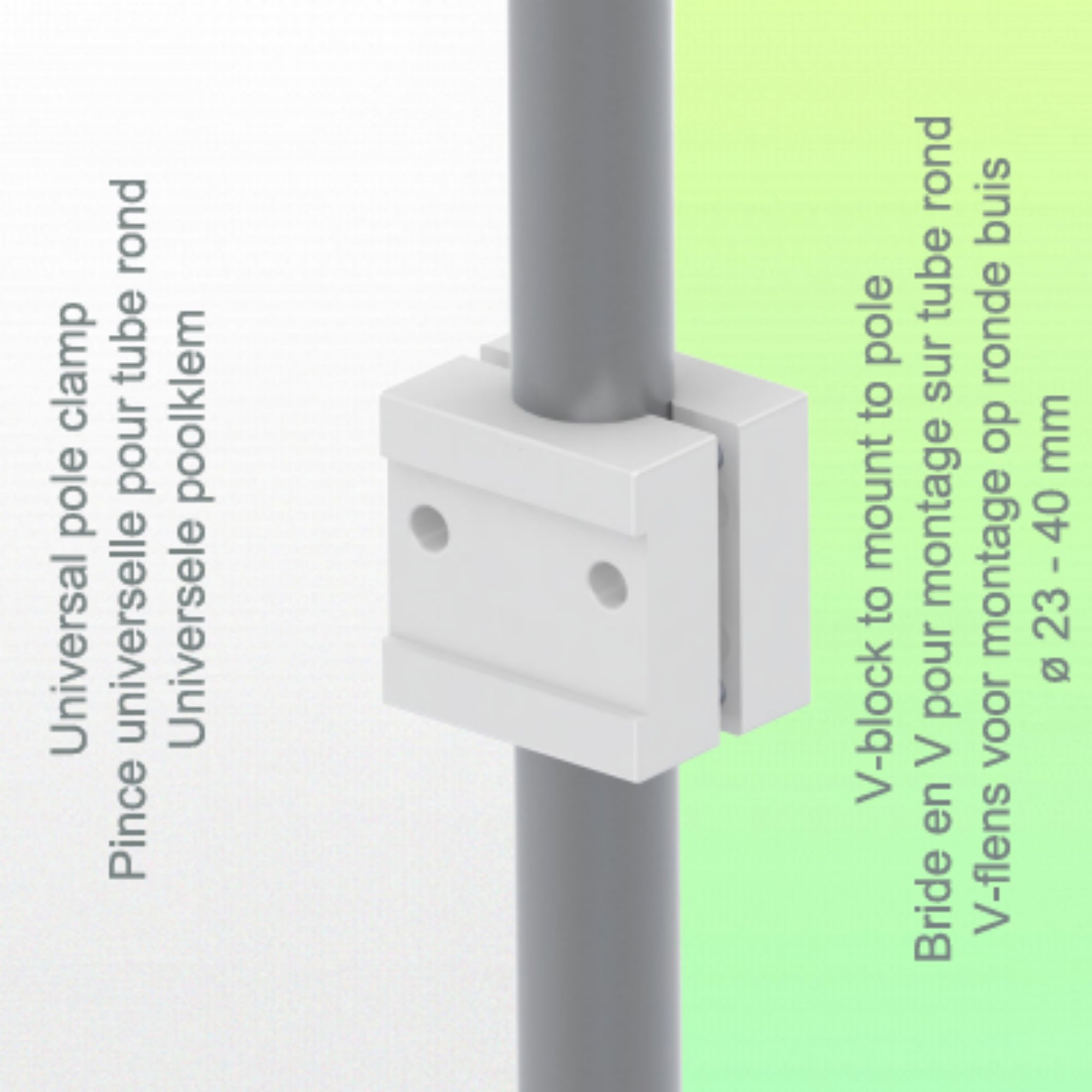

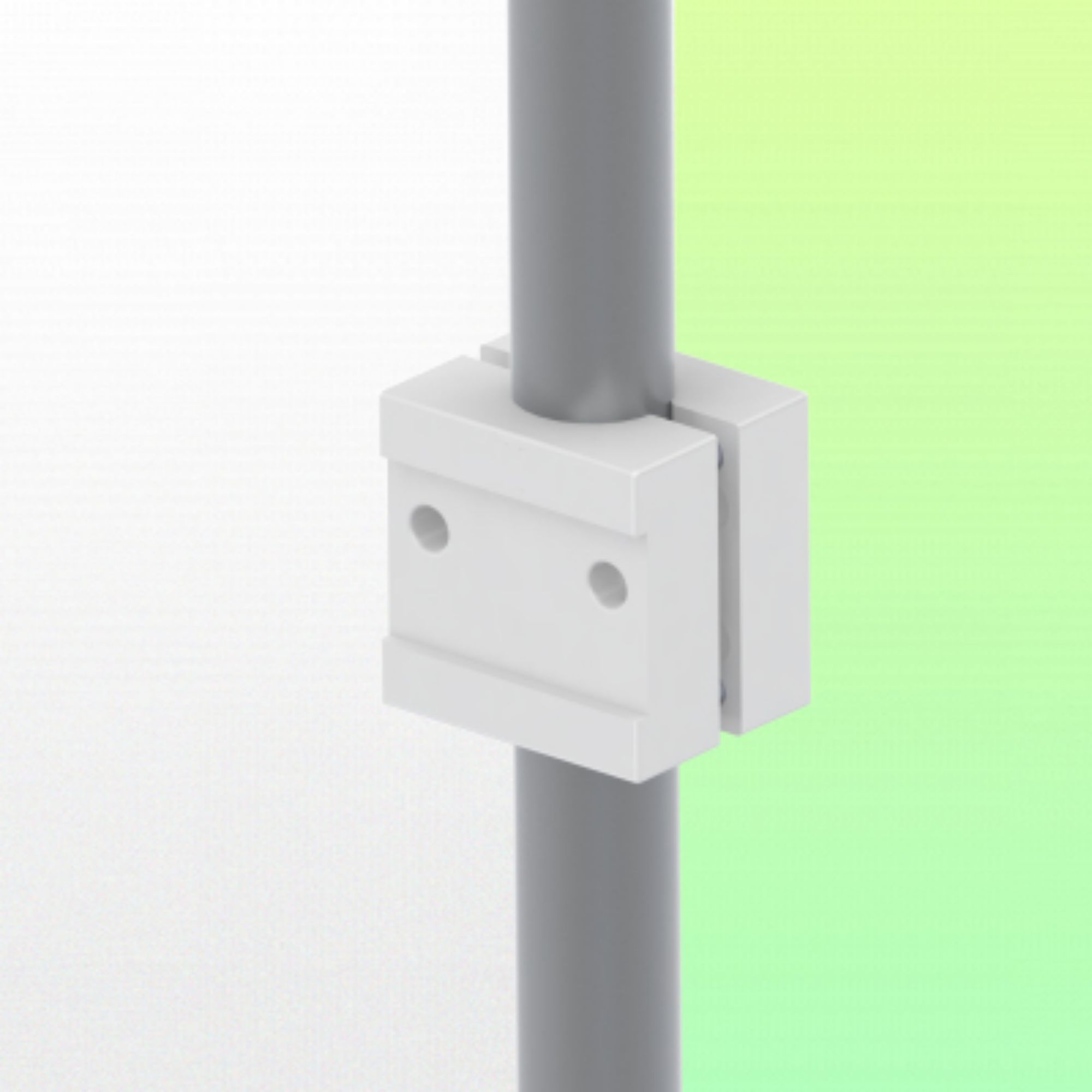

* Variable pole mounting with 23 to 40 mm diameter

* The 386 mm arm simply clips onto the pole and adjusts to the required height.

* There is no height adjustment.

* The head of this arm complies with the mounting standard for Nihon Kohden monitors weighing up to 18 kg.

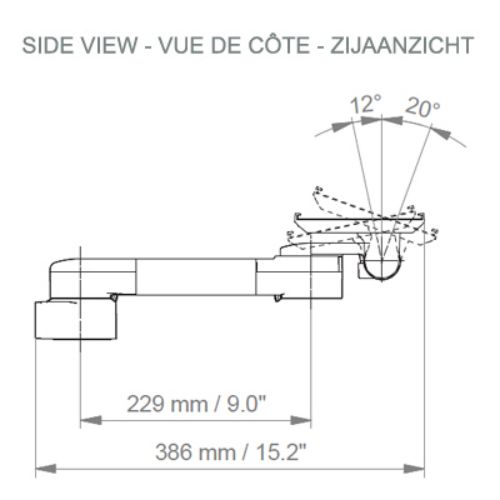

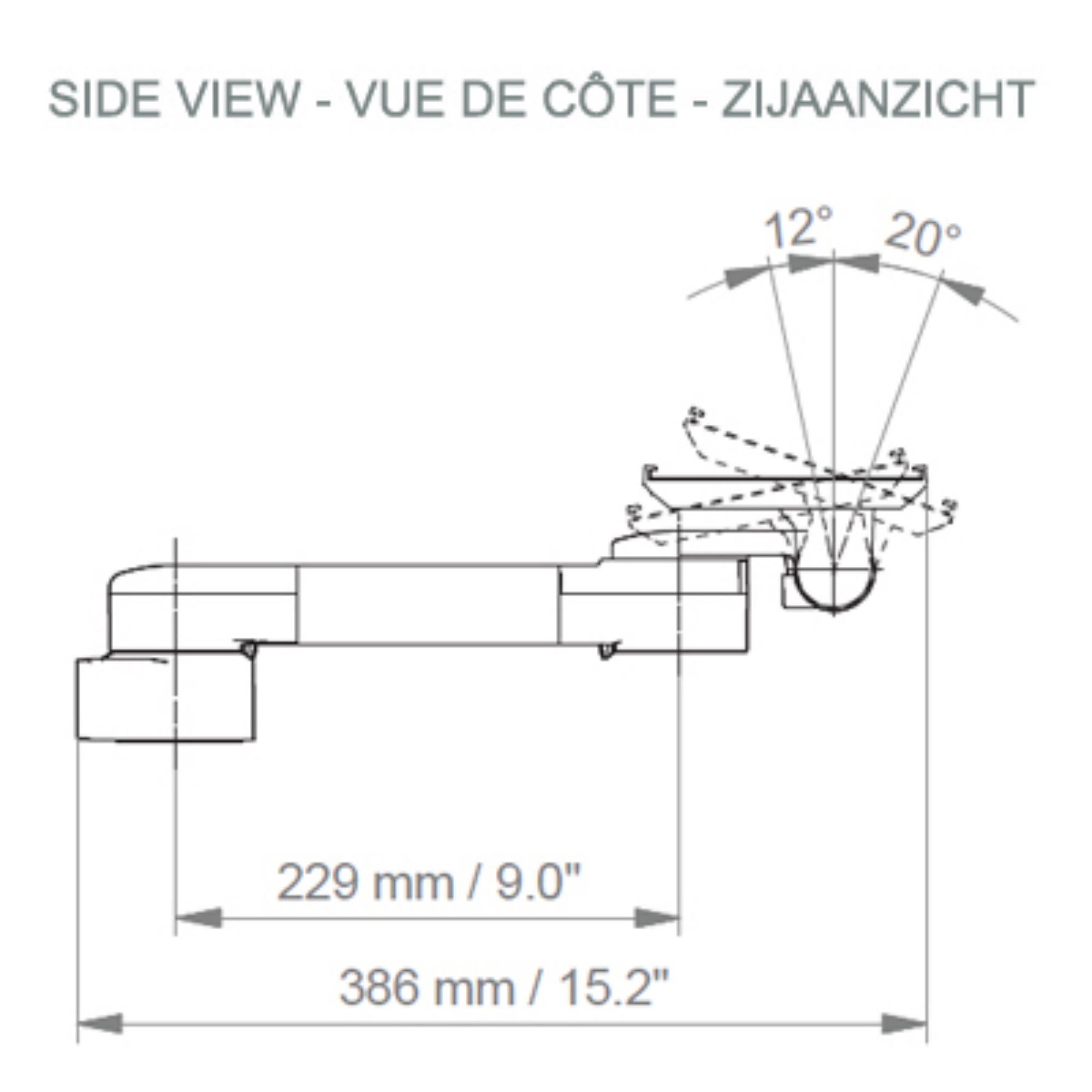

* Monitor tilt: 20° down and 12° up

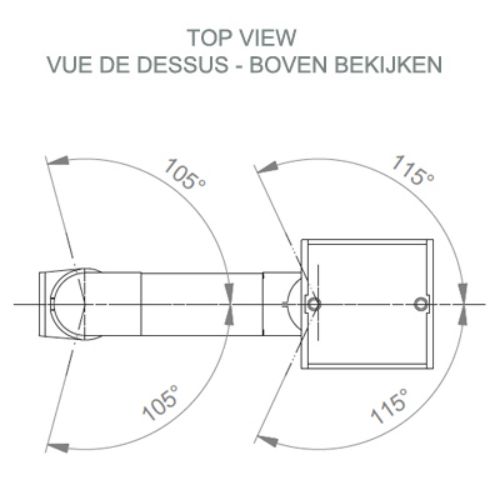

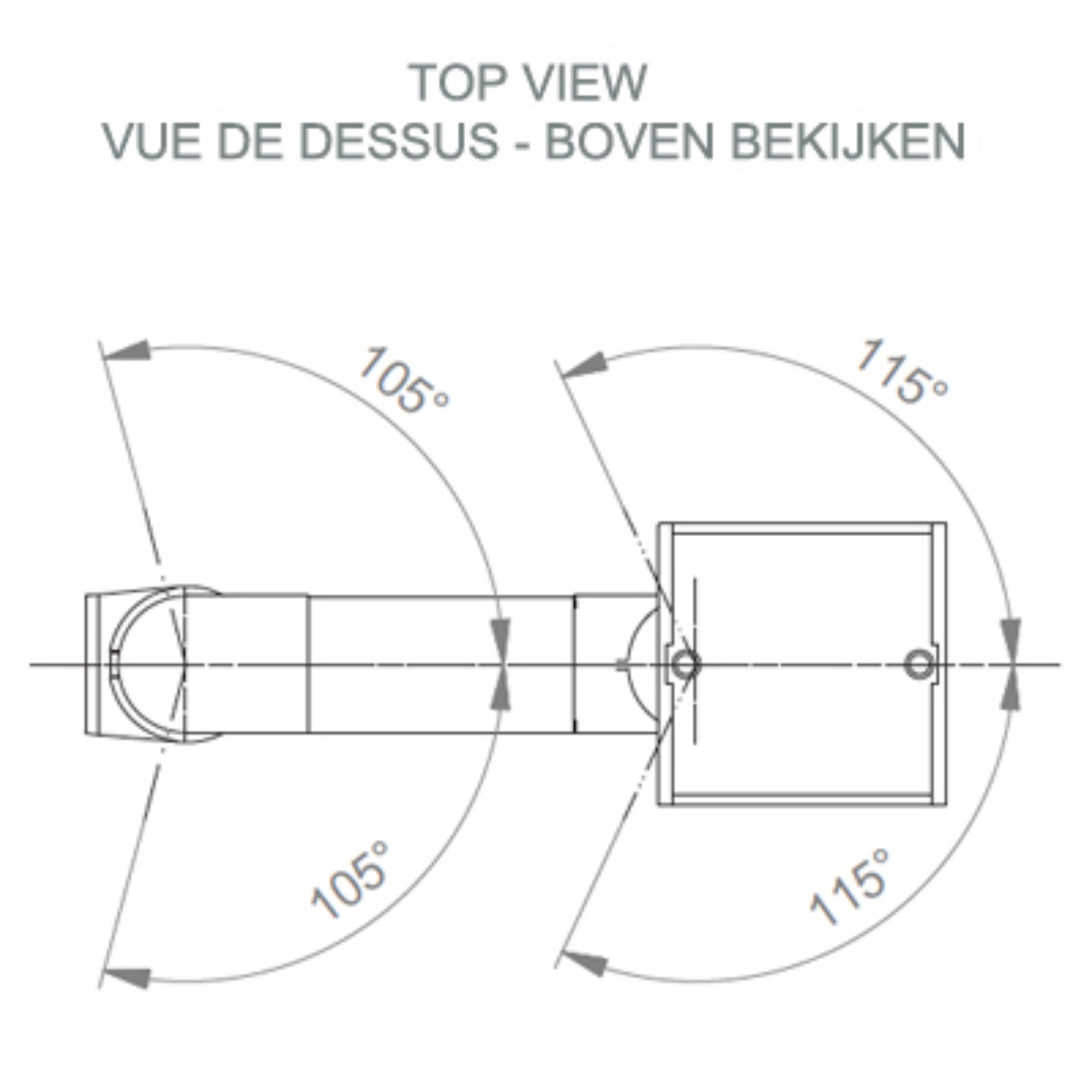

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 386 mm Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
