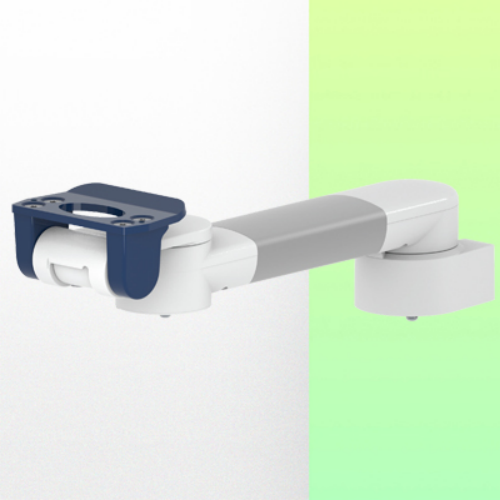

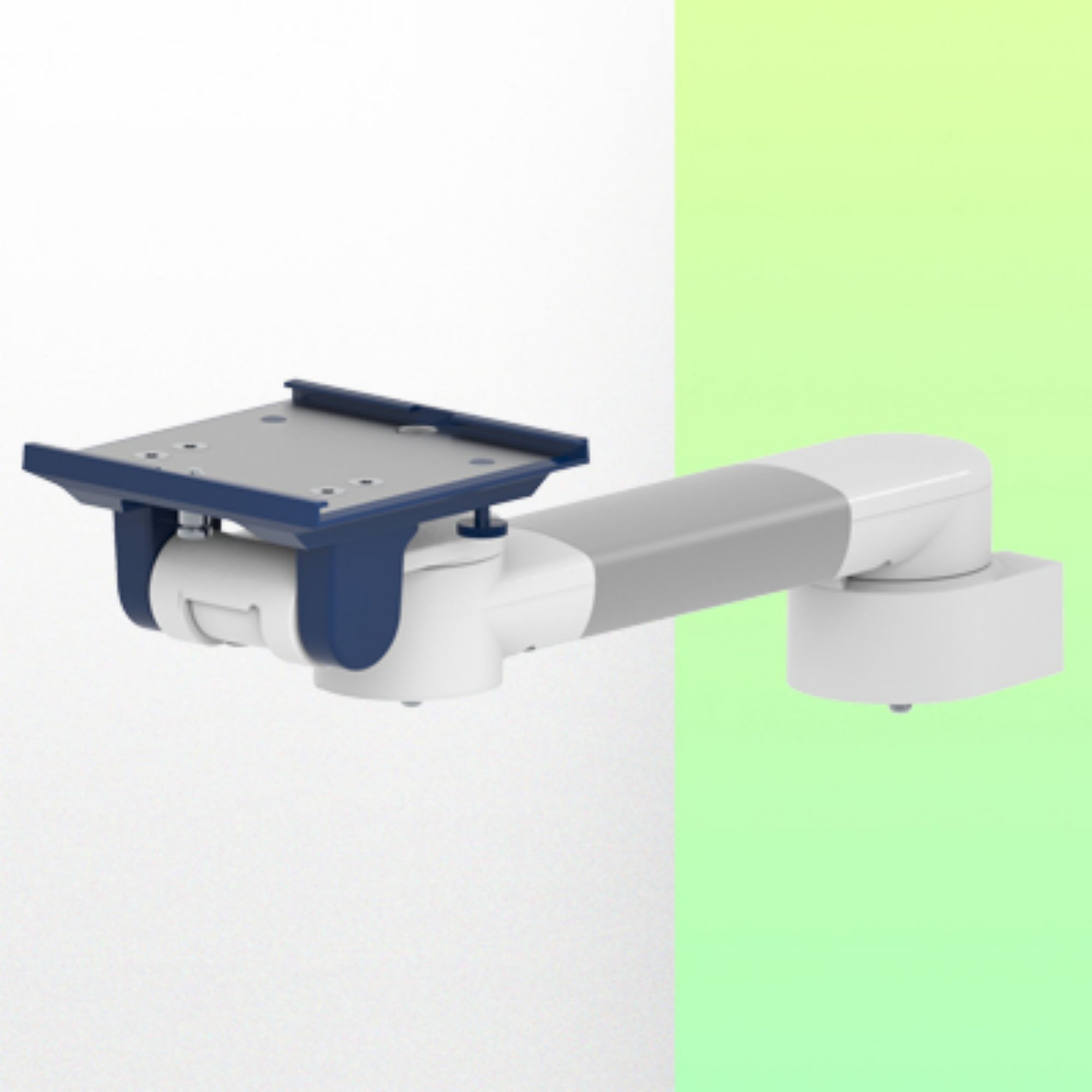

363 mm Horizontal Medical Arm for monitoring

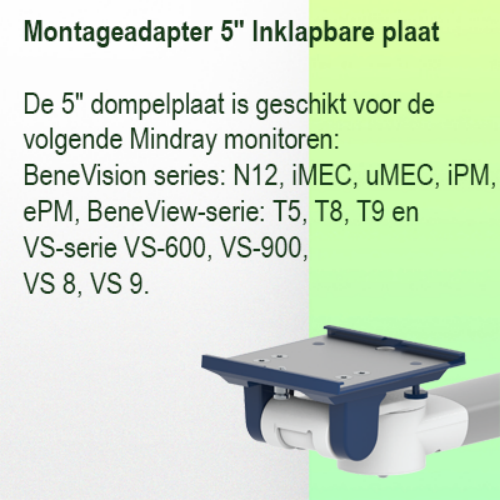

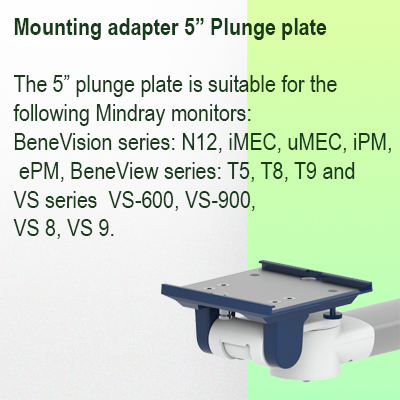

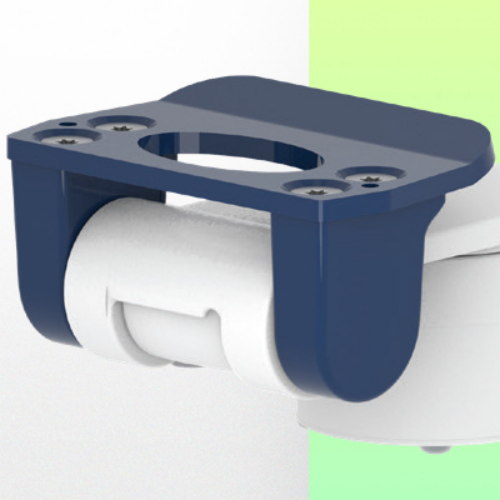

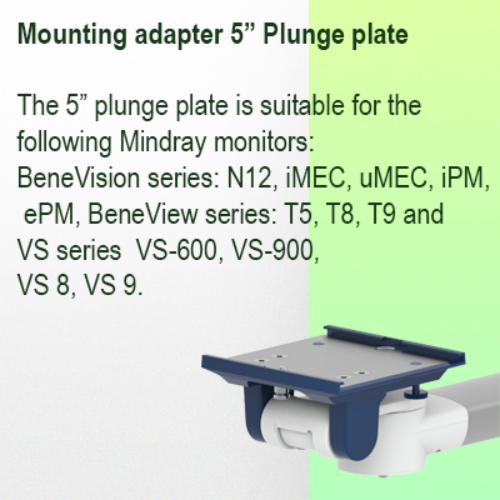

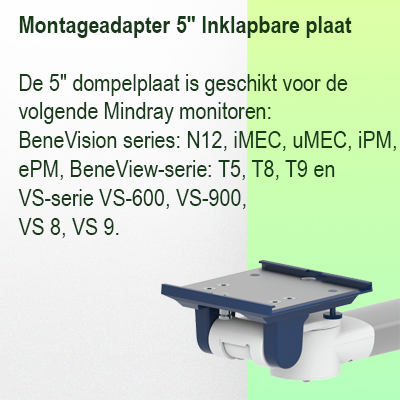

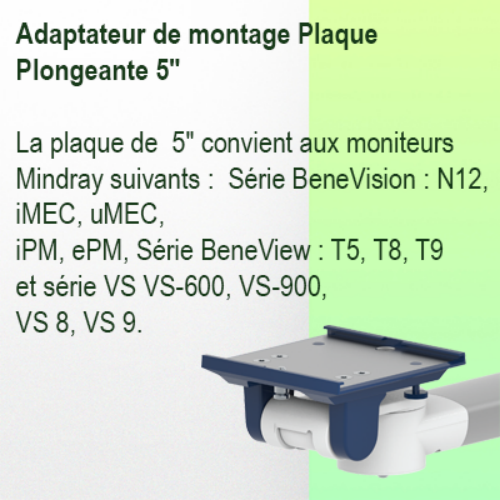

5'' plate adaptor or Quick Release

Mounting on Amico medical device pendants and headwalls.

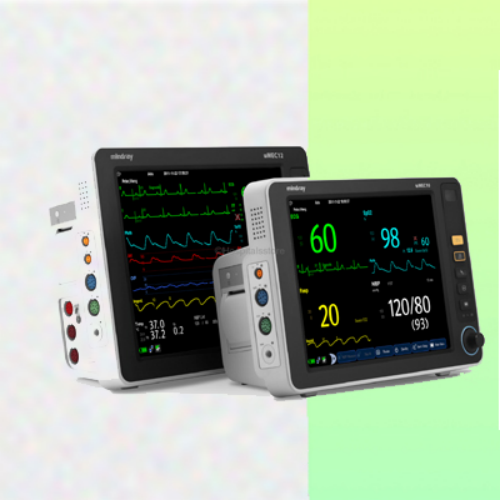

Mindray Monitoring compatible.

Product number: WM 250.124MD - 363 mm Horizontal Medical Arm for monitoring

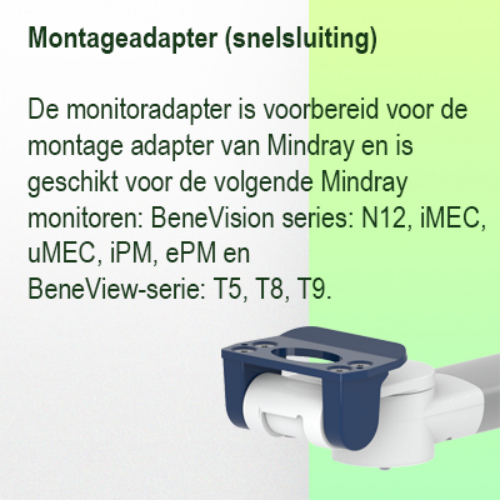

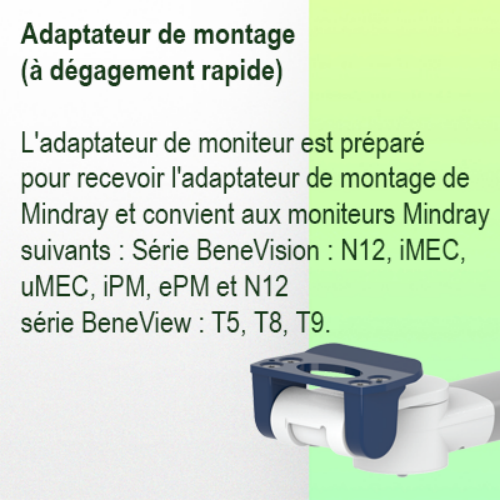

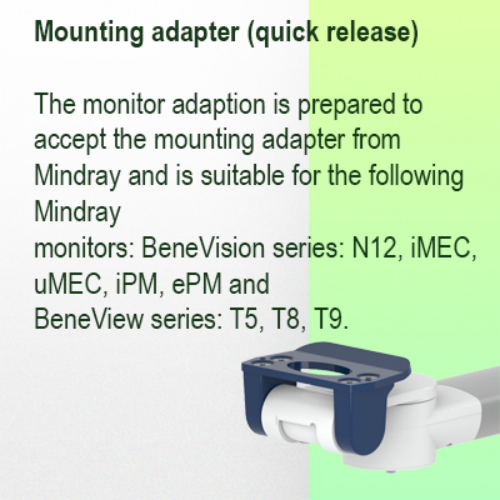

5'' plate adaptor or Quick Release

Mounting on Amico medical device pendants and headwalls.

Mindray Monitoring compatible.

Product sheet PDF

This 386 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

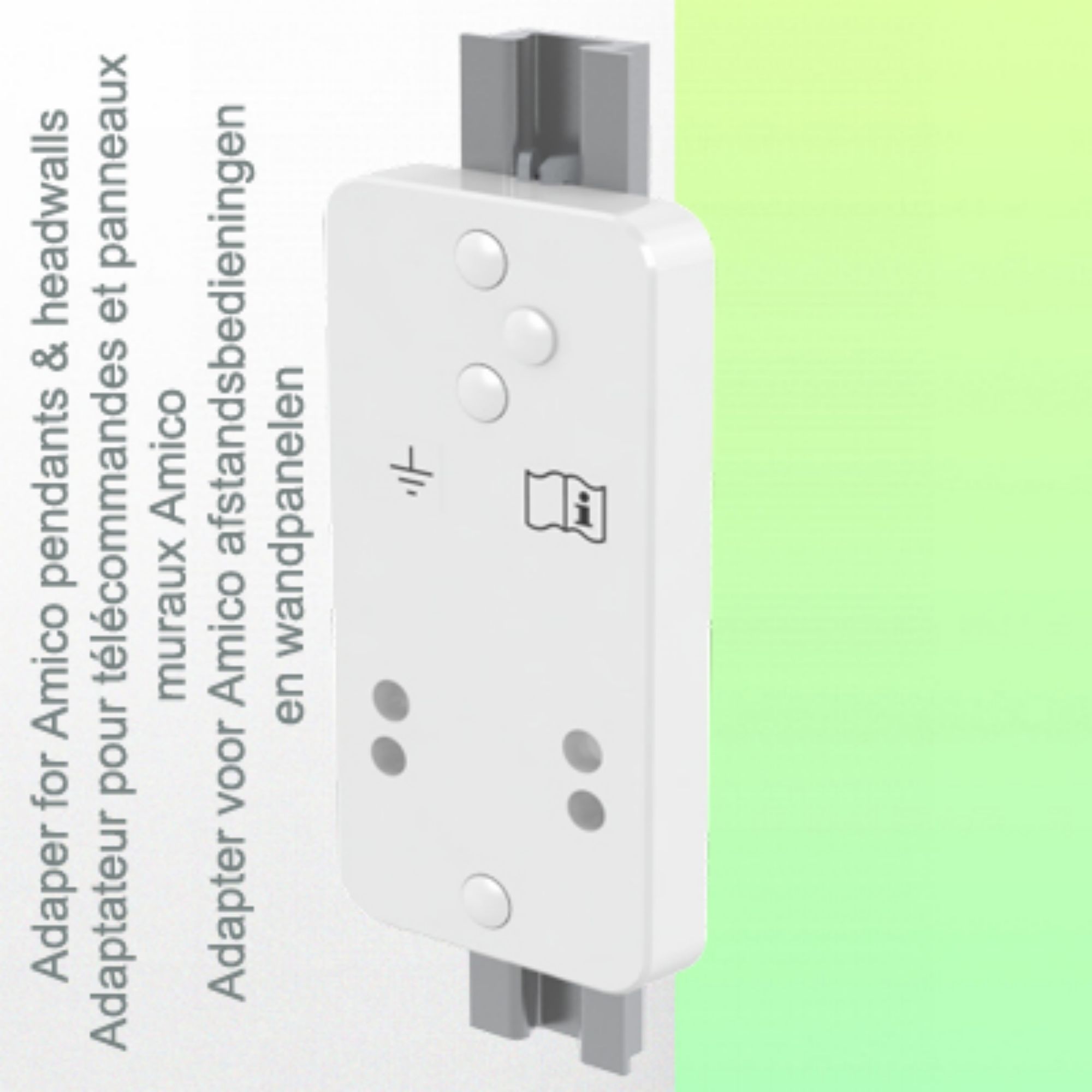

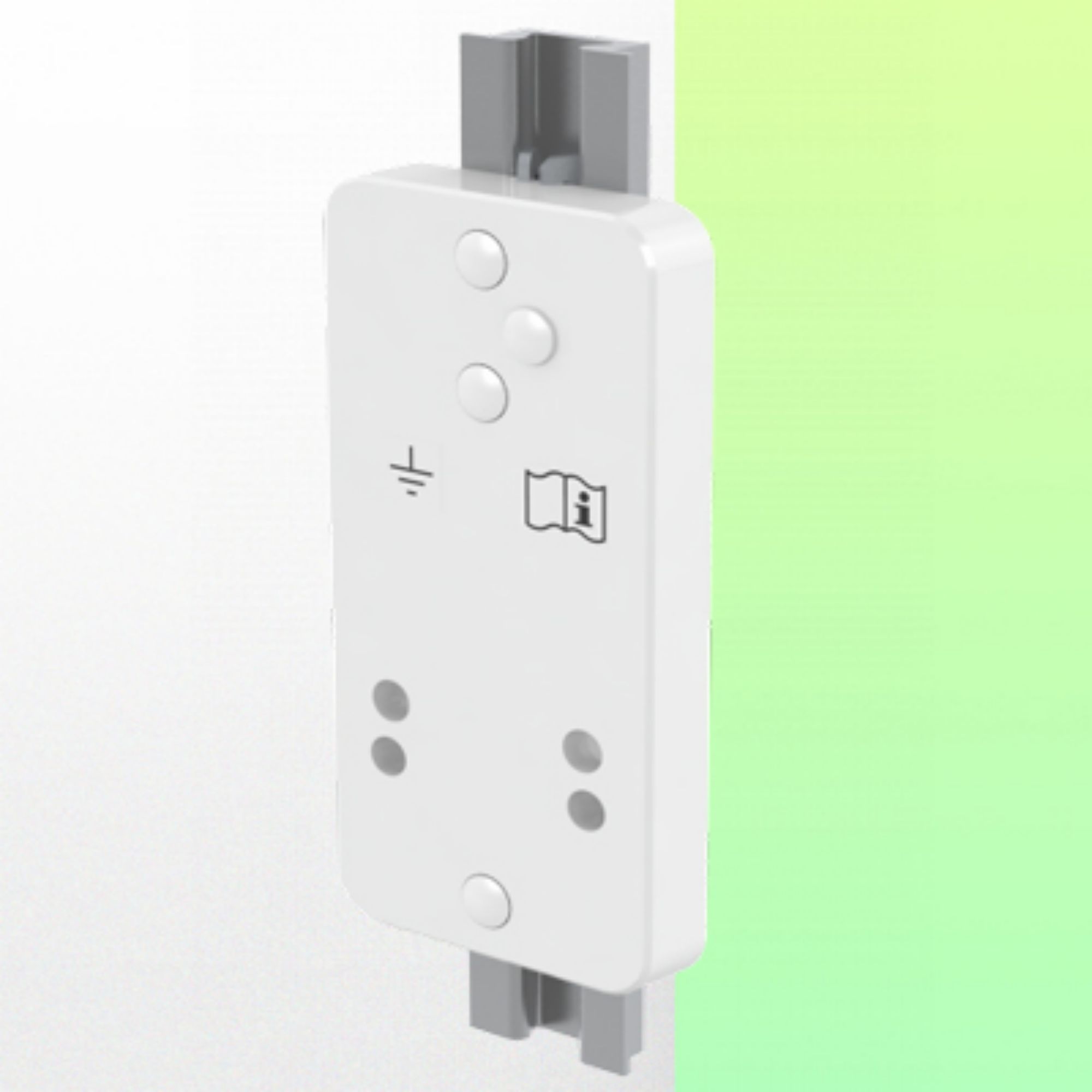

* Mounting on Amico medical device pendants and headwalls

* This 363 mm arm simply attaches to the Amico unit using the adapter and adjusts to the desired height and fixed.

* It has no height adjustment.

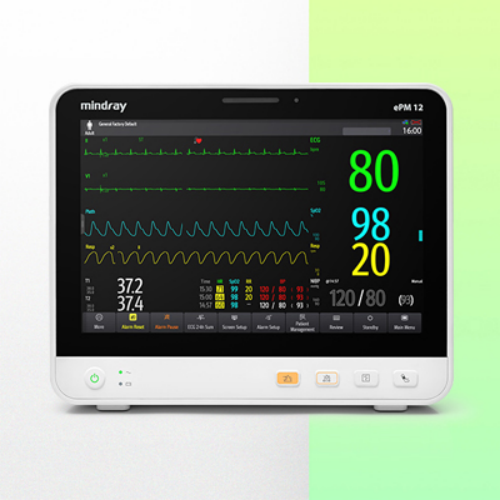

* The head of this arm complies with the mounting standard for Mindray monitors weighing up to 18 kg.

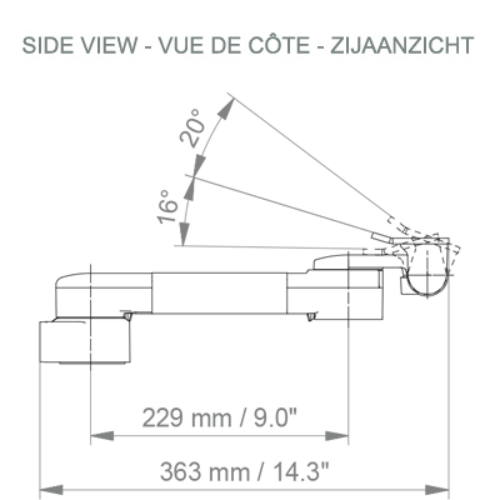

* Monitor tilt: 16° down and 20° up

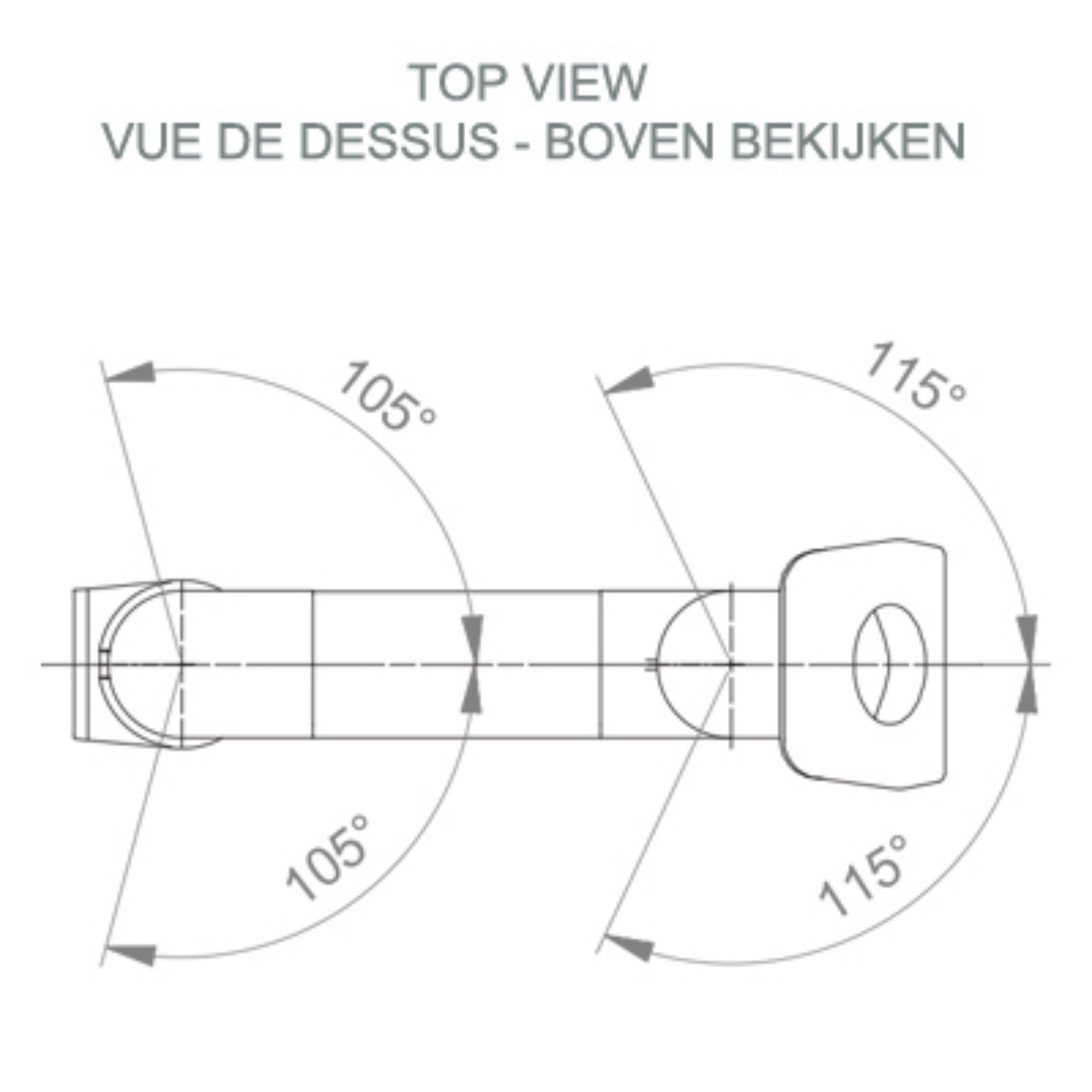

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 363 mm Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
