Double 618 mm Horizontal Medical Arm for monitoring

Adaptation plate 5’' and Nihon Kohden Interface,

Mounting on Amico medical device pendants and headwalls.

Compatible Monitoring Nihon Kohden.

Product number: WM 250.126NK - Double 618 mm Horizontal Medical Arm for monitoring

Adaptation plate 5’' and Nihon Kohden Interface,

Mounting on Amico medical device pendants and headwalls.

Compatible Monitoring Nihon Kohden.

Product sheet PDF

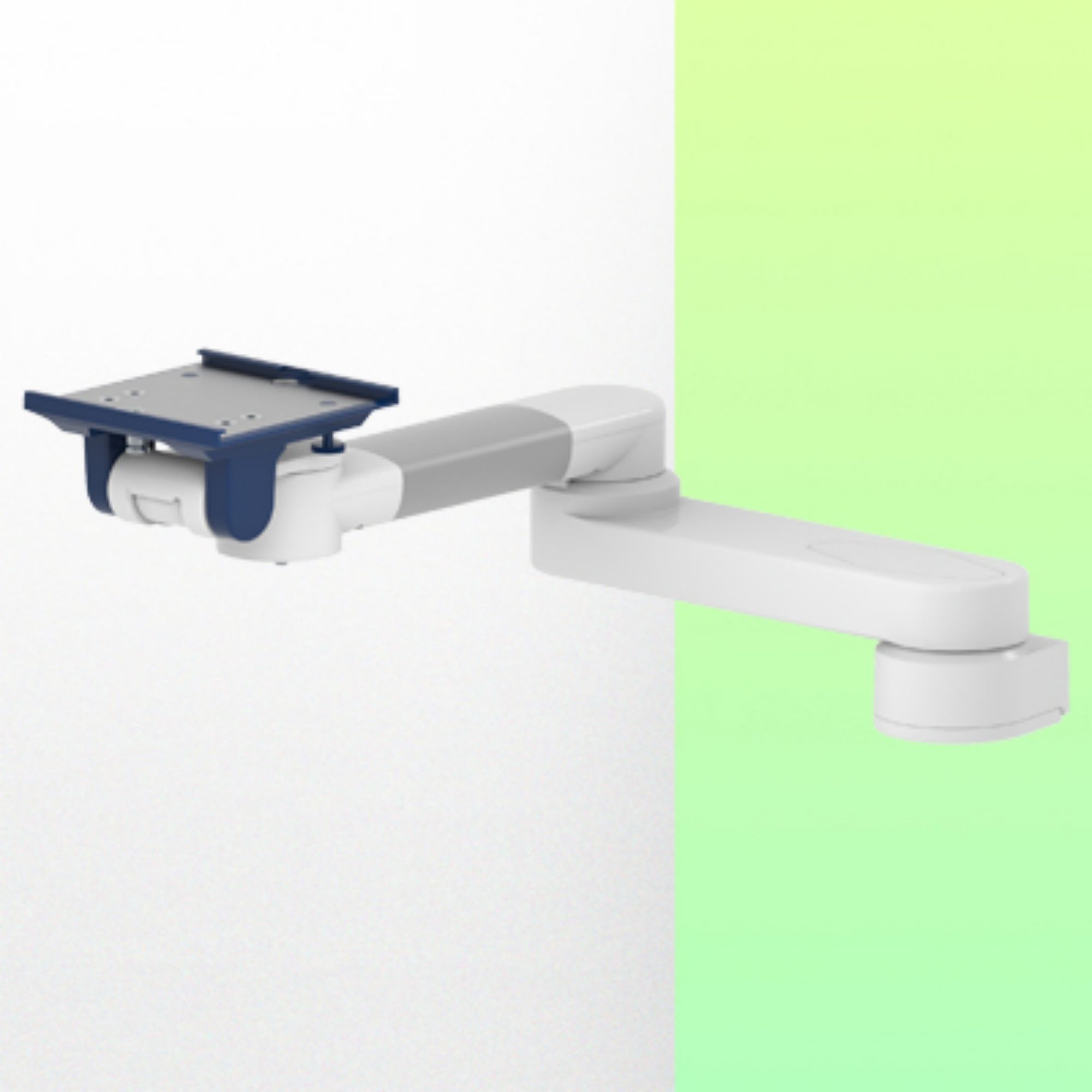

This 618 mm dual Horizontal Arm allows you to fix, orient and adjust the monitor perfectly.

It is covered with an anti-microbial agent offering hygiene and cleaning in every detail.

Its modern design has been specially designed for healthcare environments.

Technical characteristics:

* Built-in cable passage

* For Heavy Duty Application

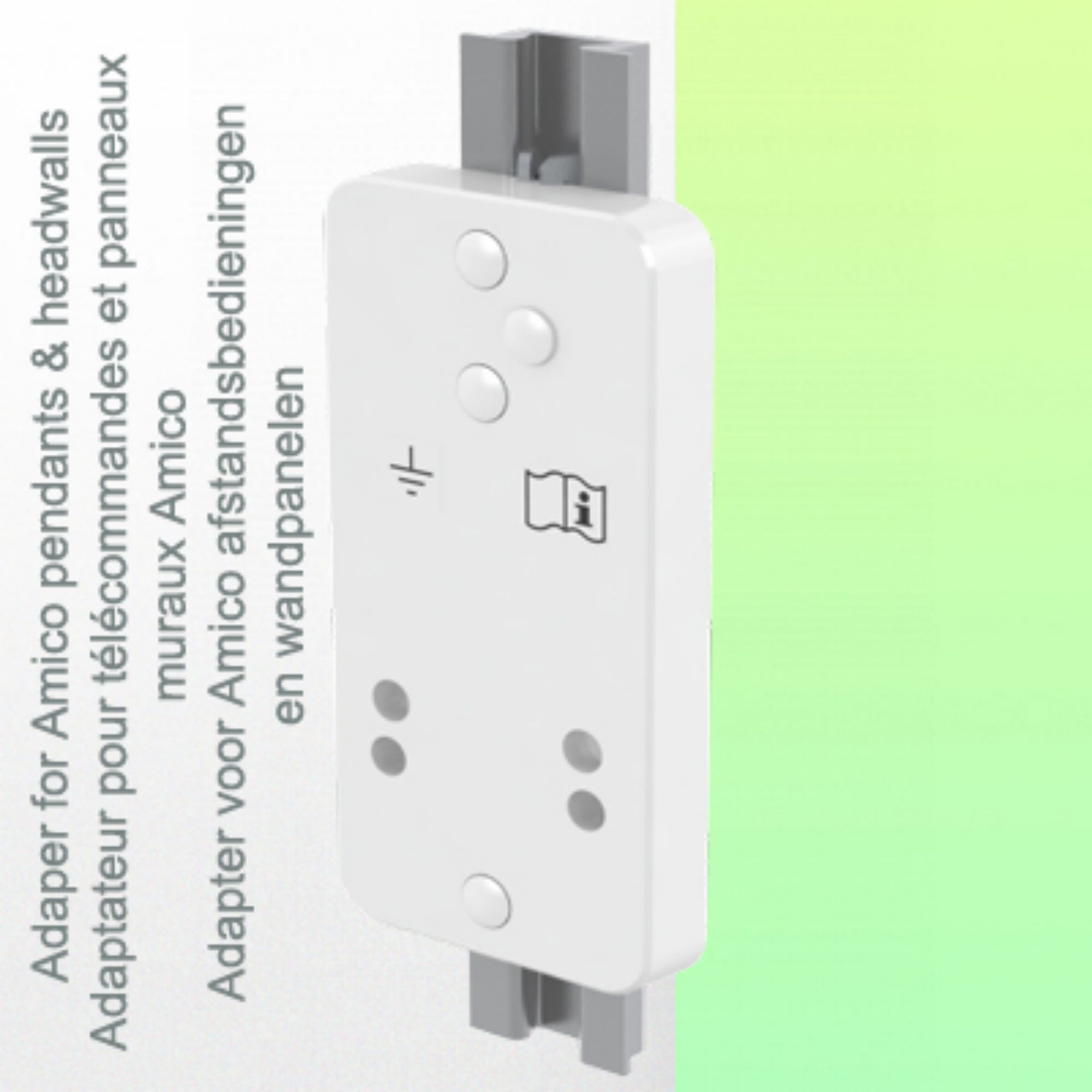

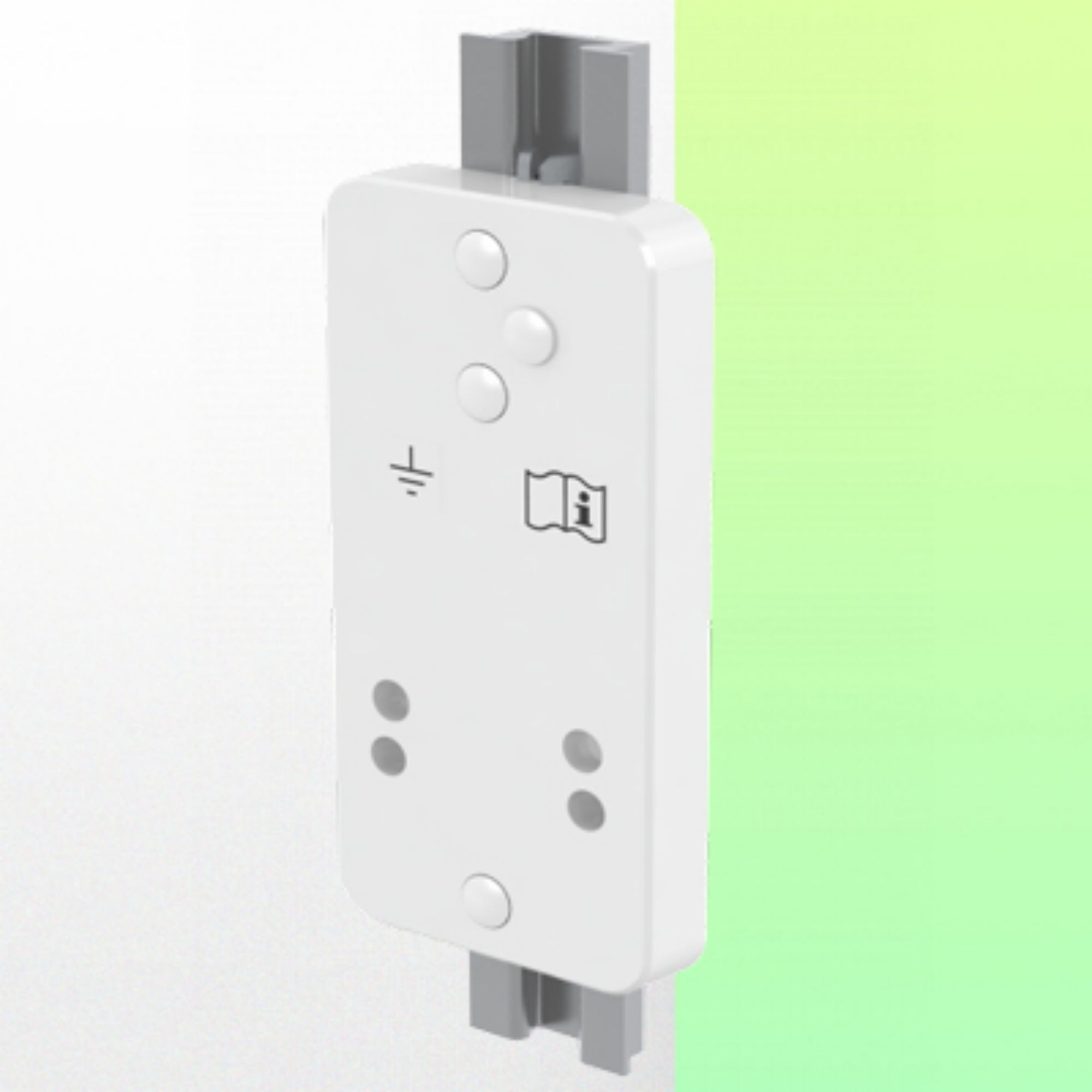

* Mounting on Amico medical device pendants and headwalls

* This 618 mm arm simply attaches to the Amico unit using the adapter and adjusts to the desired height and fixed. It has no height adjustment.

* The head of this arm complies with the Nihon Kohden monitor mounting standard, which does not exceed 18 Kg.

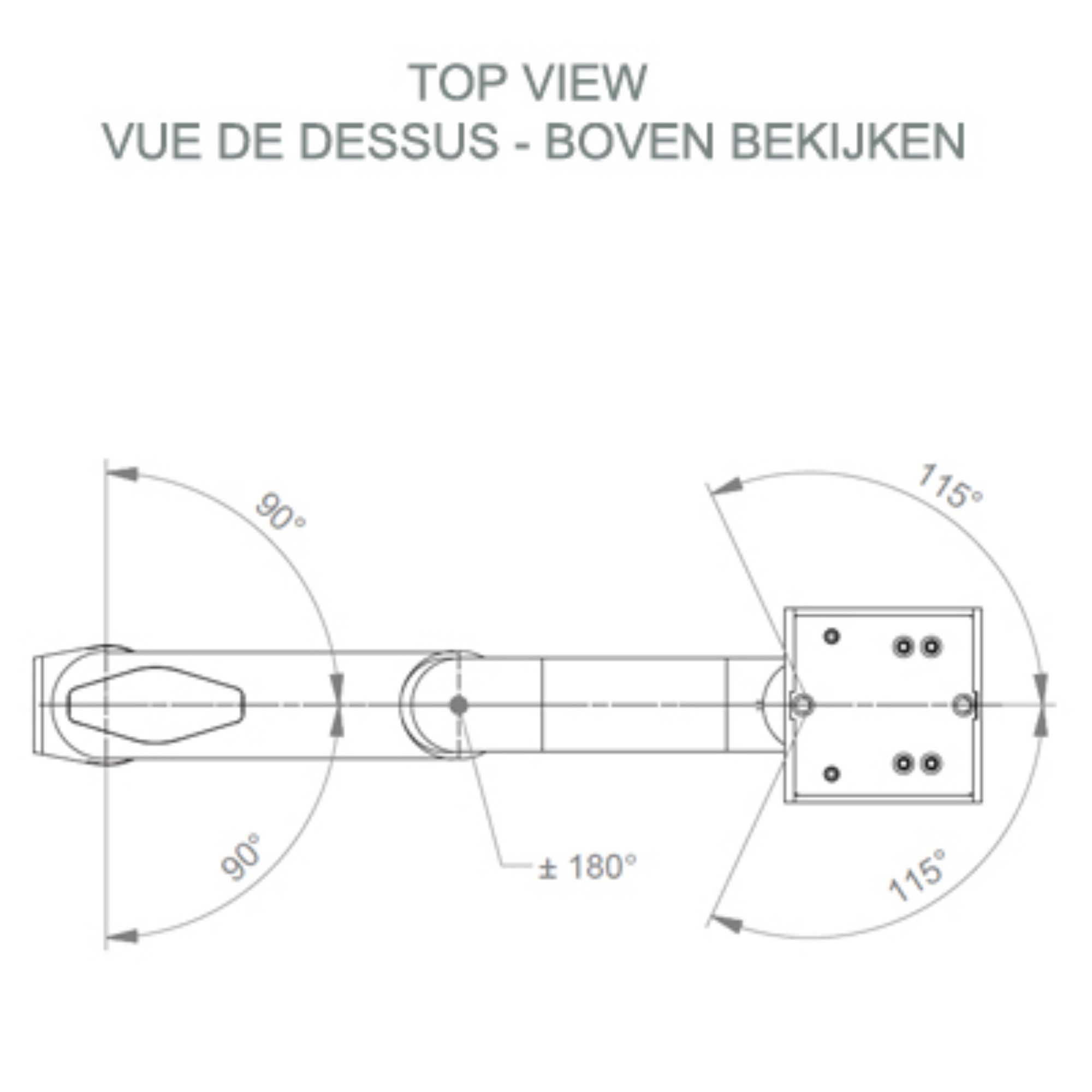

* Monitor tilt: 20° down and 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

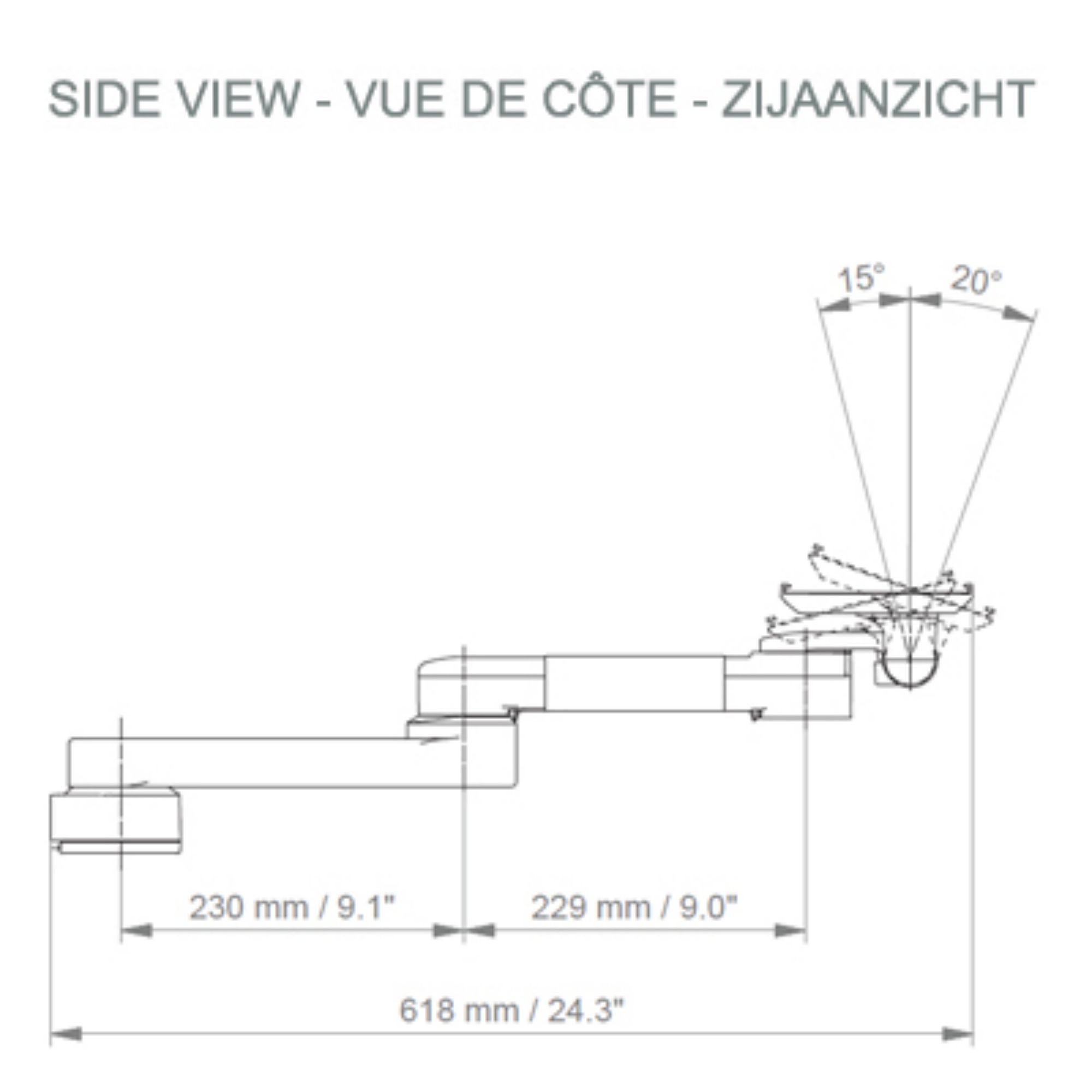

* Total length 618 mm

* Color RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
