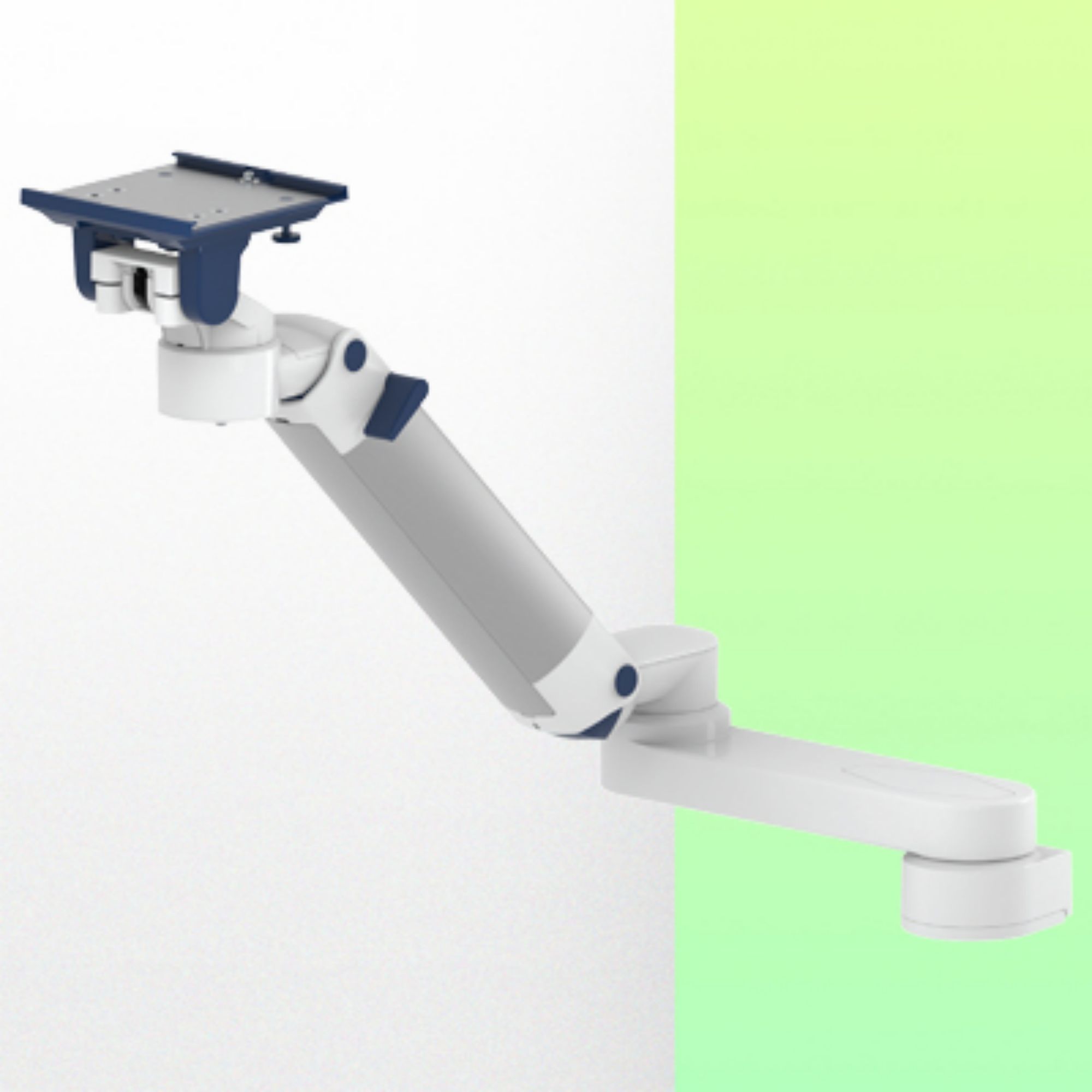

Double medical arm with 5" plunge plate and Nihon Kohden Interface for height-adjustable monitoring,

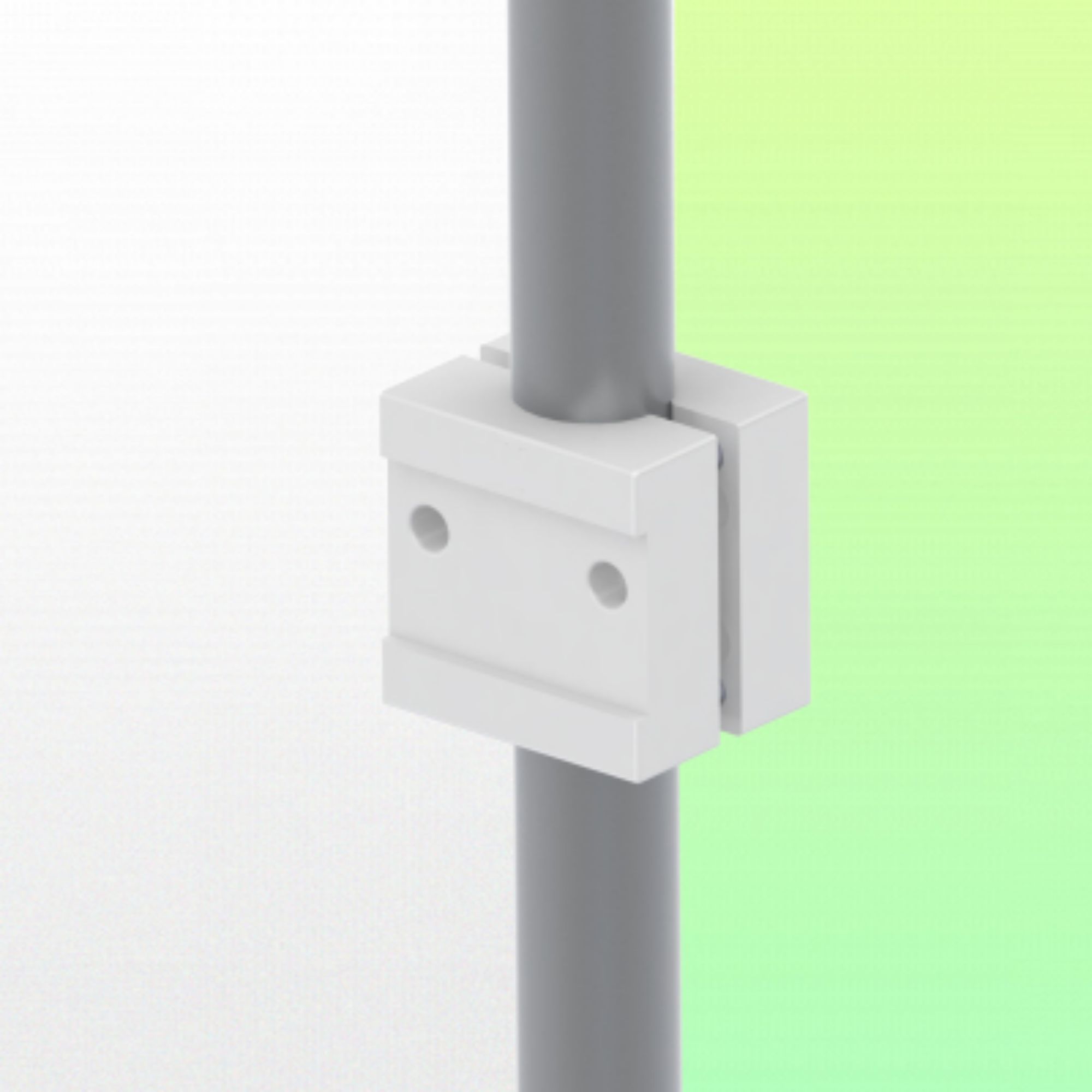

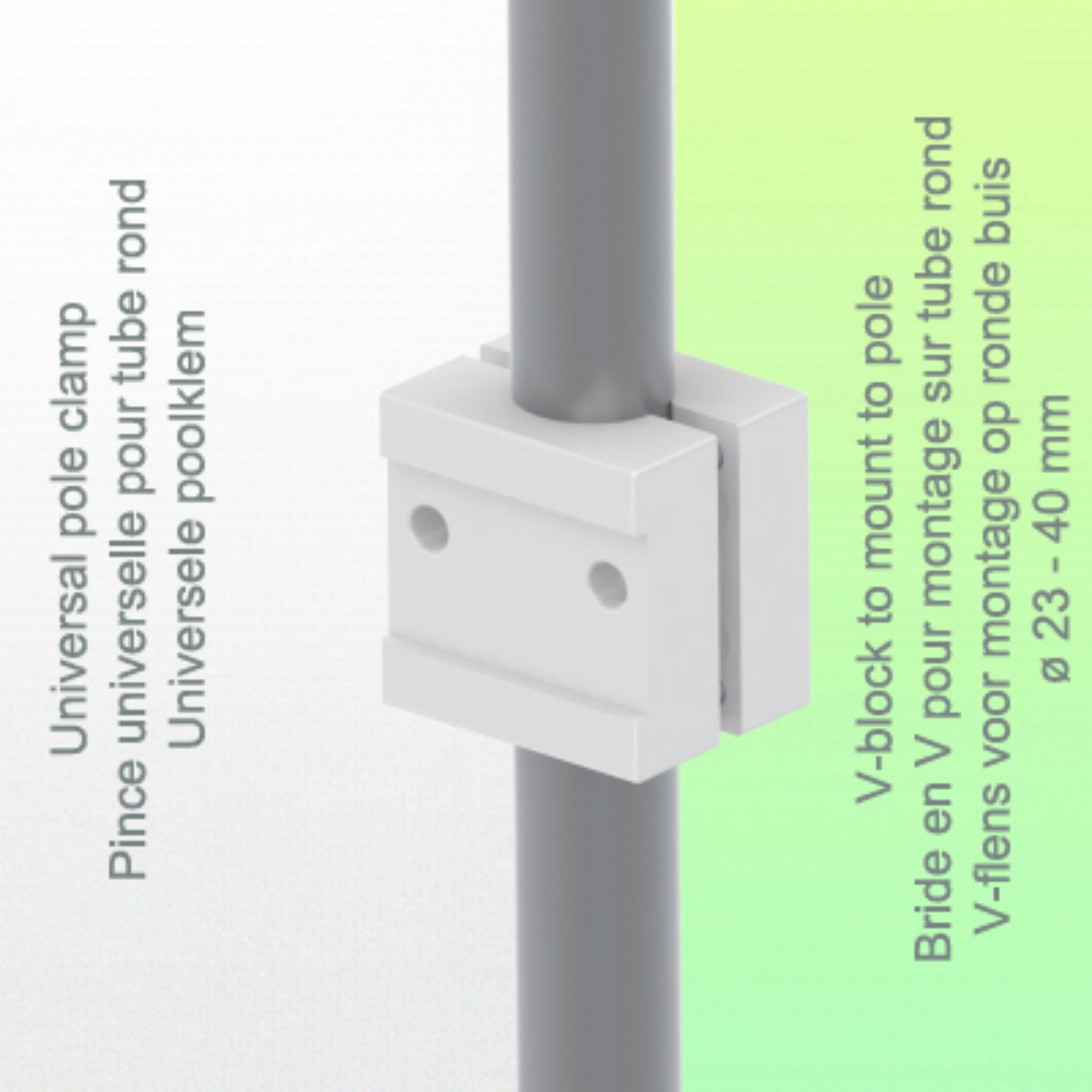

Mounting on variable pole diameter 23 - 40 mm.

Supported weight balance scale from 4 to 9 kg.

Compatible with Nihon Kohden monitoring.

Product number: WM 250.206NK - Double medical arm with 5" plunge plate and Nihon Kohden Interface for height-adjustable monitoring,

Mounting on variable pole diameter 23 - 40 mm.

Supported weight balance scale from 4 to 9 kg.

Compatible with nihon Kohden monitoring.

Product sheet PDF

Full cable integration and infection prevention thanks to easy-to-clean surfaces make this arm ideal for emergency care areas. Height adjustment for ergonomic, customised positioning of the monitor.

This Horizontal Double Medical Arm with gas-lift height adjustment enables the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable passage

* Equipotential bonding

* Fixing on the chosen adapter solution

* This gas-operated Double Arm simply slides into the column rail, then adjusts to the required height and locks into place.

* It has a safety stop button for height adjustment, which allows the arm to remain in the chosen position.

* The head of this arm is fitted with a 5'' plunge plate and Nihon Kohden Interface

* Compatible with monitors weighing no more than 4-9 Kg

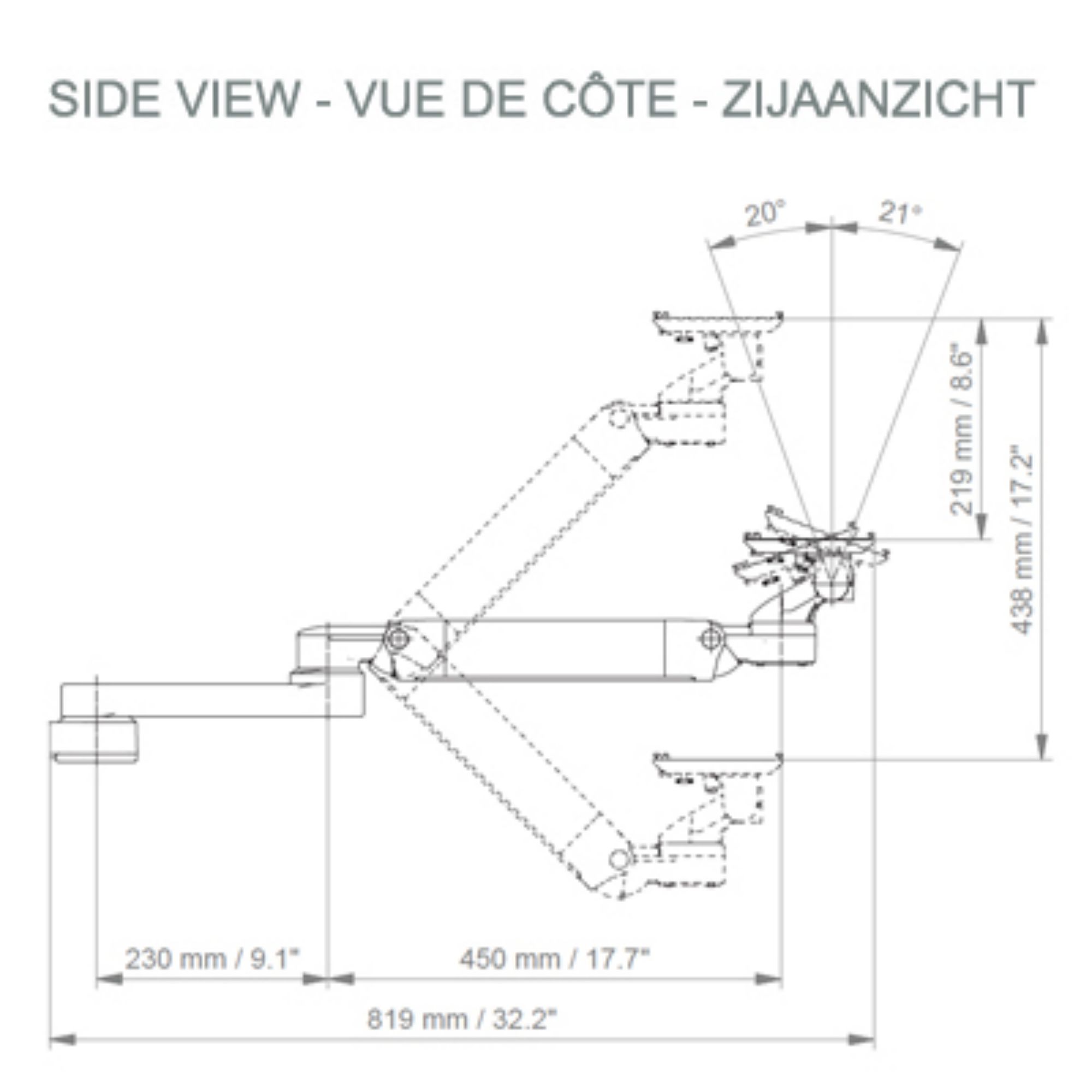

* Monitor tilt: 21° down and 20° up

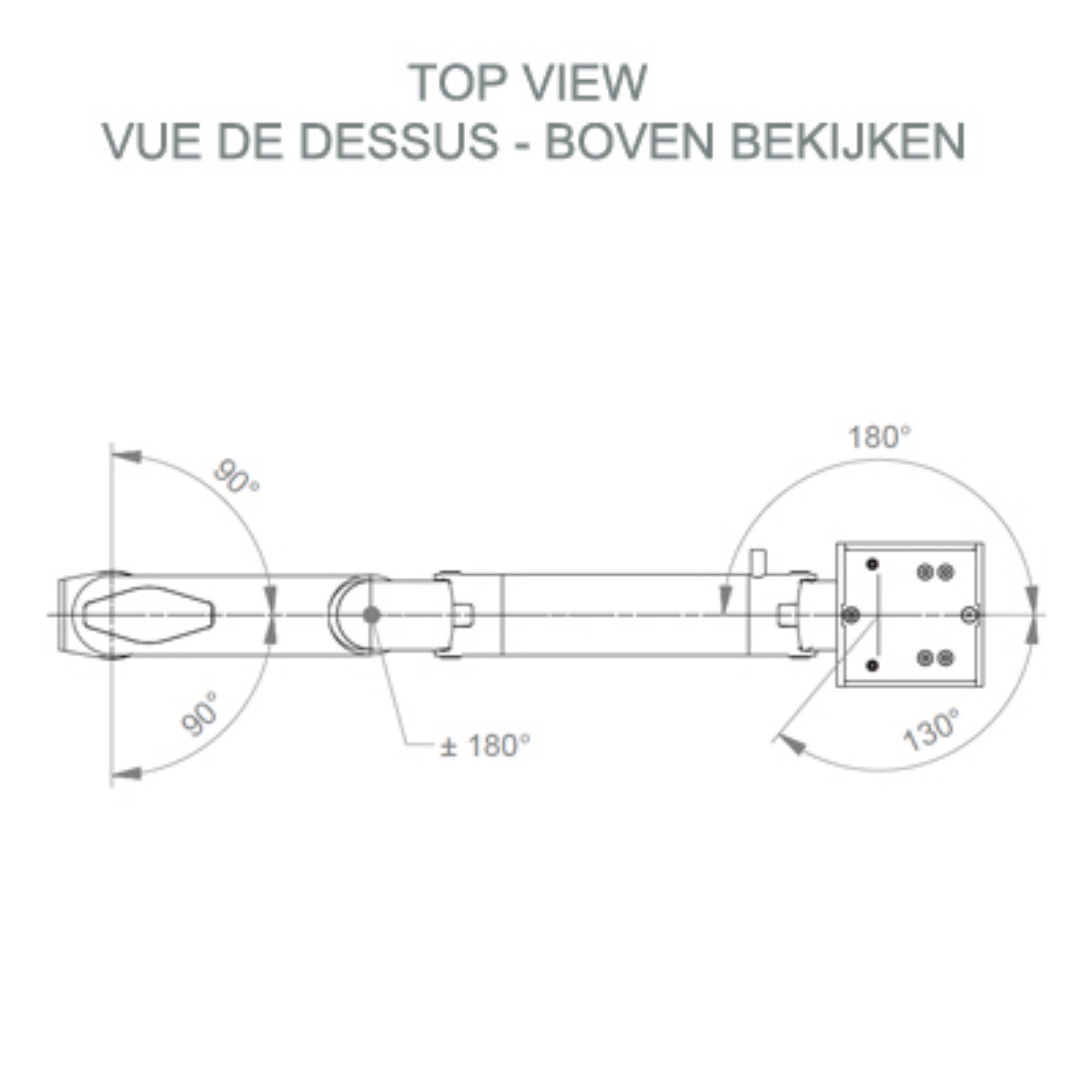

* Screen rotation: 130° right, 180° left.

* Arm rotation: 90° right, 90° left

* Height adjustment: 438 mm

* Total length 819 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
