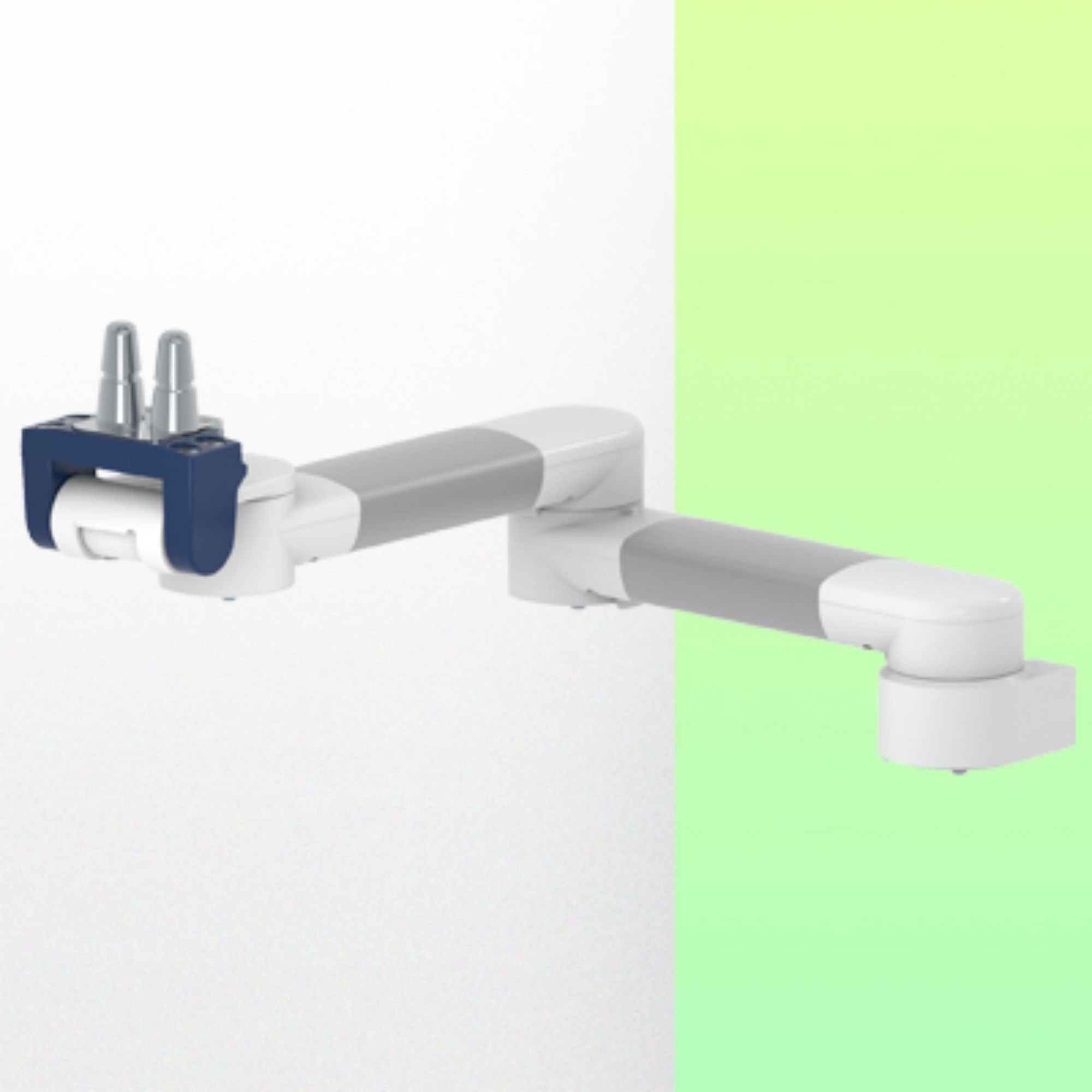

2 x 300 mm swivelling Horizontal Medical Arm for

monitoring Philips Intellivue Séries

(light applications up to 8 Kg)

Vertical Din rail mounting

Product number: WM 260.113 - 2 x 300 mm swivelling Horizontal Medical Arm

for monitoring Philips Intellivue Séries

(light applications up to 8 Kg)

Vertical Din rail mounting

Product sheet PDF

This dual 2 x 300 mm Vertical Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable management

* Lightweight application

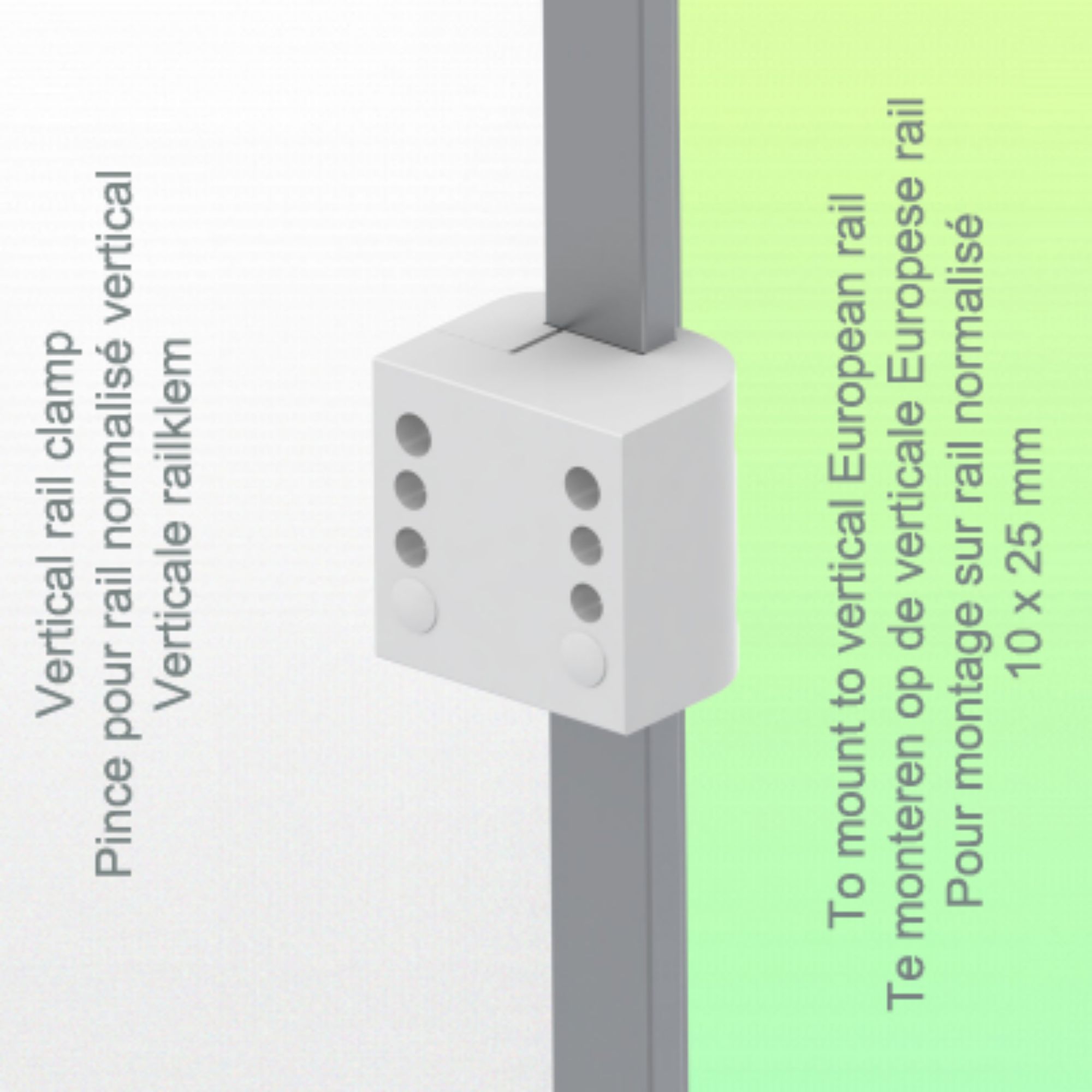

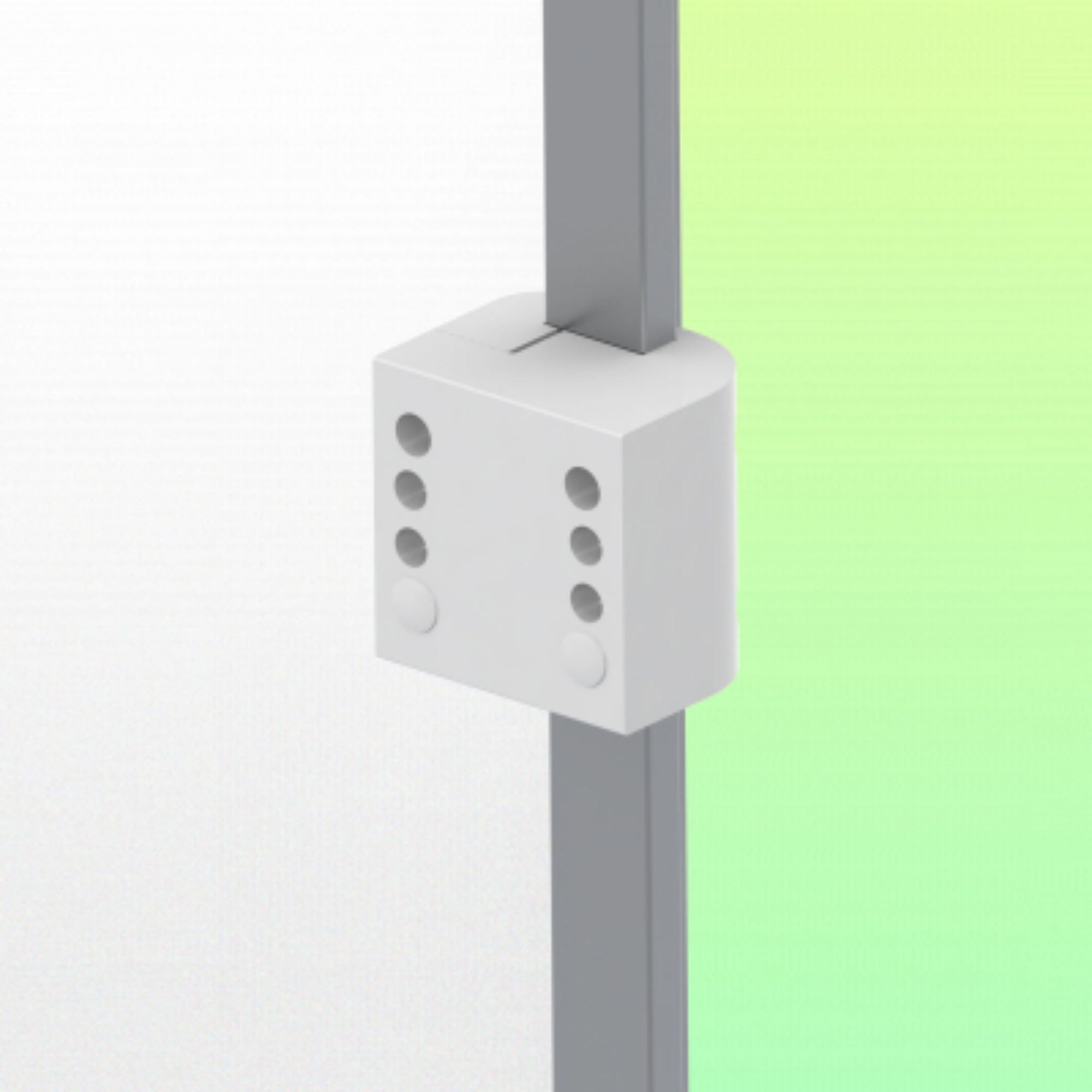

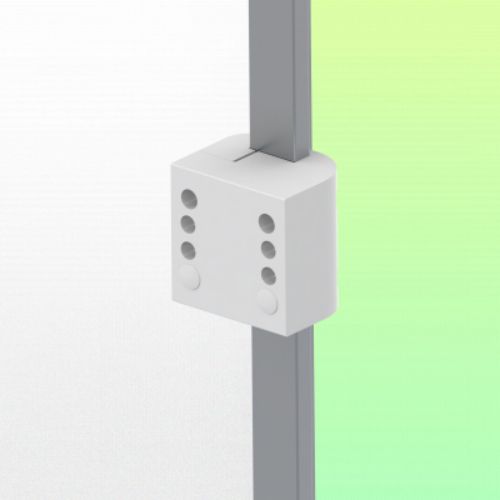

* Mounted on Din rail Vertical Universal clamp included ( 10 x 25 mm, 8 x 35 mm, 10 x 30 mm, 10 x 50 mm )

* This medical arm simply attaches to the Din rail Horizontal and then adjusts to the rail and clamped with the two grips.

* There is no height adjustment.

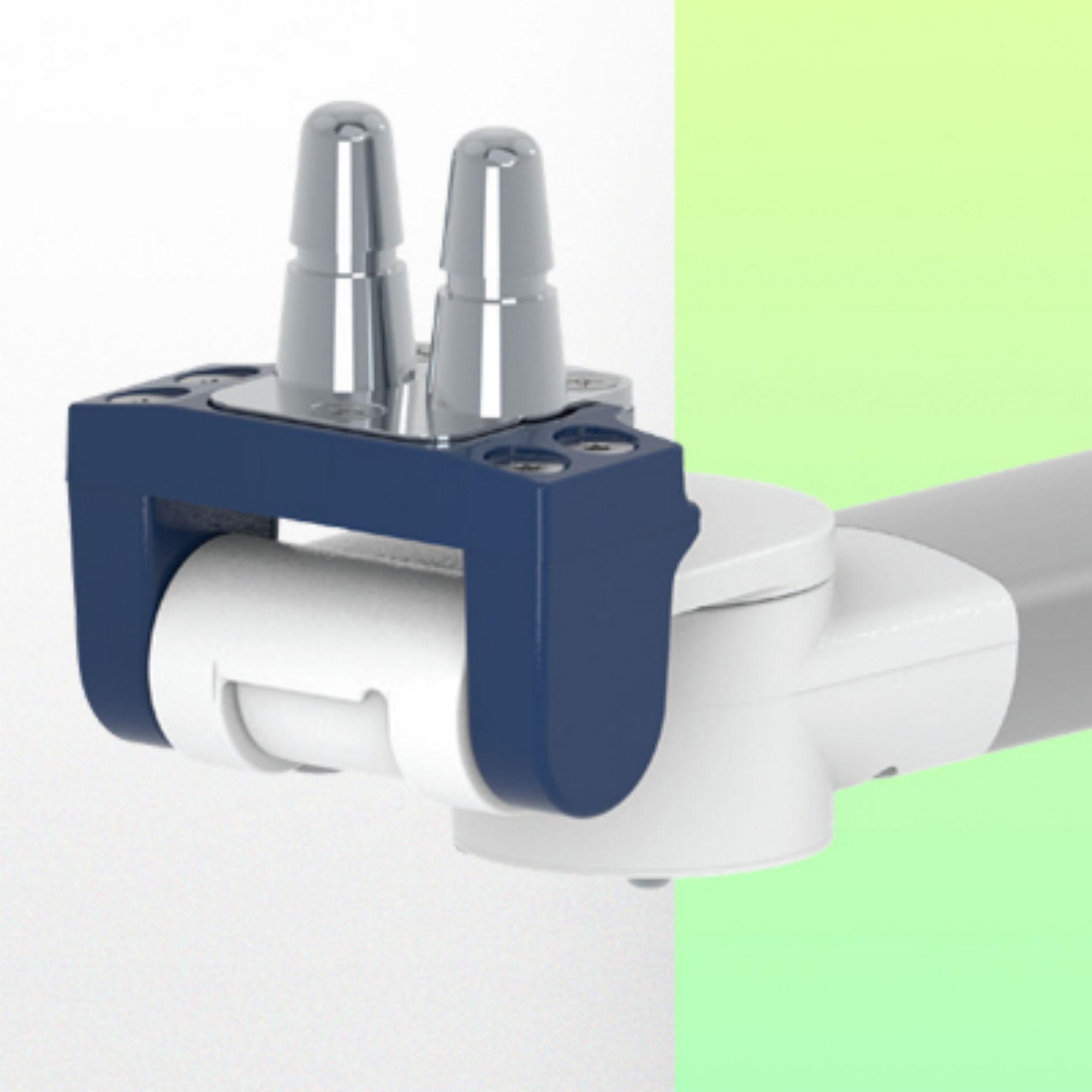

* The head of this arm complies with the mounting standard for Philips Intellivue Series monitors weighing up to 8 kg.

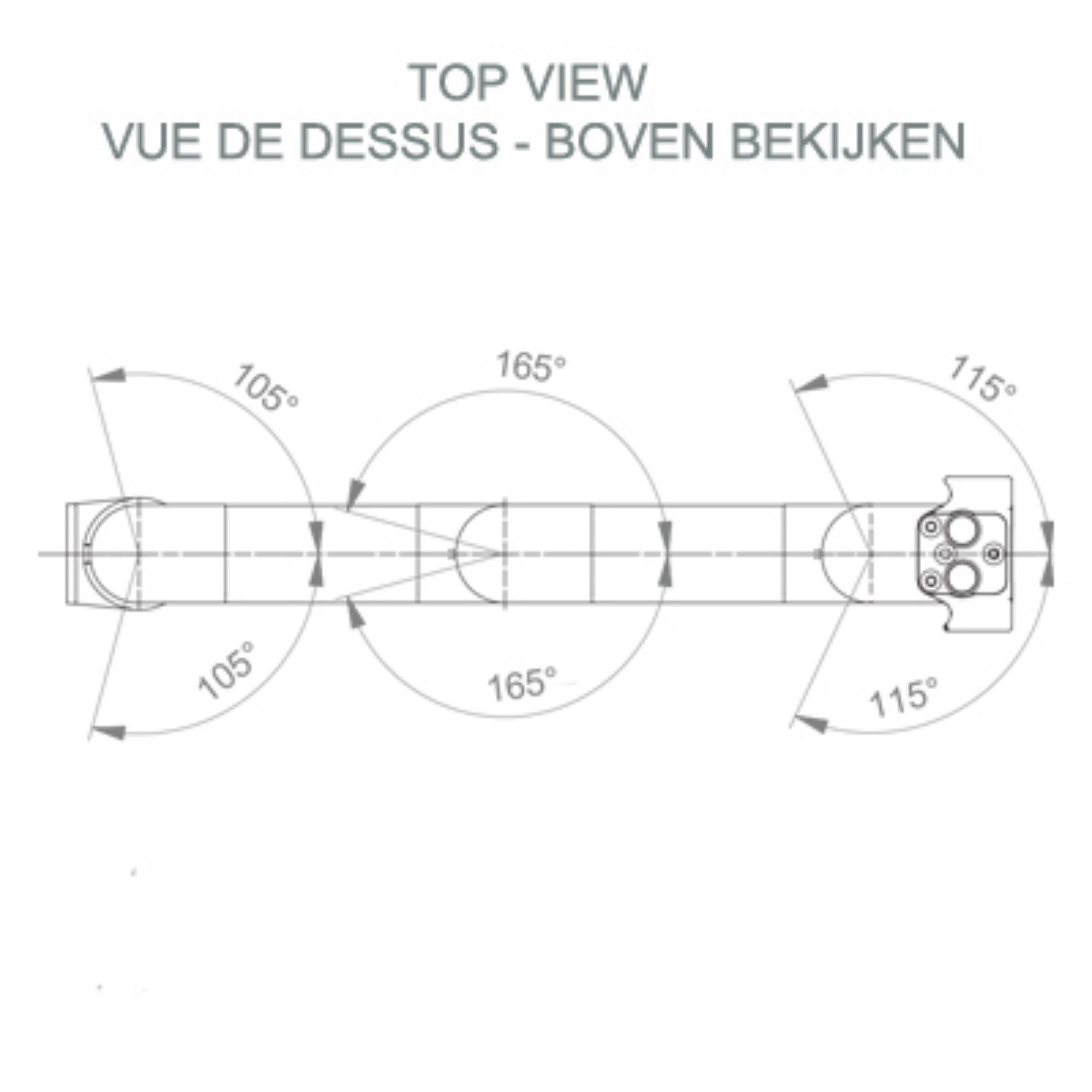

* Monitor tilt: 20° down and 12° up

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

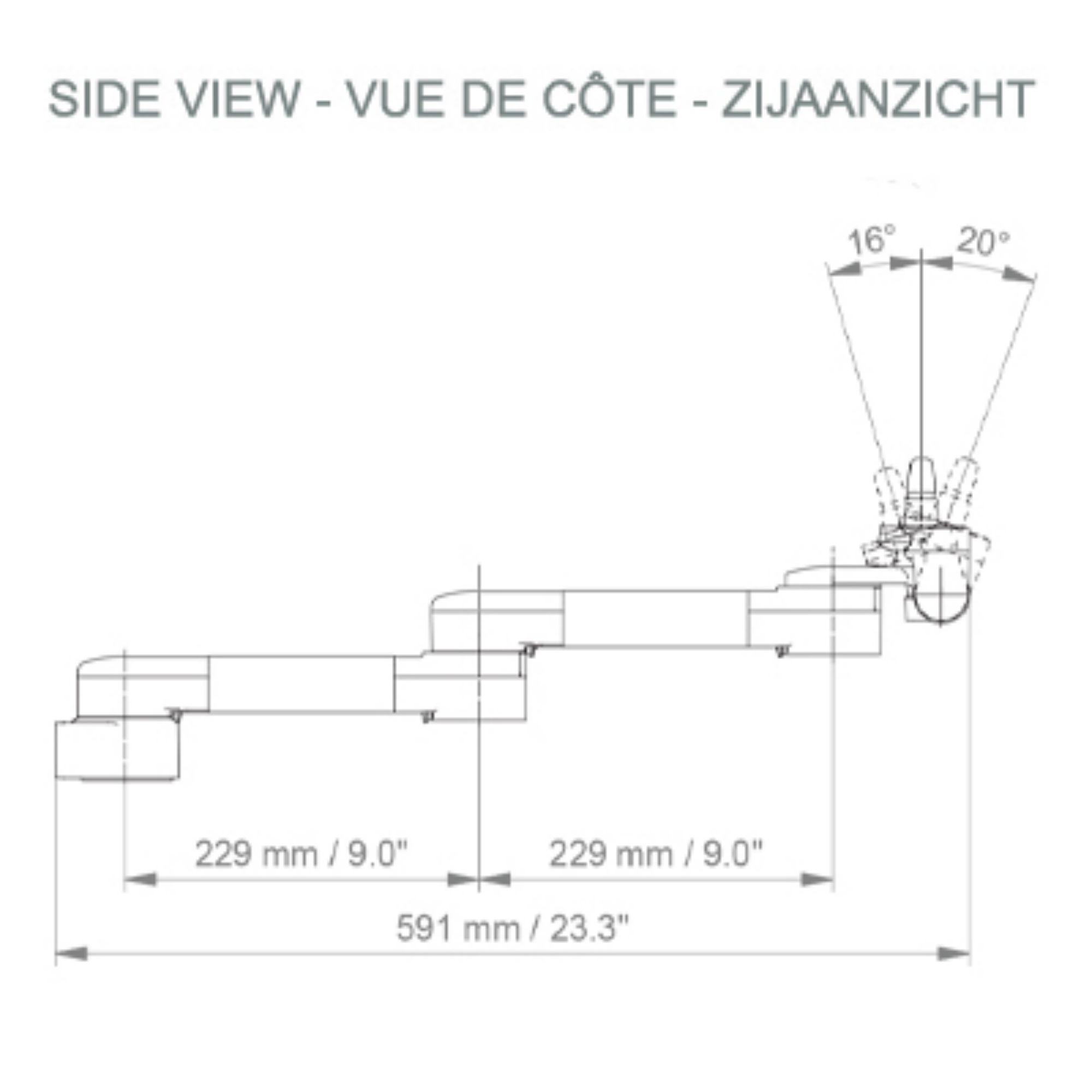

* Total length 591 mm

* Colour RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
