Horizontal swivelling Medical Arm 2 x 300 mm

for monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg)

Variable Pole Mount from 23 to 40 mm

Product number: WM 260.120 - Horizontal swivelling Medical Arm 2 x 300 mm

for monitoring Philips Intellivue Séries

(Heavy Duty applications up to 18 Kg)

Variable Pole Mount from 23 to 40 mm

Product sheet PDF

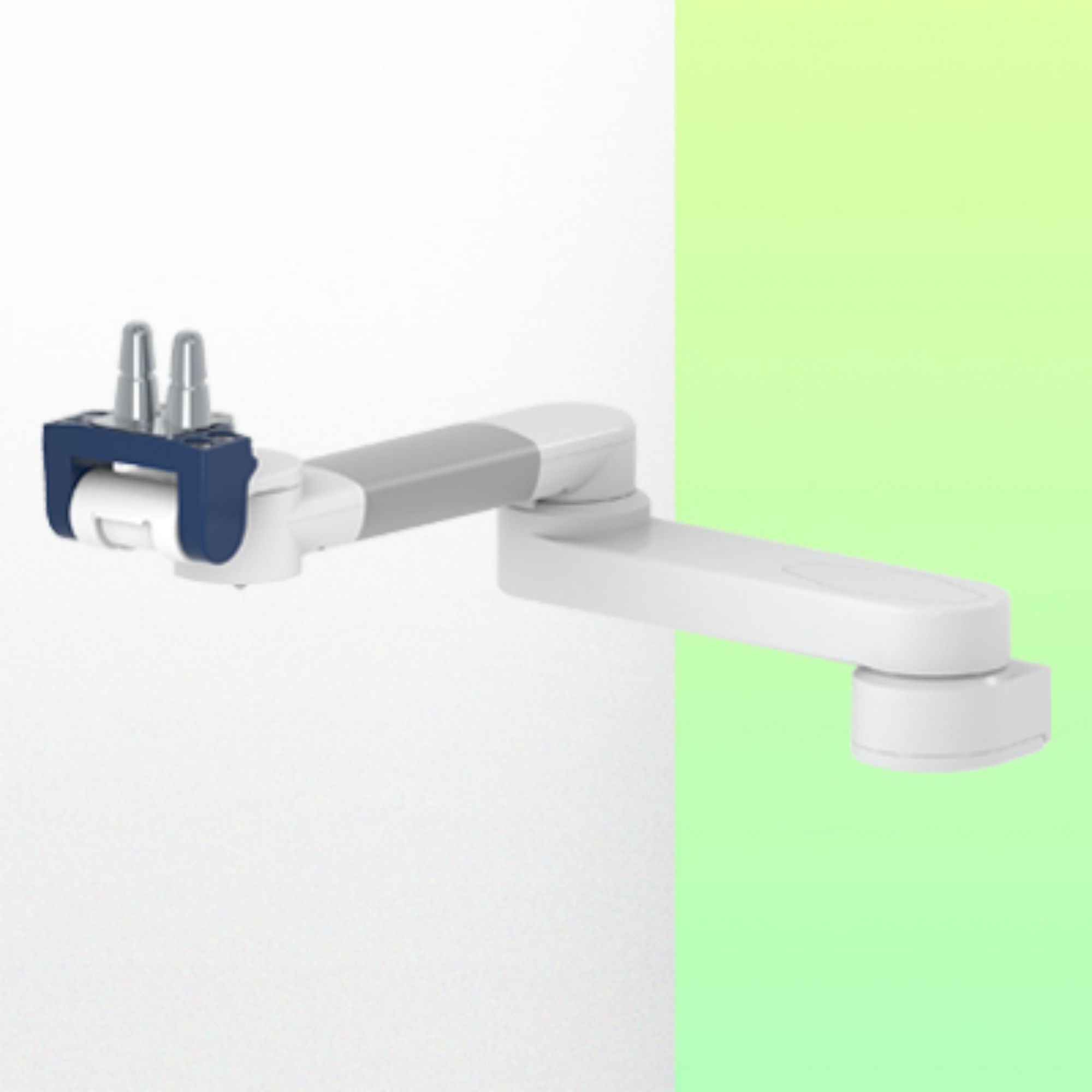

This 2 x 300 mm dual Horizontal Arm allows you to fix, orient and adjust the monitor perfectly.

It is covered with an anti-microbial agent offering hygiene and cleaning in every detail.

Its modern design has been specially designed for healthcare environments.

Technical characteristics:

* Built-in cable passage

* For Heavy Duty Application

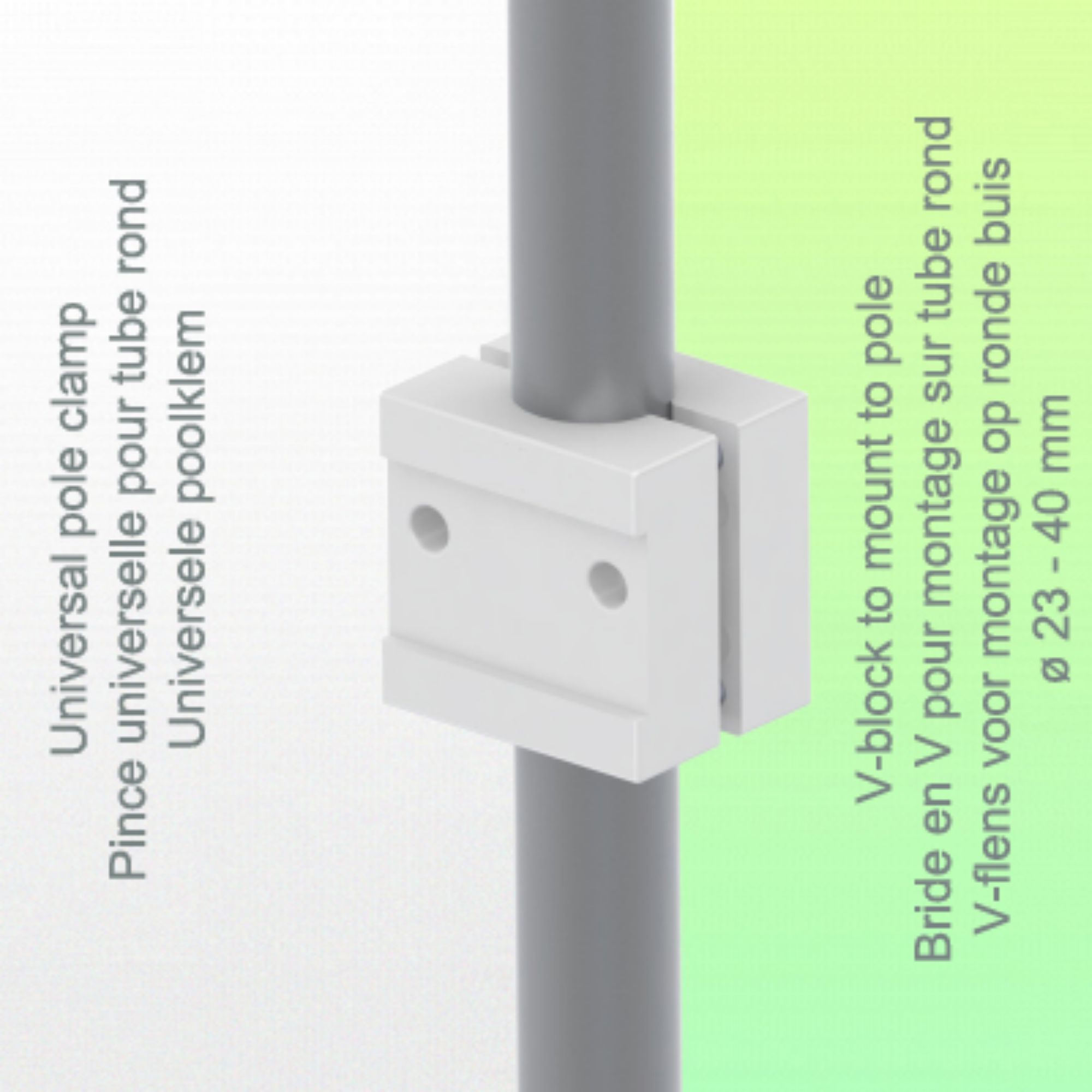

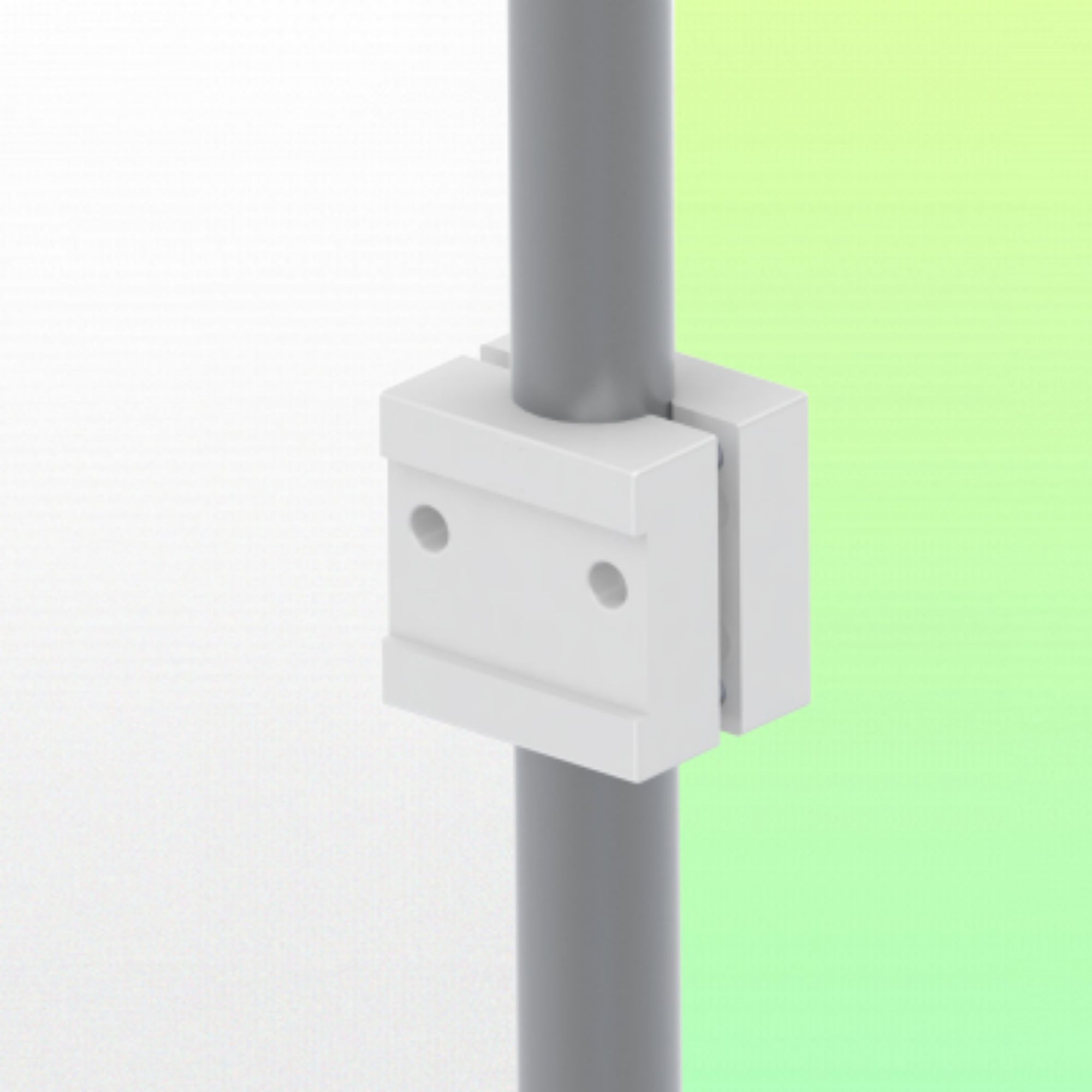

* Variable Pole mounting ø 23 - 40 mm, V-block to mount to pole

* This 2 x 300 mm arm simply pinches on the pole and adjusts to the desired height and fixed.

* It has no height adjustment.

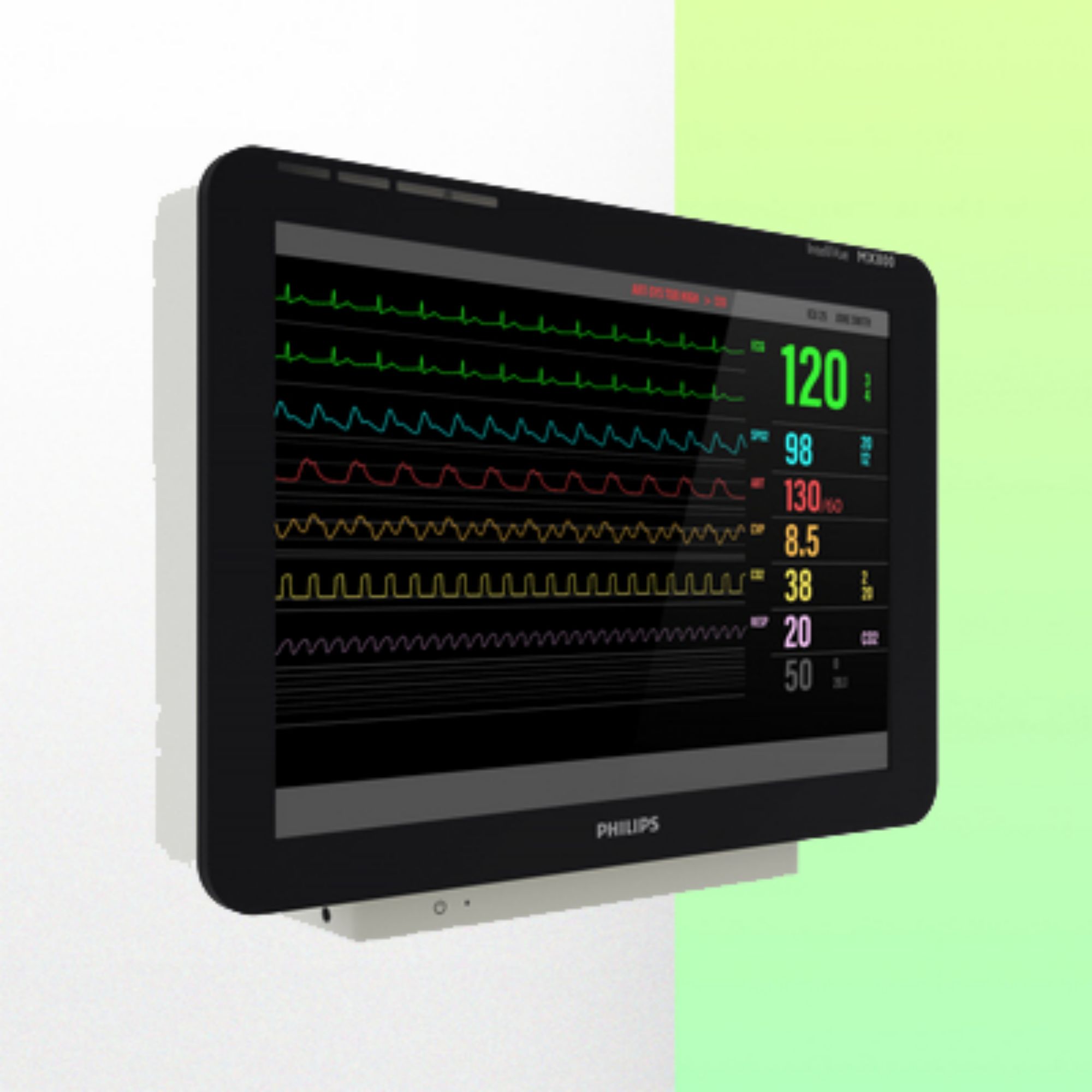

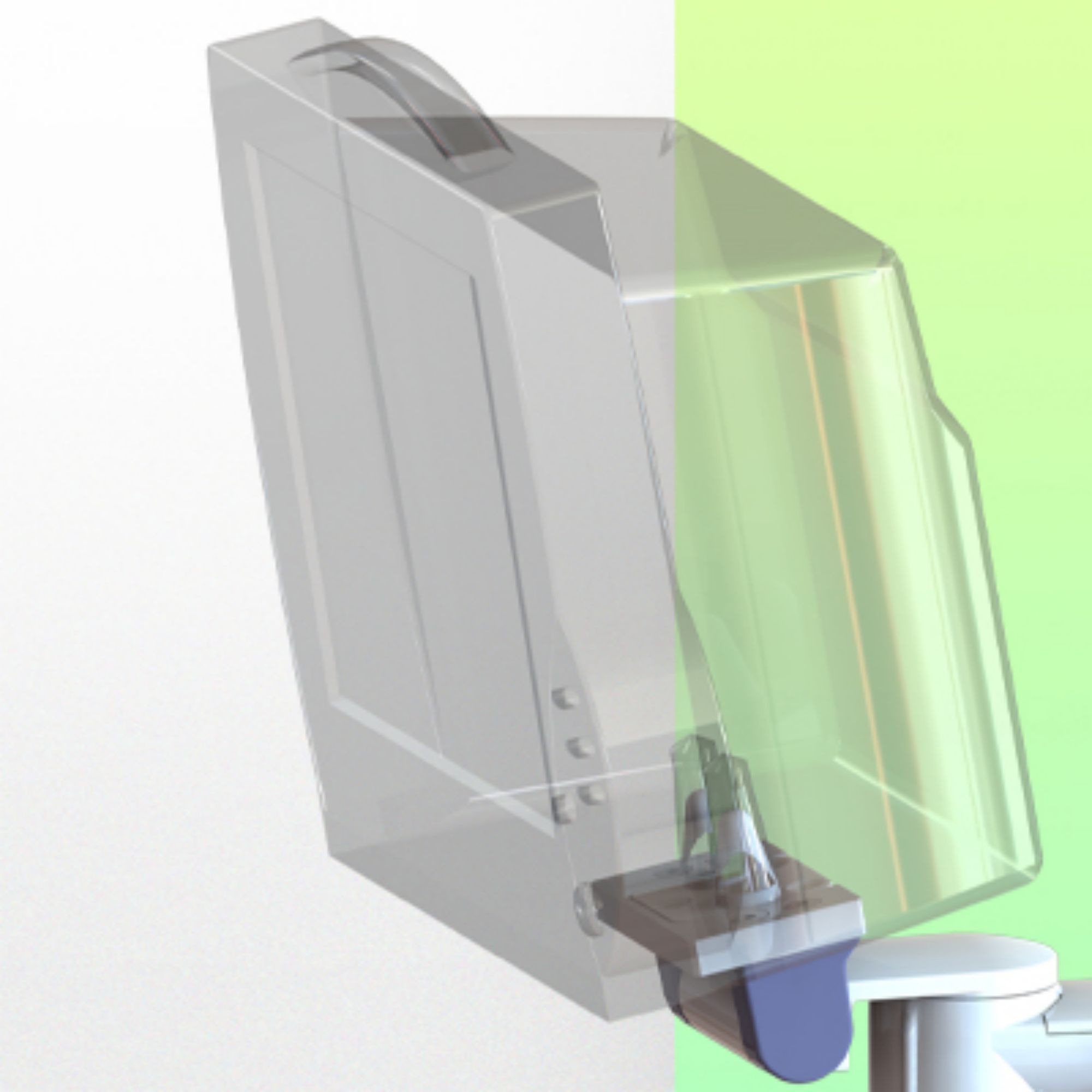

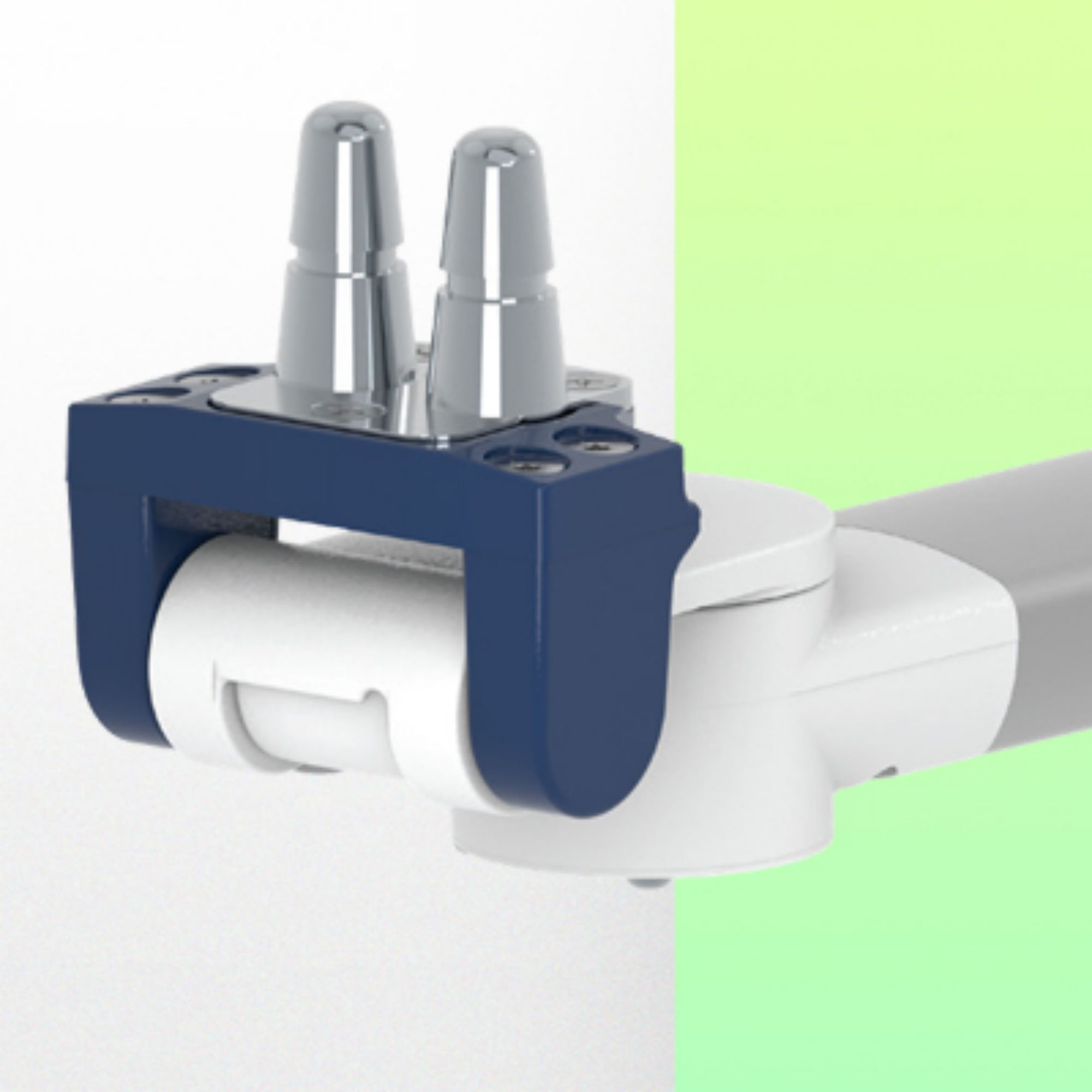

* The head of this arm complies with the Philips Intellivue Series monitor mounting standard, which does not exceed 18 Kg.

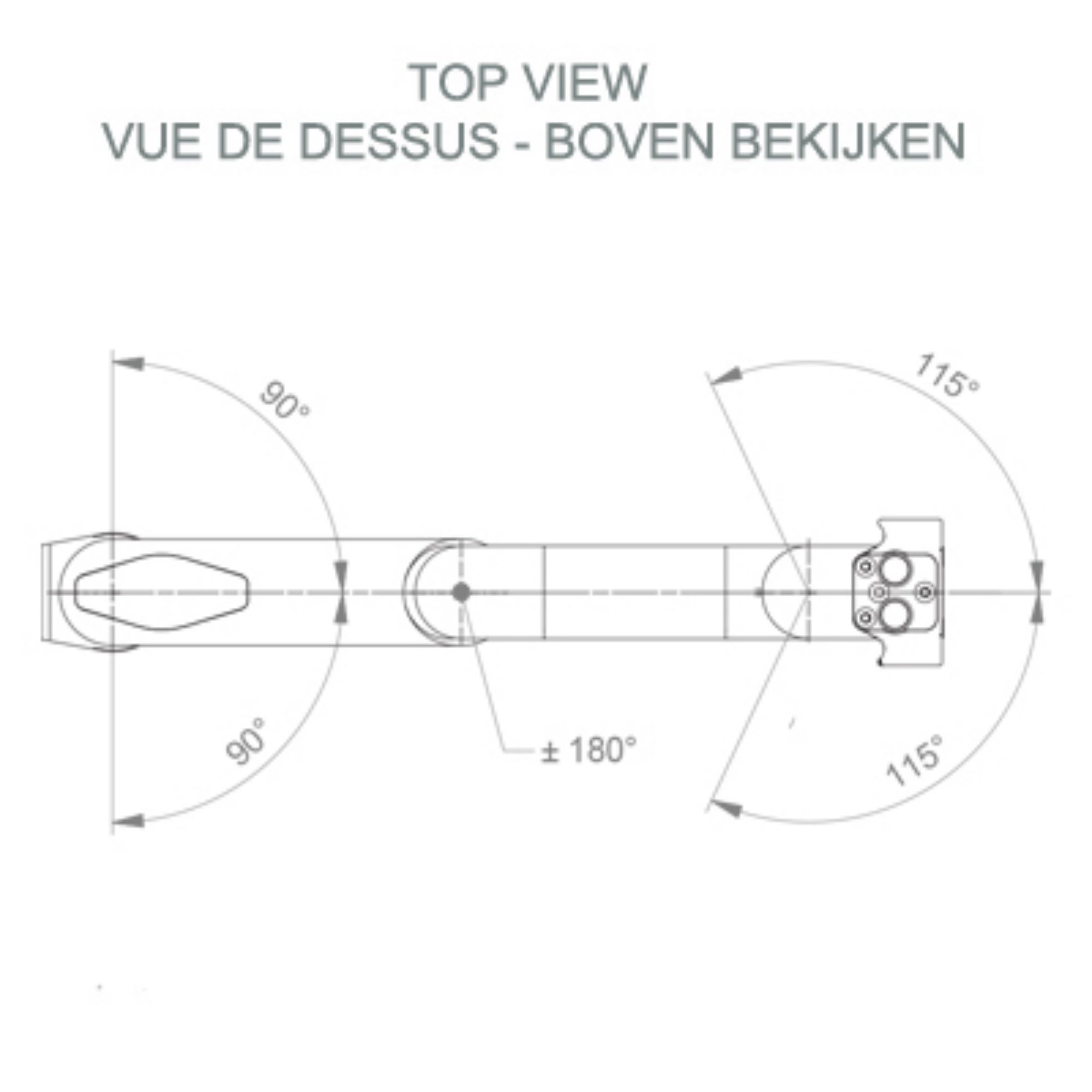

* Monitor tilt: 20° down and 12° up

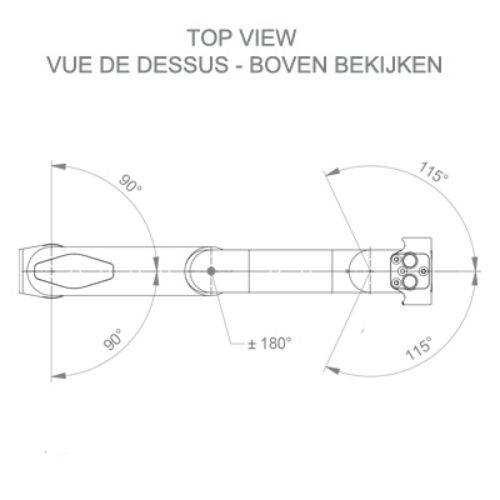

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 90° right, 90° left.

* Total length 594 mm

* Color RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
