Height-adjustable medical arm, length 450 mm

for monitoring Philips Intellivue Séries

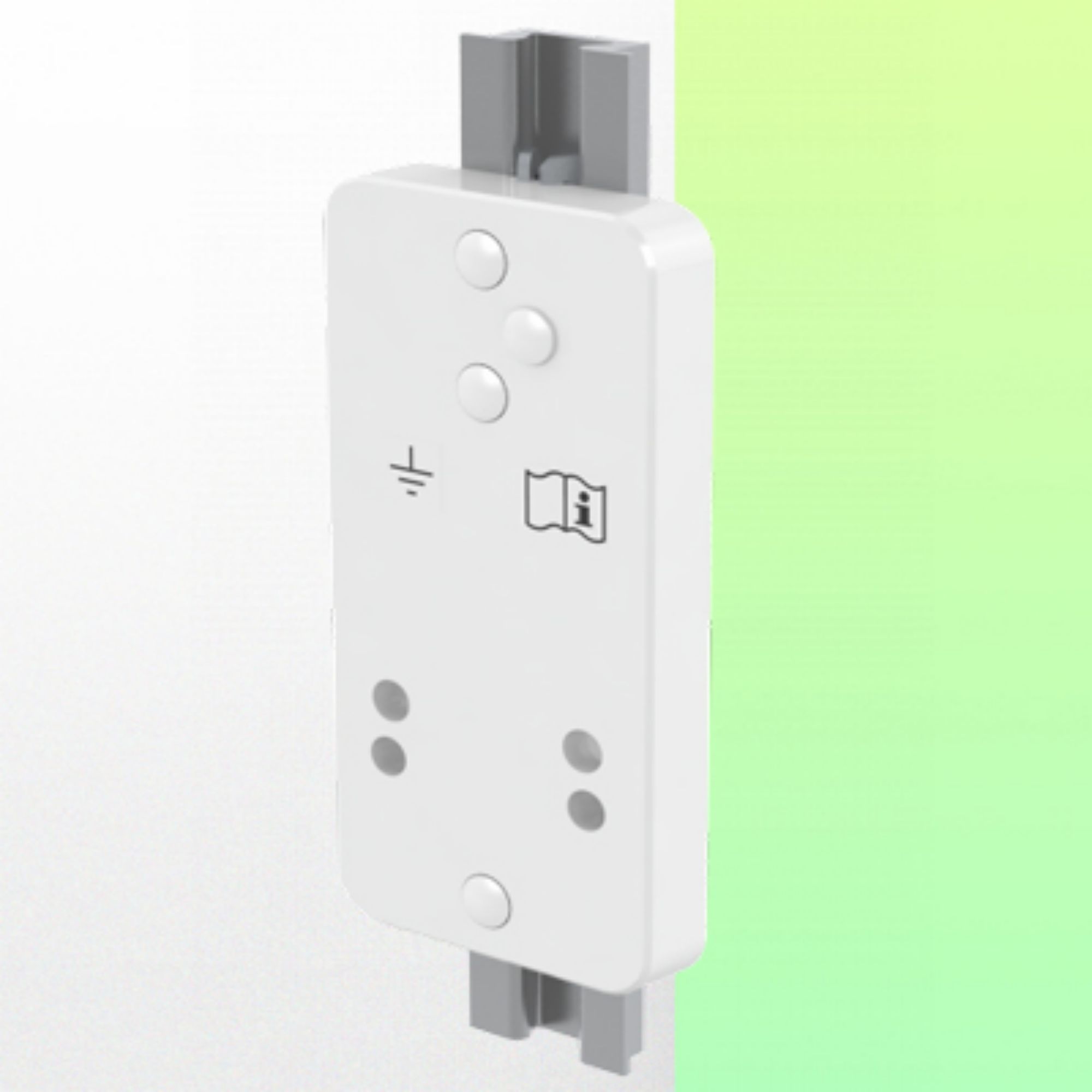

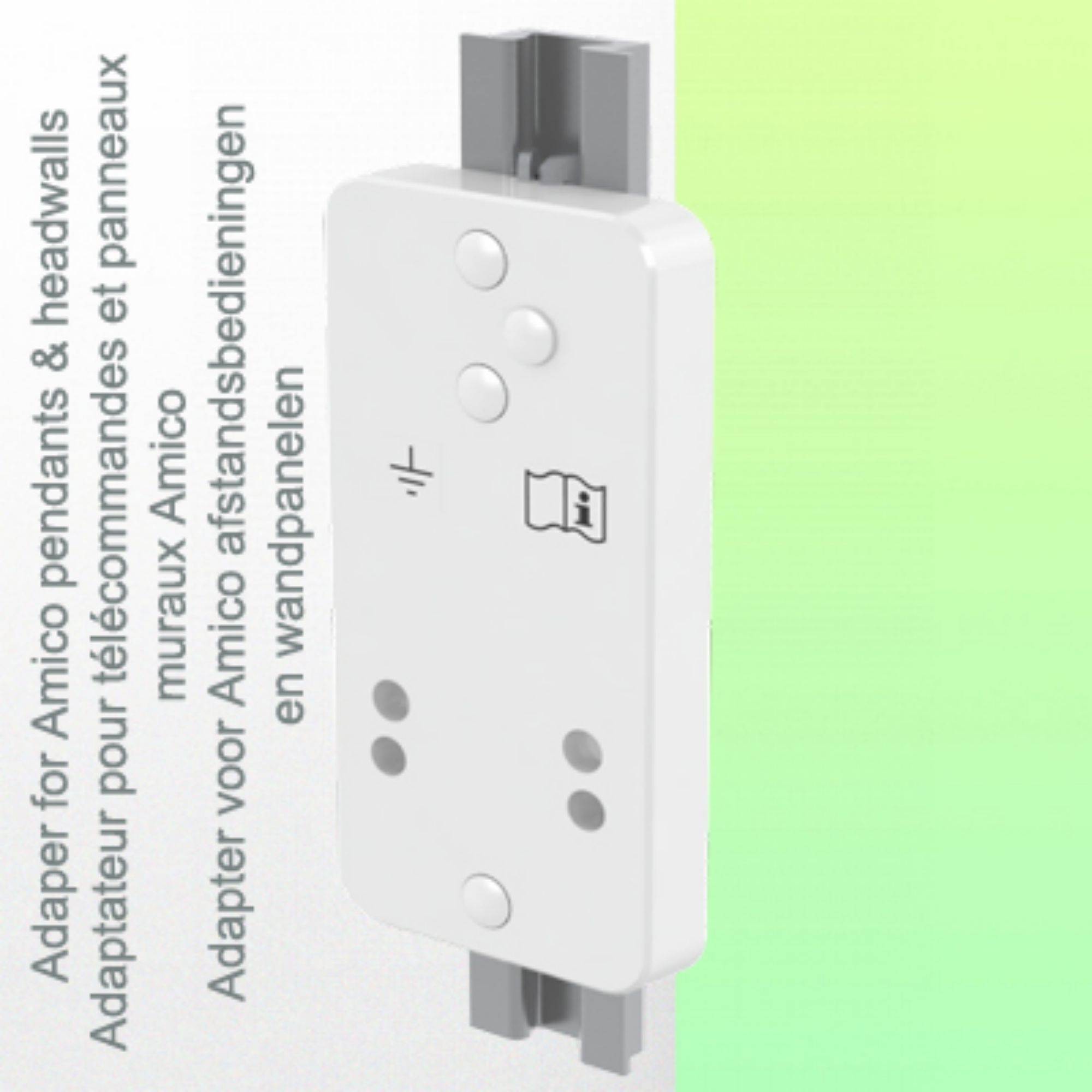

Mounting on Amico medical device pendants and headwalls

Supported weight balancing range from 16 to 22 Kg

Product number: WM 260.174 - Height-adjustable medical arm, length 450 mm

for monitoring Philips Intellivue Séries

Mounting on Amico medical device pendants and headwalls

Supported weight balancing range from 16 to 22 Kg

Product sheet PDF

Full cable integration and infection prevention thanks to easy-to-clean surfaces make this arm ideal for emergency care areas.

Height adjustment for ergonomic, customised positioning of the monitor.

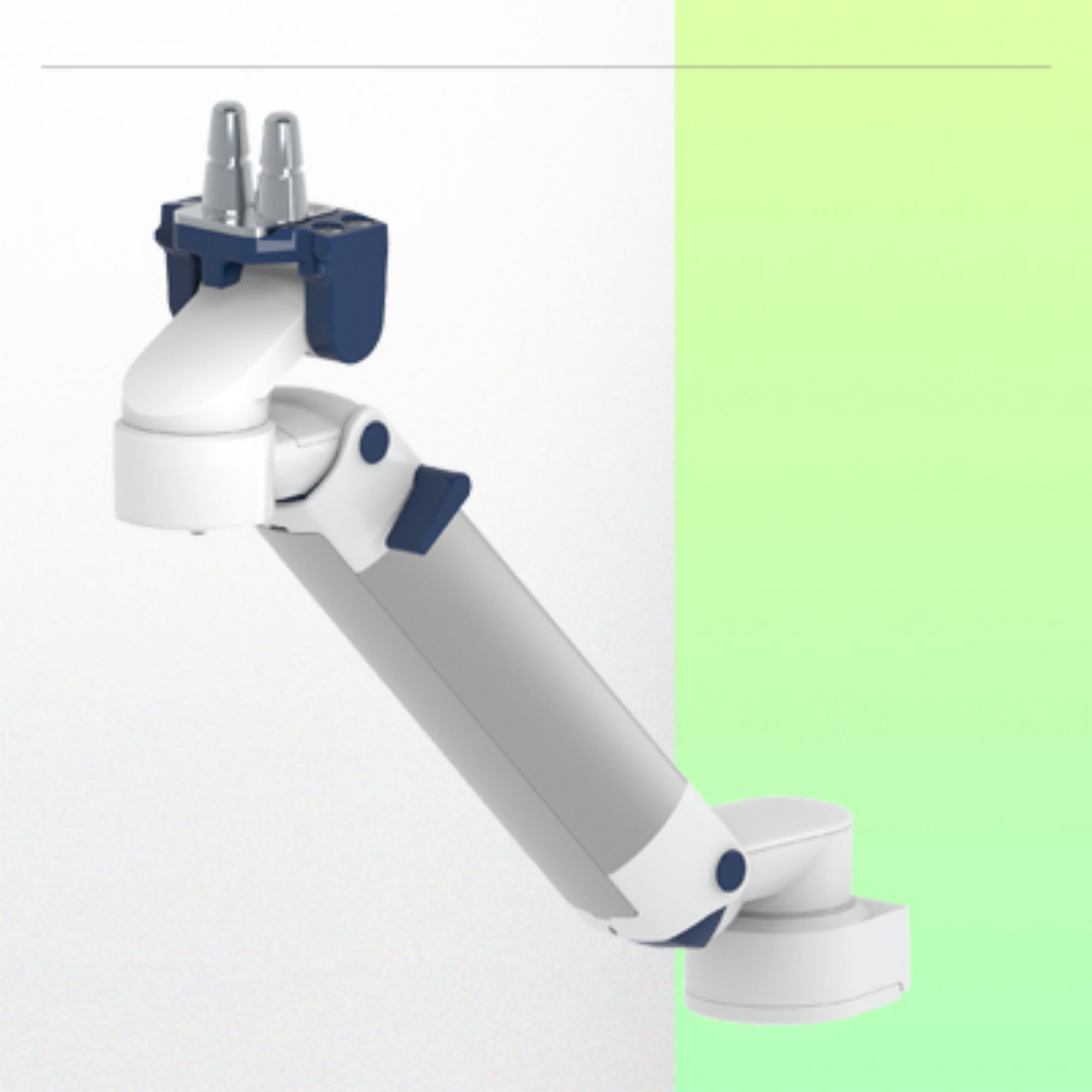

This 450 mm Horizontal Medical Arm with gas-lift height adjustment enables the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integral cable entry

* Equipotential bonding

* This 450 mm Horizontal Arm with gas spring simply adjusts to the desired height and is fixed.

* It has a safety stop button for height adjustment, allowing the arm to remain in the chosen position.

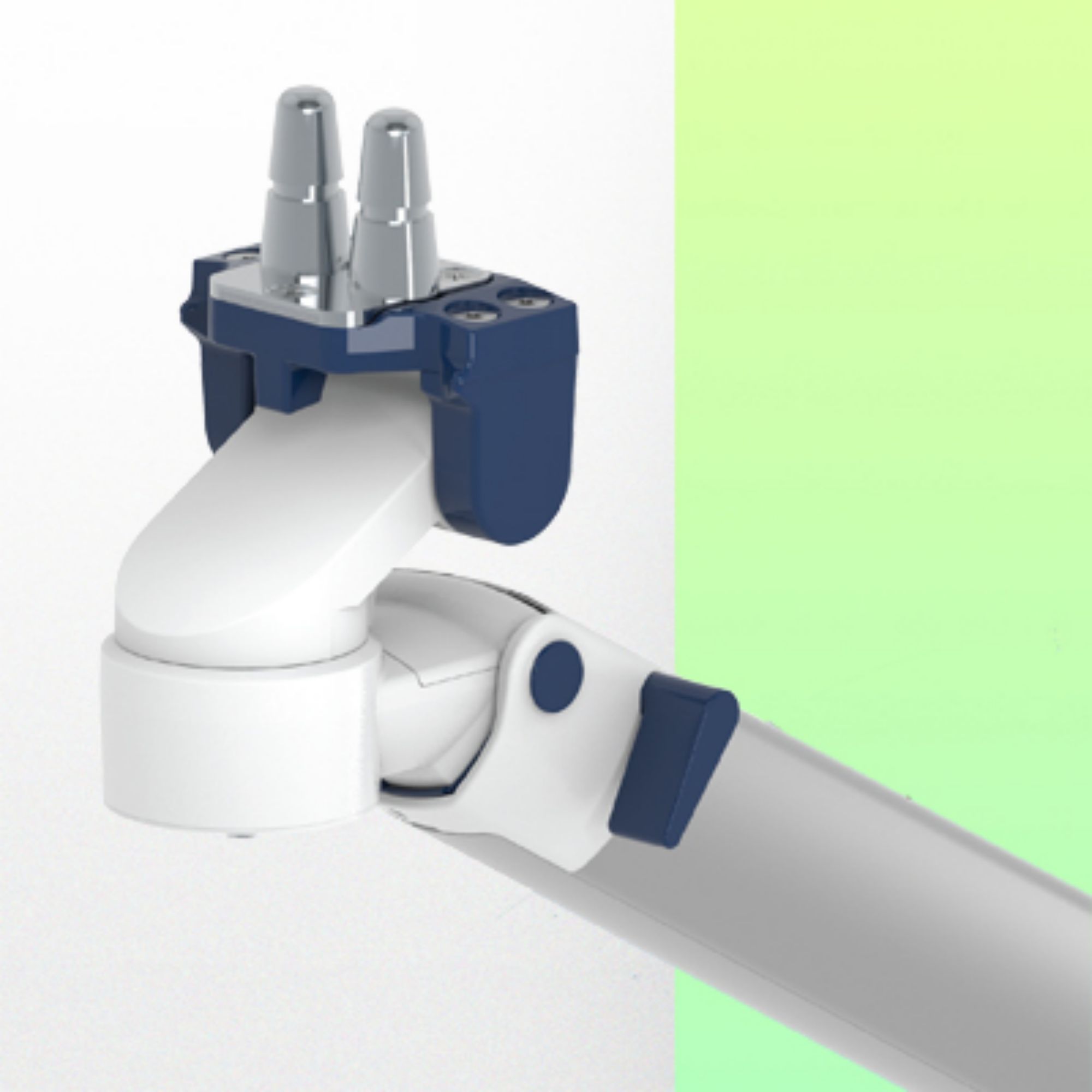

* The head of this arm is compatible with Philips Intellivue Series monitors.

* Suitable for monitors weighing up to 16-22 Kg.

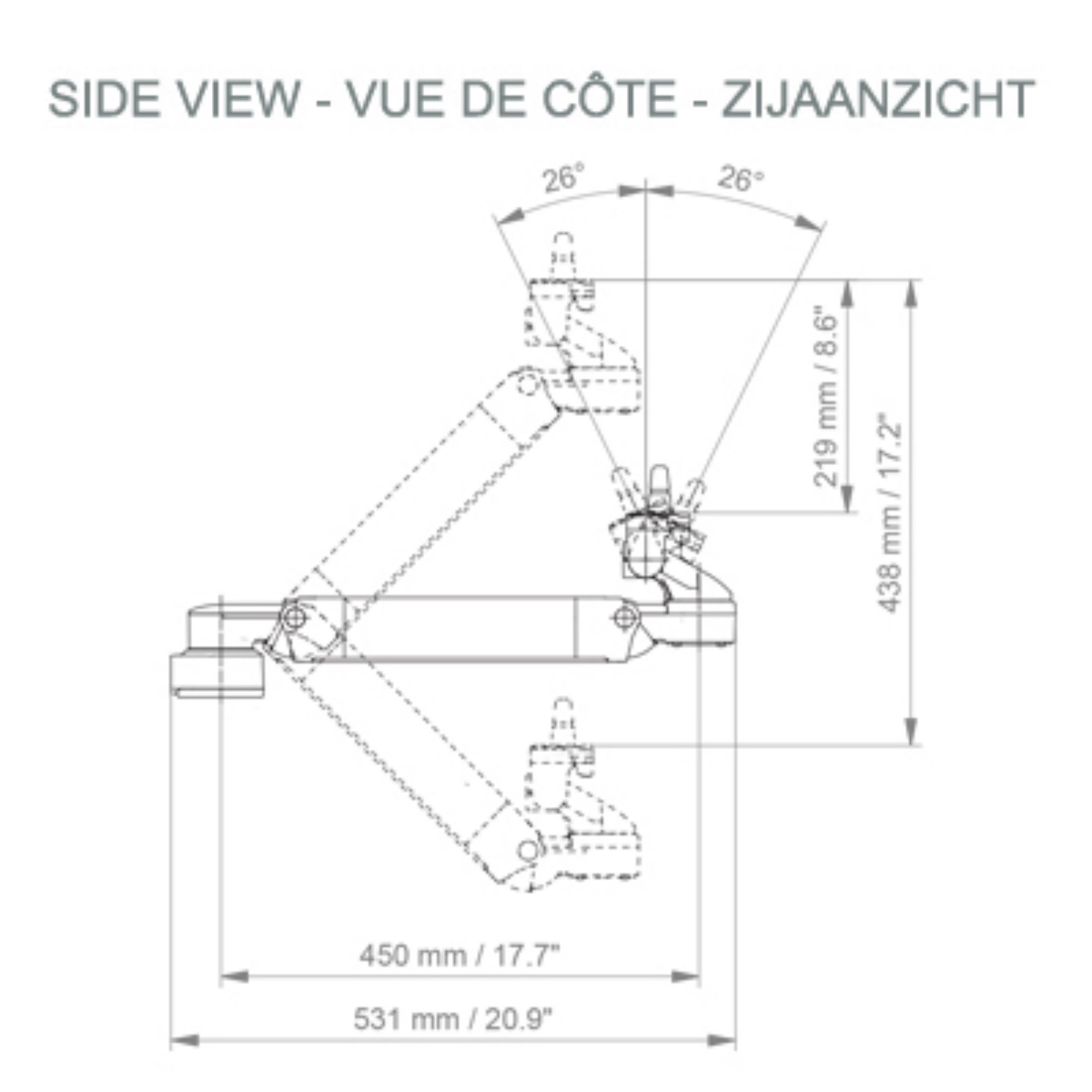

* Monitor tilt: 21° down and 20° up

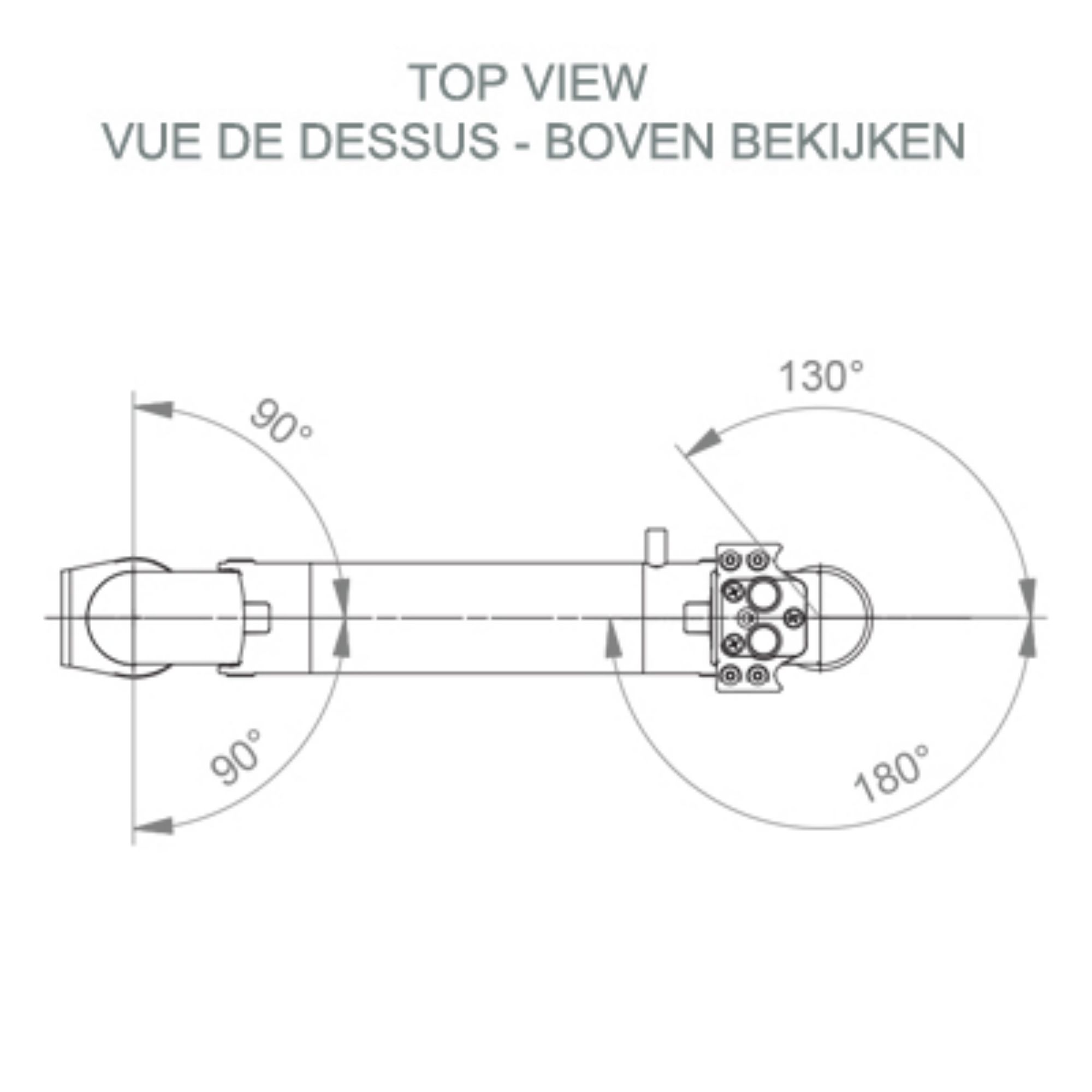

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left

* Height adjustment: 438 mm

* Total length: 589 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
