Extended Height Adjustable Medical Arm, 761 mm

for monitoring Philips Intellivue Séries

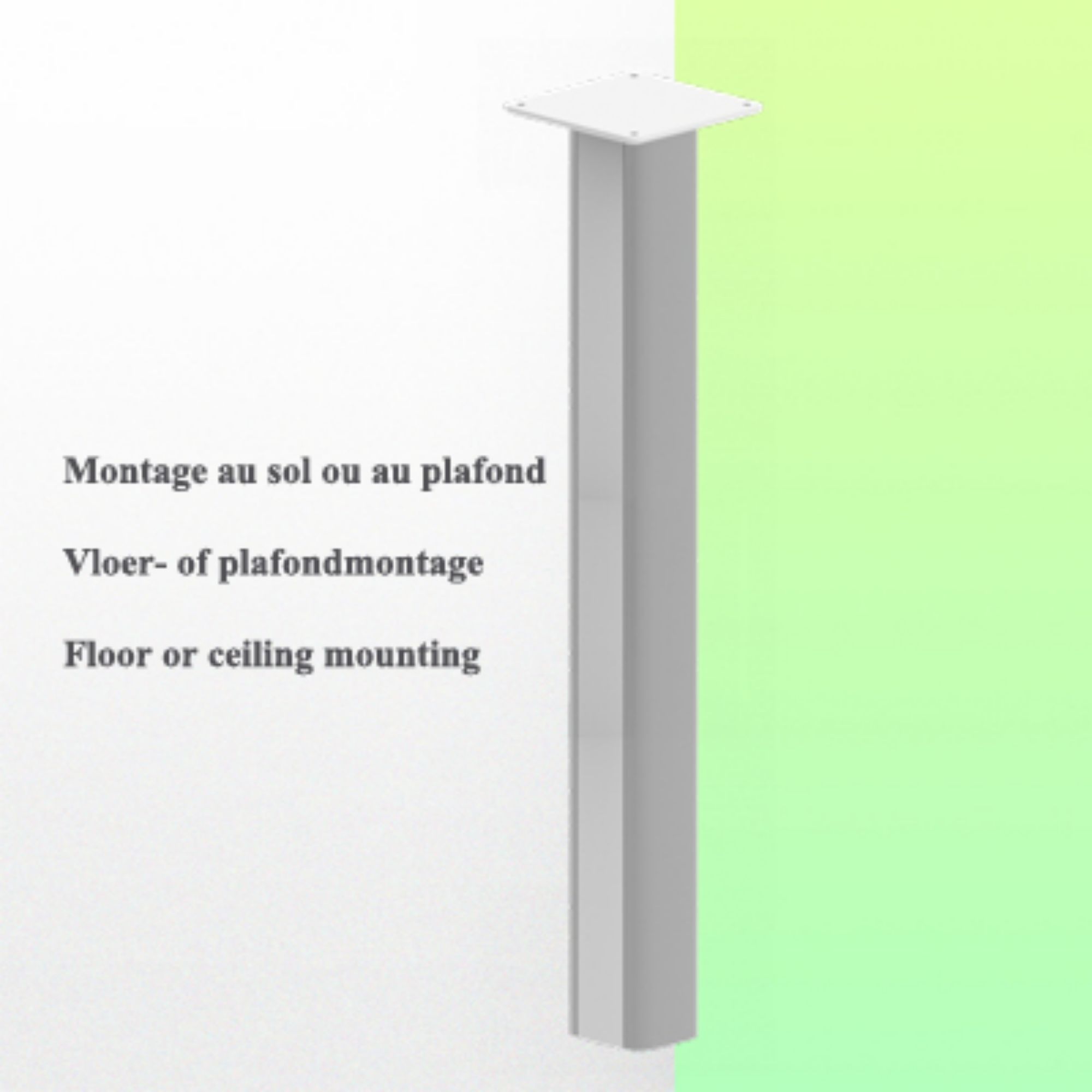

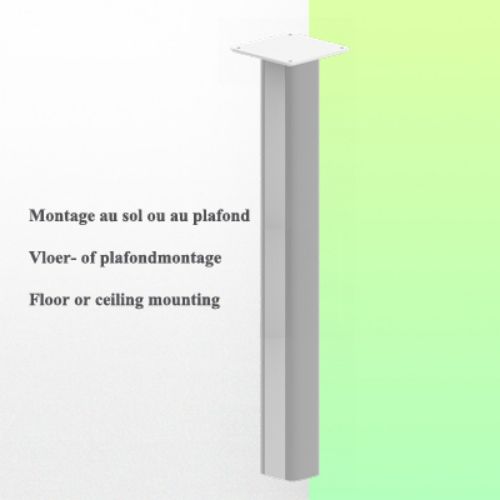

floor or ceiling column mounting

Supported weight balancing range from 2 to 5 Kg

Product number: WM 260.180 - Extended Height Adjustable Medical Arm, 761 mm

for monitoring Philips Intellivue Séries

floor or ceiling column mounting

Supported weight balancing range from 2 to 5 Kg

Product sheet PDF

Full cable integration and infection prevention thanks to easy-to-clean surfaces make this arm ideal for emergency care areas.

Height adjustment for ergonomic, customised positioning of the monitor.

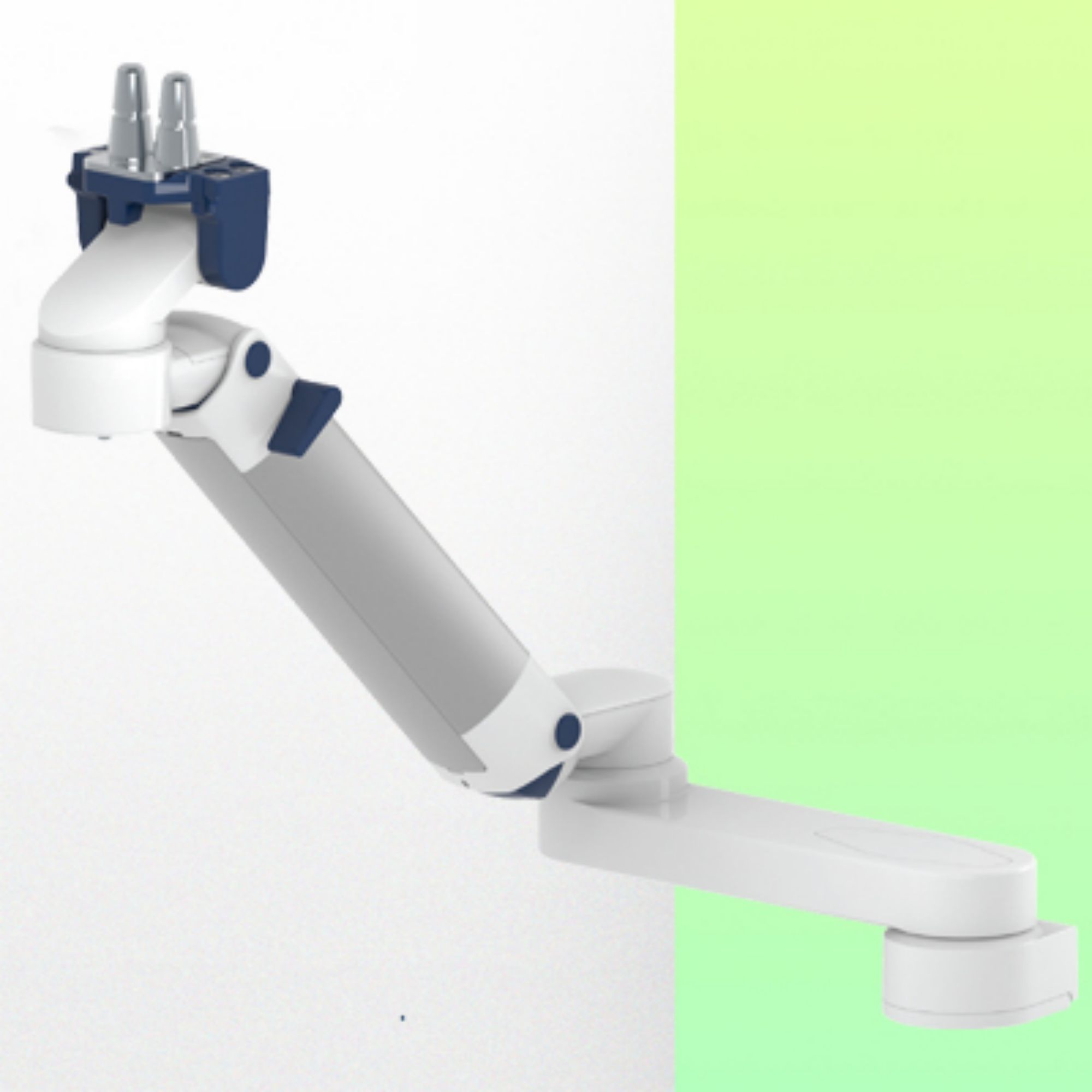

This Horizontal Double Medical Arm with gas-lift height adjustment enables the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable passage

* Equipotential bonding

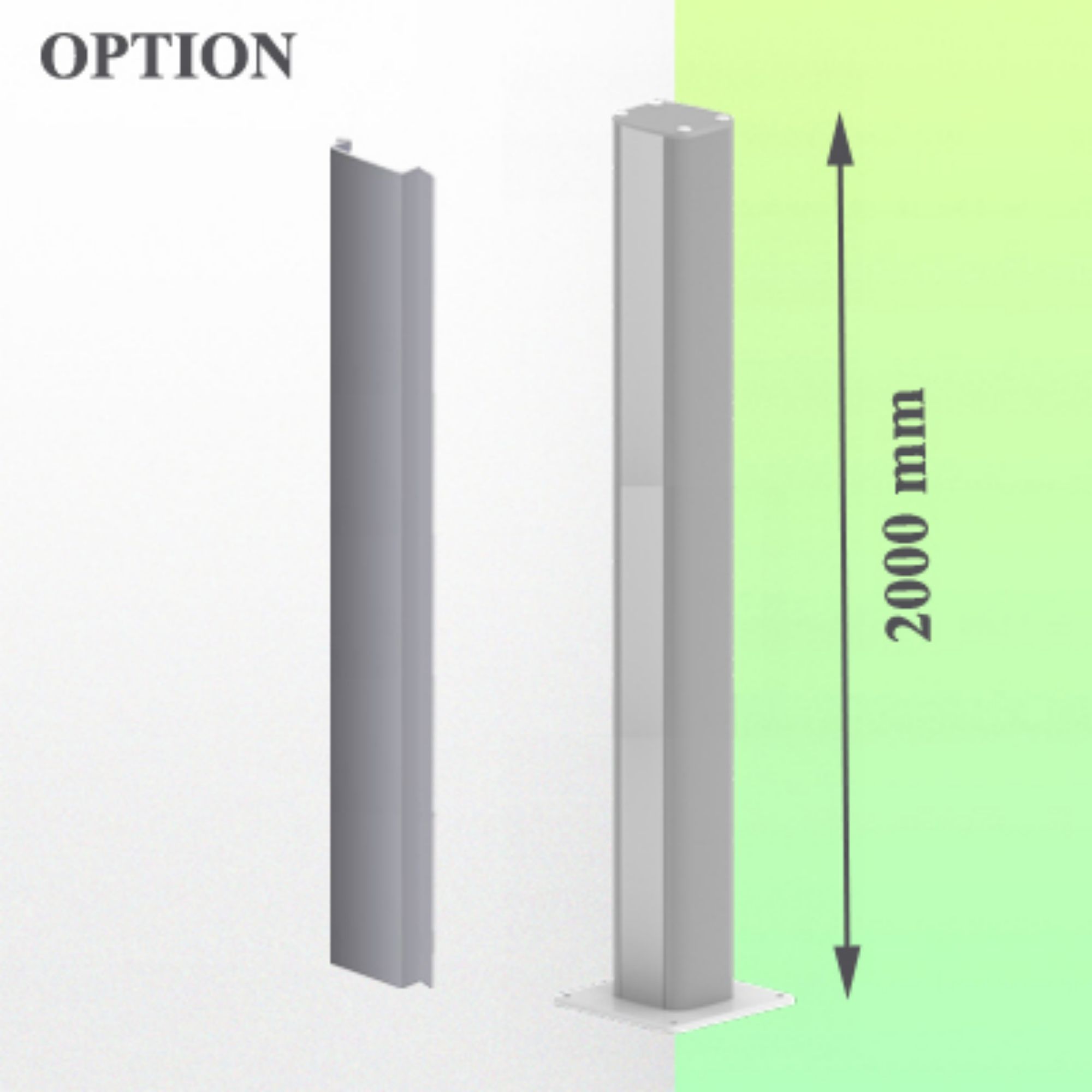

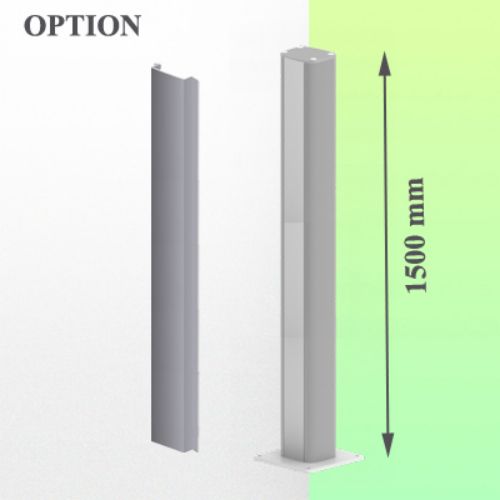

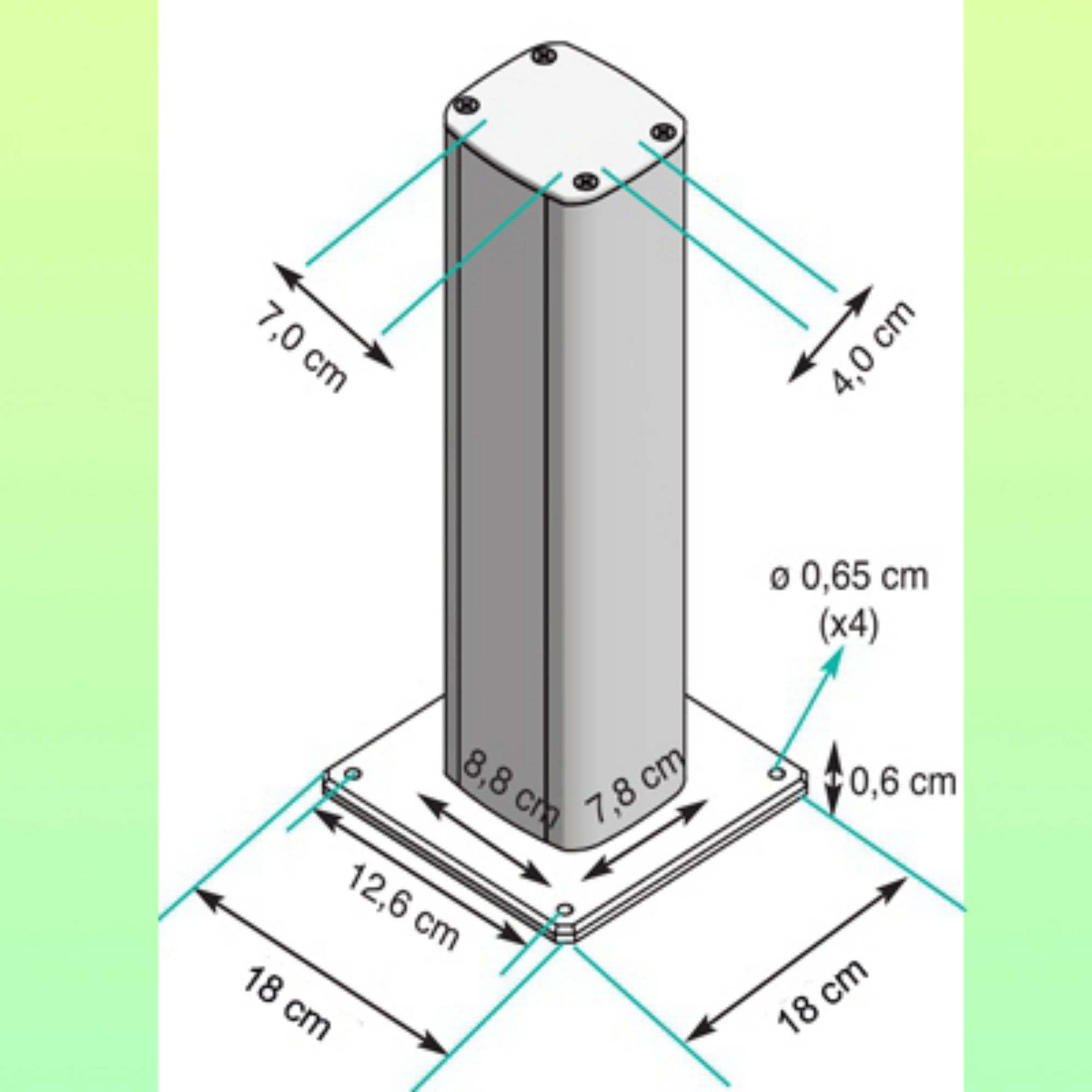

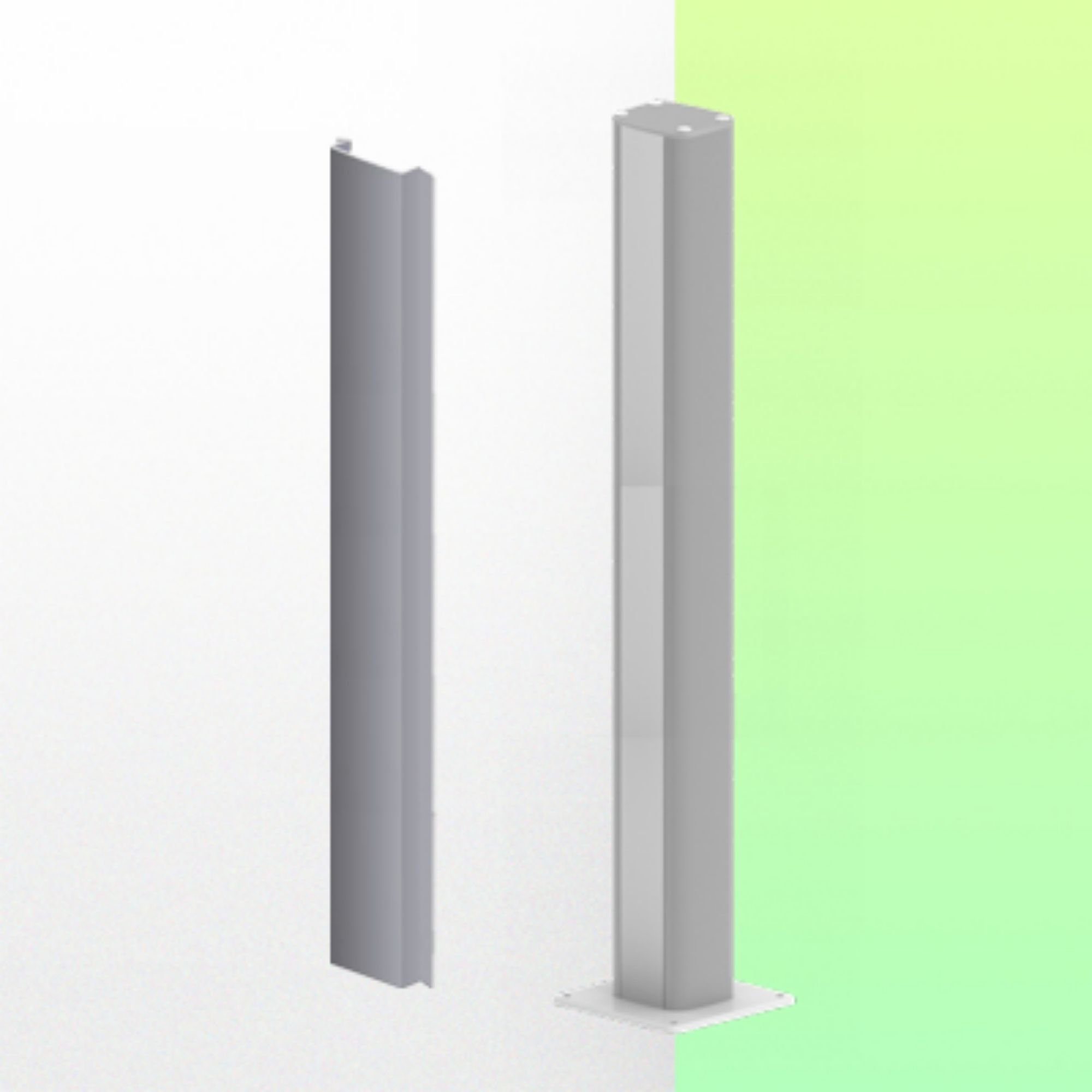

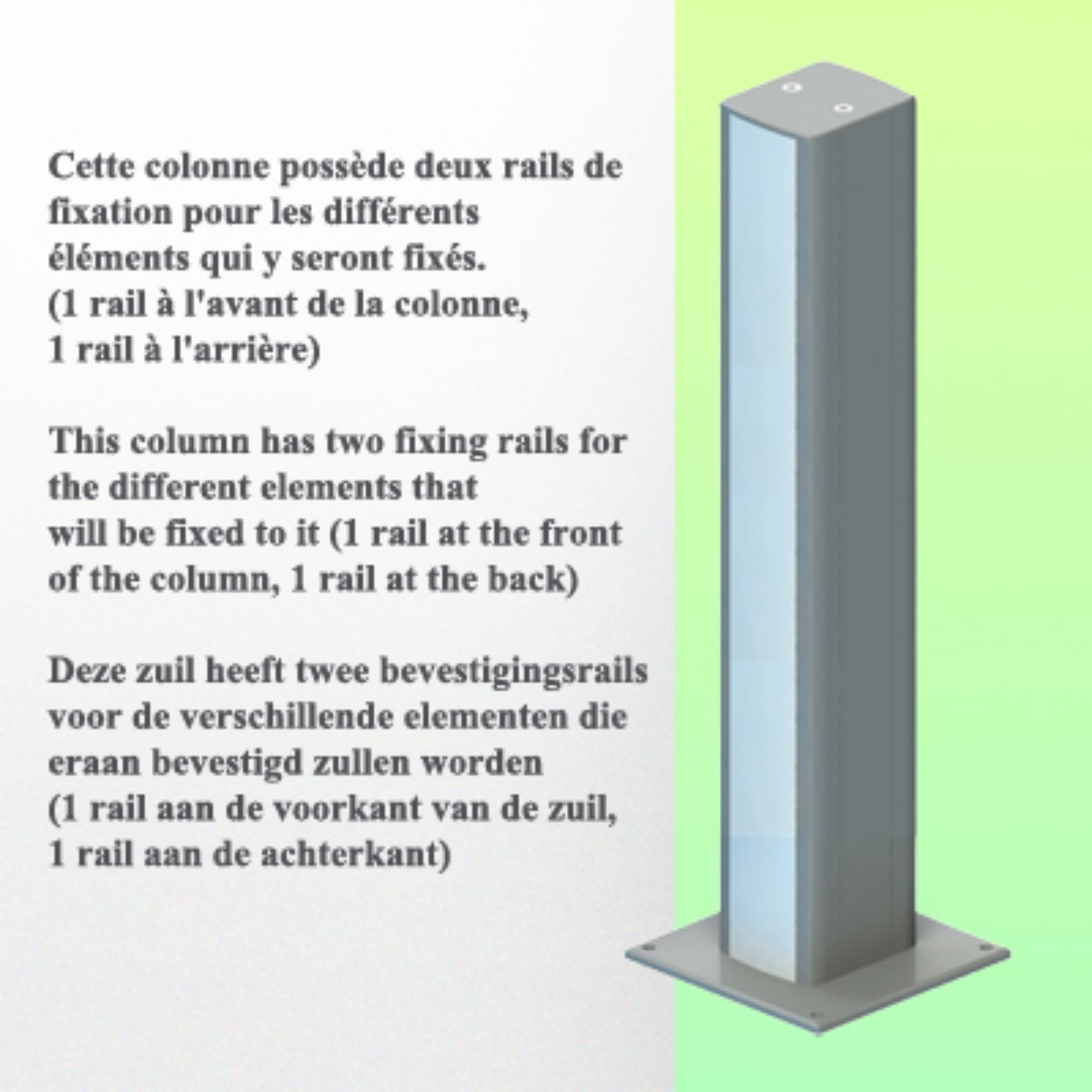

* Optional floor or ceiling columns are available in various heights (1500 - 2000 mm).

* These columns can be easily cut to size.

* All cables are also routed through the column.

* This gas-operated Double Arm simply slides into the column rail, then adjusts to the required height and locks into place.

* It has a safety stop button for height adjustment, which allows the arm to remain in the chosen position.

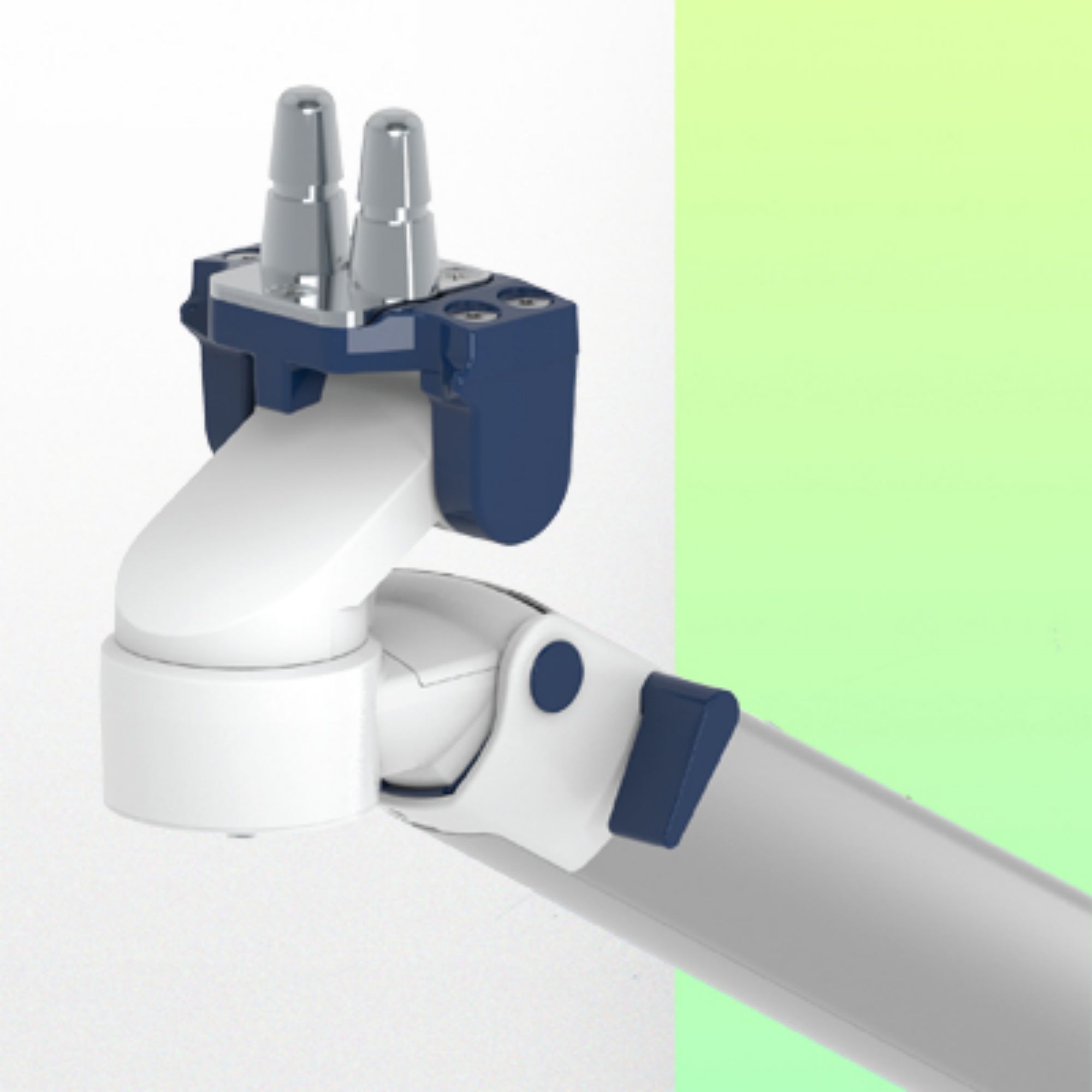

* The head of this arm is fitted for monitoring Philips Intellivue Series

* Compatible with monitors weighing no more than 2-5 Kg

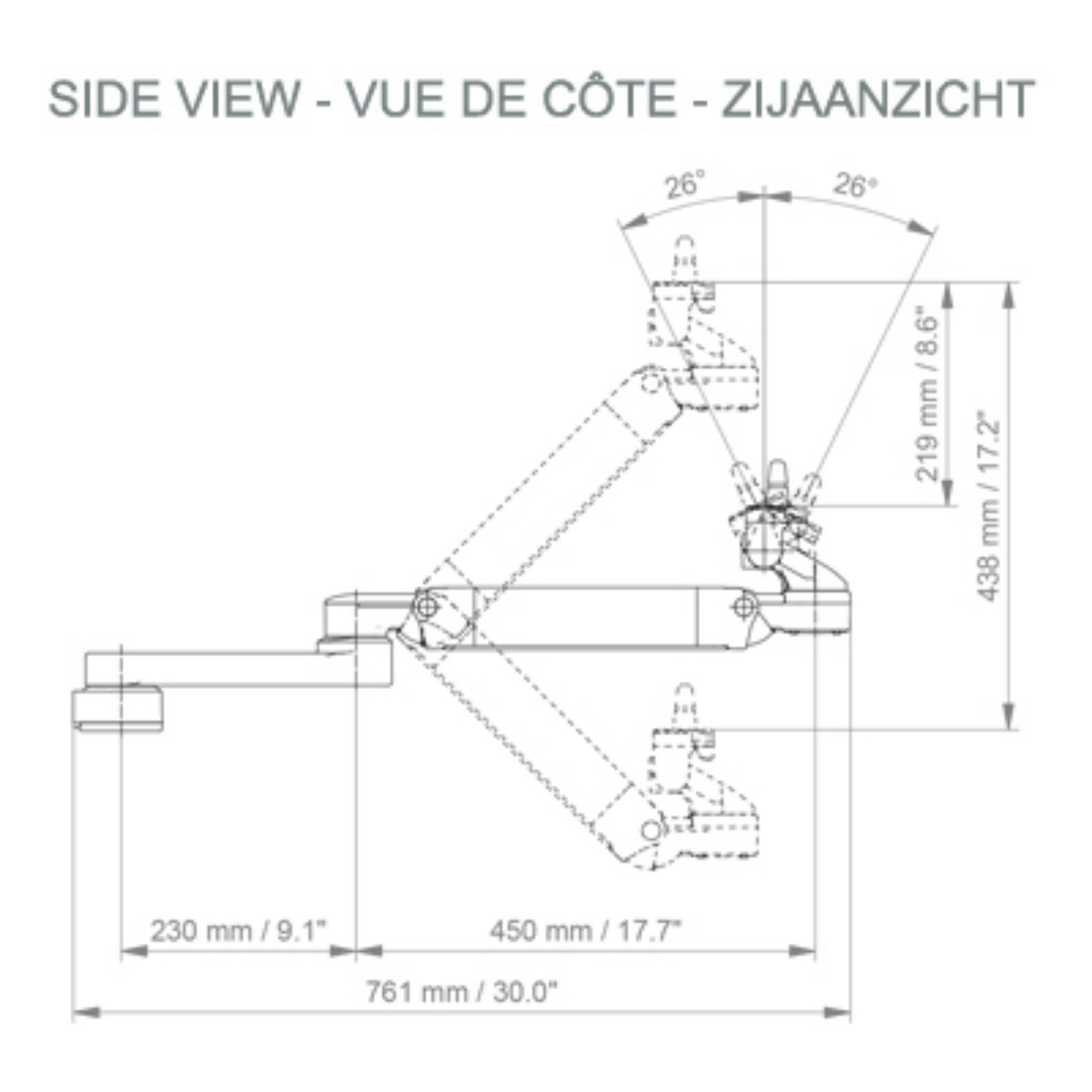

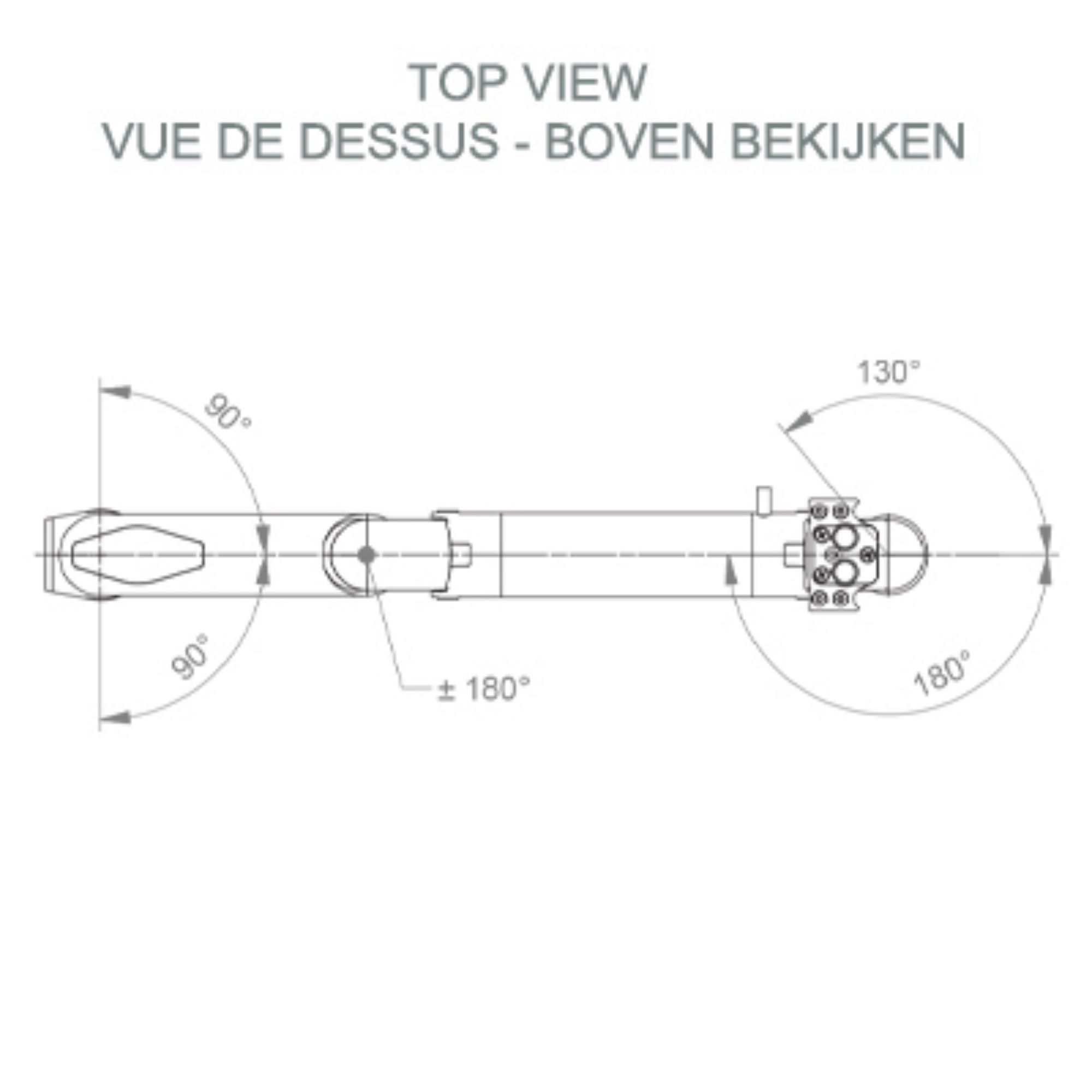

* Monitor tilt: 21° down and 20° up

* Screen rotation: 130° right, 180° left.

* Arm rotation: 90° right, 90° left

* Height adjustment: 438 mm

* Total length 761 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
