Our Medical Products

Extended Height Adjustable Medical Arm 761 mm

for monitoring Philips Intellivue Séries

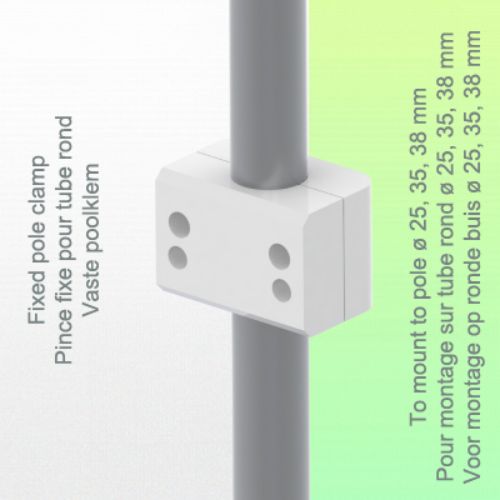

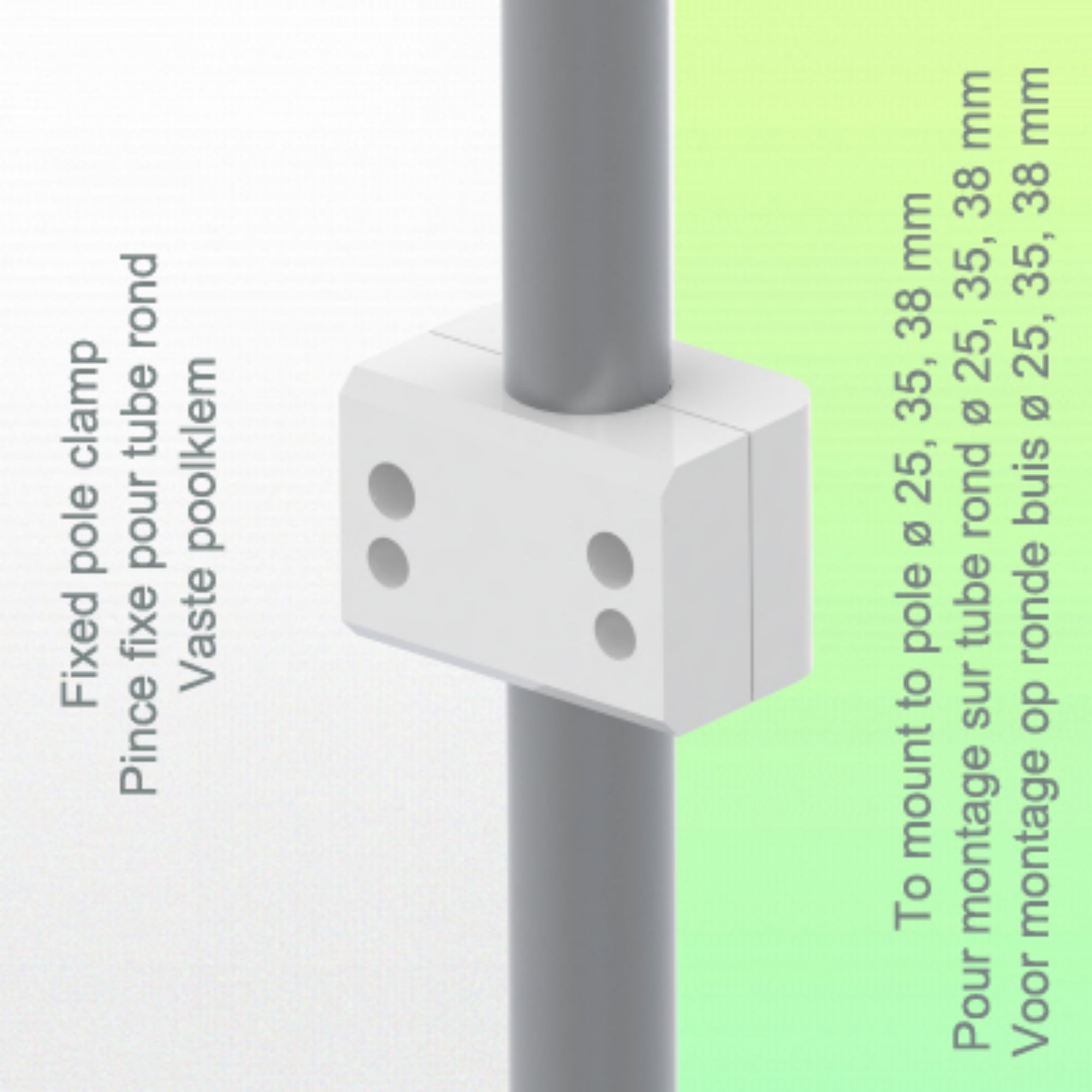

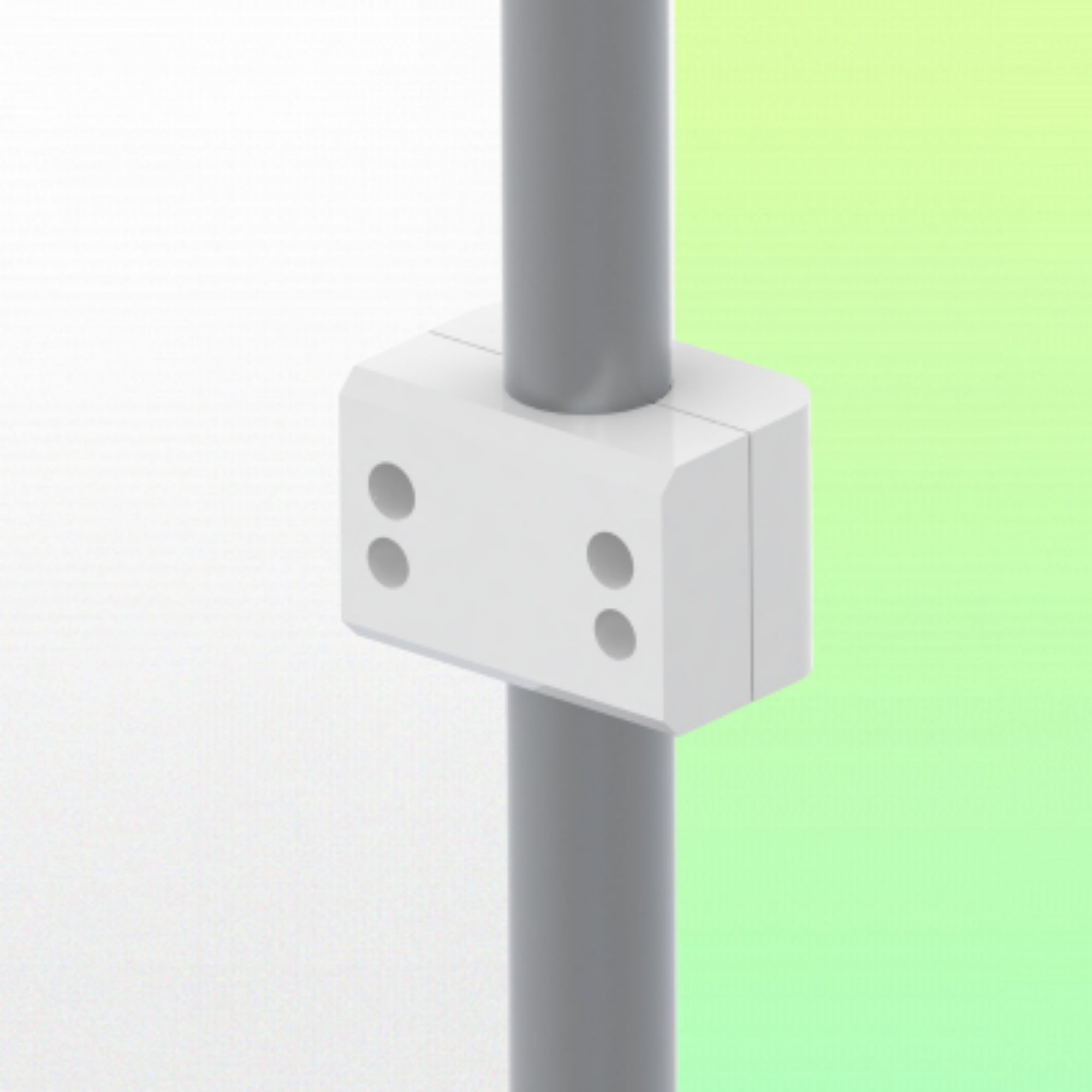

Mounting on fixed pole diameter 25, 35 and 38 mm

Supported weight balancing range from 13 to 16 Kg



Product number: WM 260.203 - Extended Height Adjustable Medical Arm 761 mm

for monitoring Philips Intellivue Séries

Mounting on fixed pole diameter 25, 35 and 38 mm

Supported weight balancing range from 13 to 16 Kg



Part Number: WM 260.203

Extended Height Adjustable Medical Arm 761 mm

for monitoring Philips

Intellivue Séries

Mounting on fixed pole diameter

25, 35 and 38 mm

Supported weight balancing range from 13 to 16 Kg

Request a quotation

  • image
  • image
  • image
  • image
  • image
  • image
  • image
  • image
  • image

Product sheet PDF

Full cable integration and infection prevention thanks to easy-to-clean surfaces make this arm ideal for emergency care areas.

Height adjustment for ergonomic, customised positioning of the monitor.

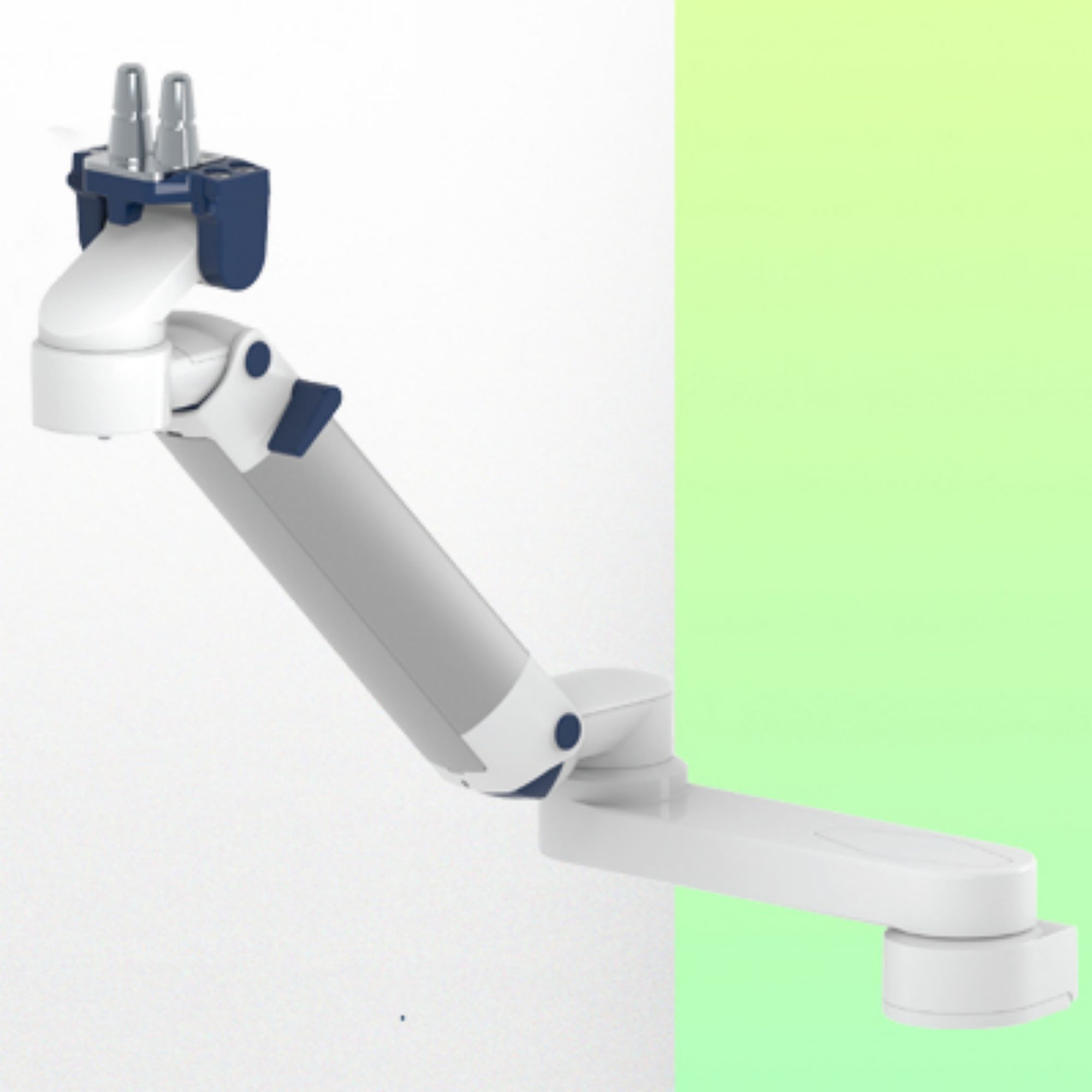

This Horizontal Double Medical Arm with gas-lift height adjustment enables the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent for hygiene and cleaning down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable passage

* Equipotential bonding

* Fixing on the chosen adapter solution

* This gas-operated Double Arm simply slides into the column rail, then adjusts to the required height and locks into place.

* It has a safety stop button for height adjustment, which allows the arm to remain in the chosen position.

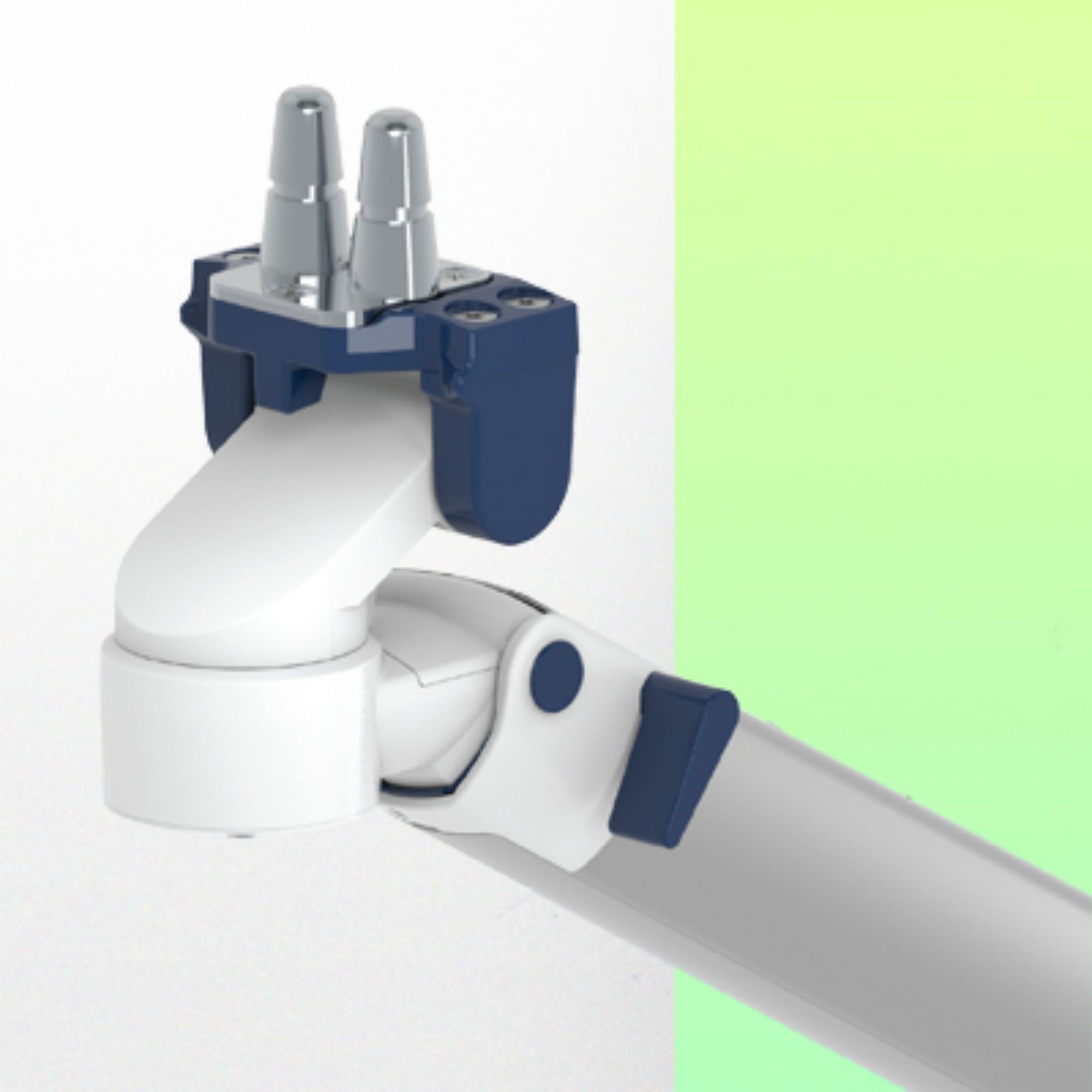

* The head of this arm is fitted for Philips Intellivue Series

* Compatible with monitors weighing no more than 13-16 Kg

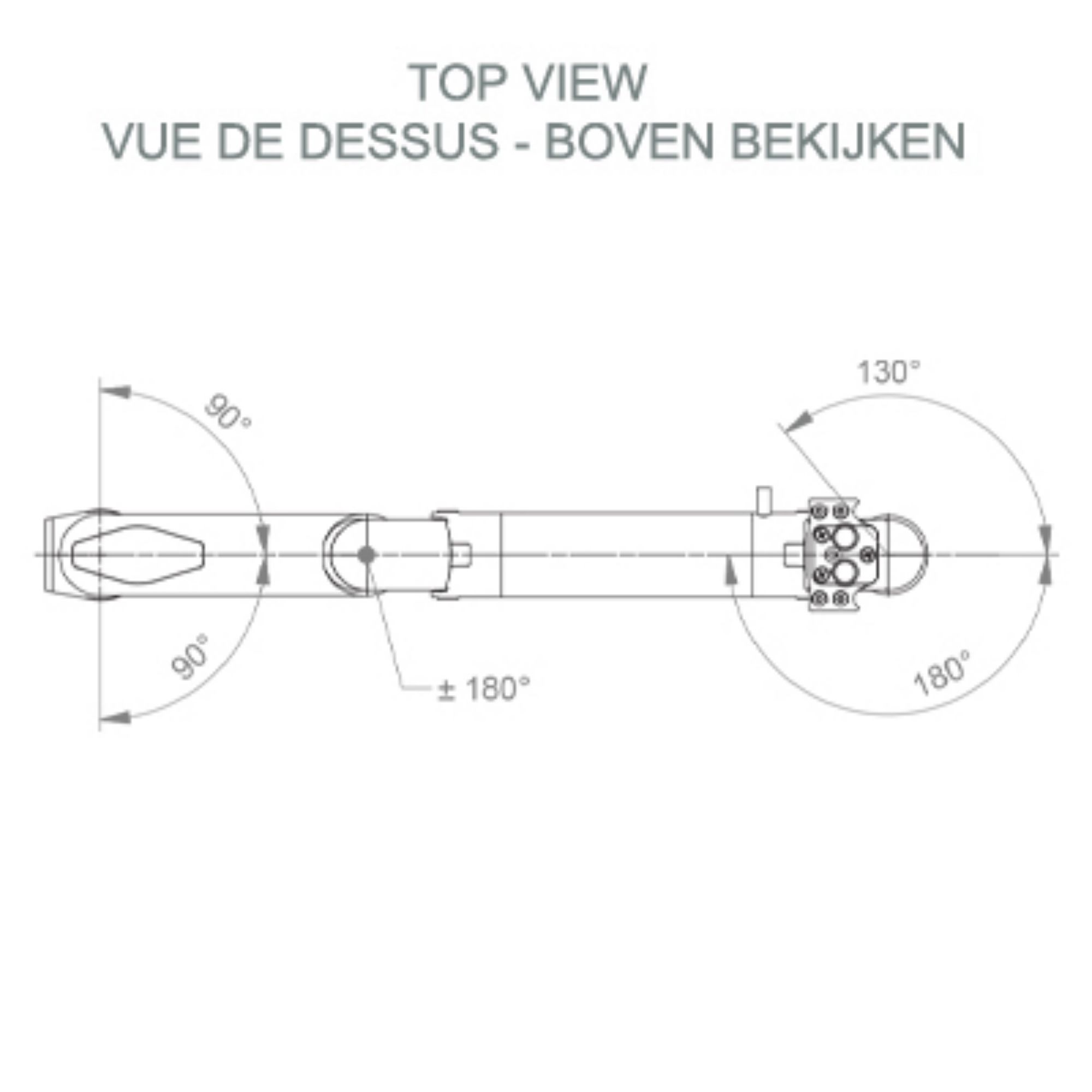

* Monitor tilt: 21° down and 20° up

* Screen rotation: 130° right, 180° left.

* Arm rotation: 90° right, 90° left

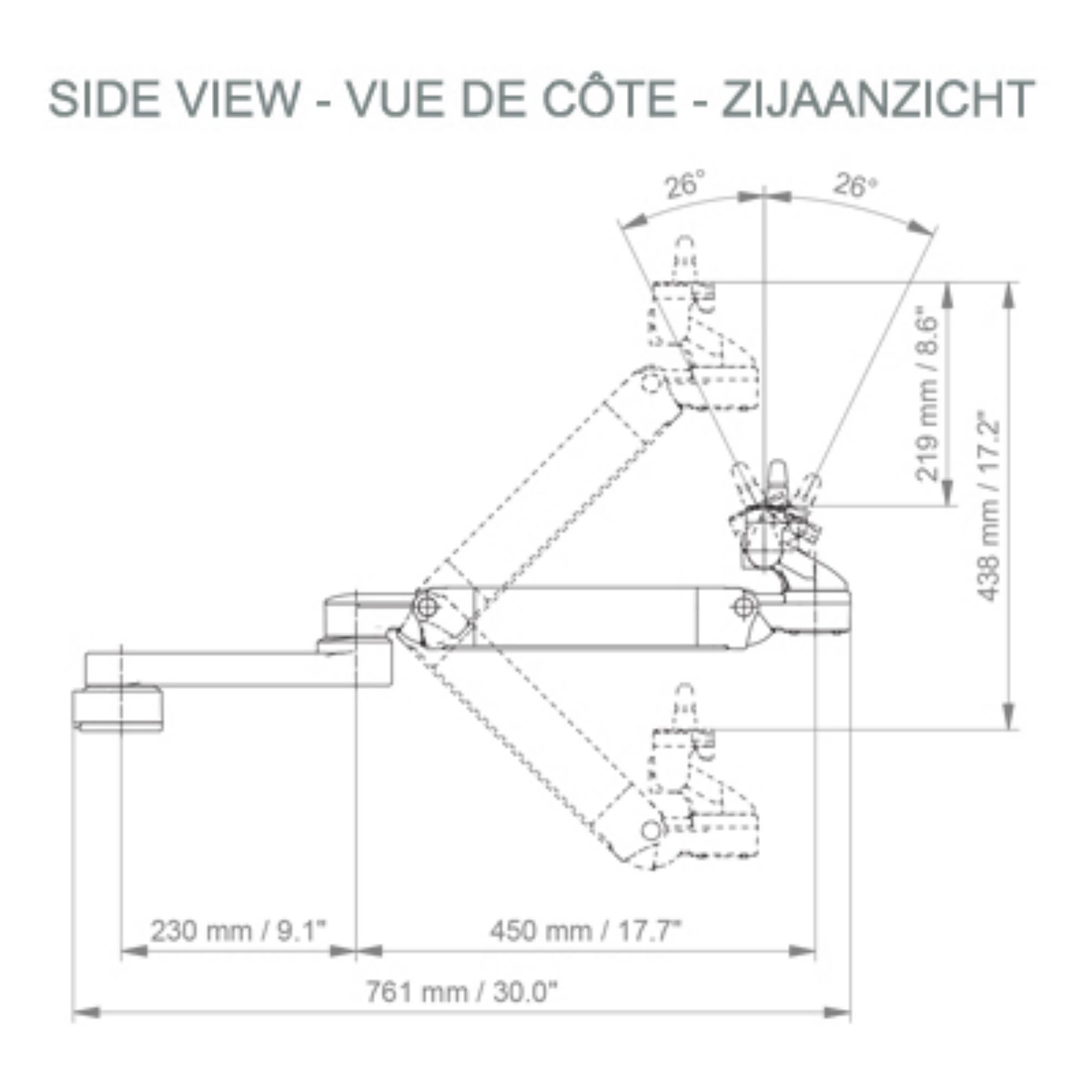

* Height adjustment: 438 mm

* Total length 761 mm

* All our medical arms comply with CE, ROHS, Medical Grade, Regulations MDD 93/42 ECC.

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years


WM 260.203



Cobalt blue

& traffic white



13 - 16 Kg



Product packaging
on request



5 Year Warranty



Request a quotation
