300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Série,

Mounting on Fixed pole clamp ø 25, 35, 38 mm.

mounting without power cable hook

Product number: WM 280.115X - 300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Série,

Mounting on Fixed pole clamp ø 25, 35, 38 mm.

mounting without power cable hook

Product sheet PDF

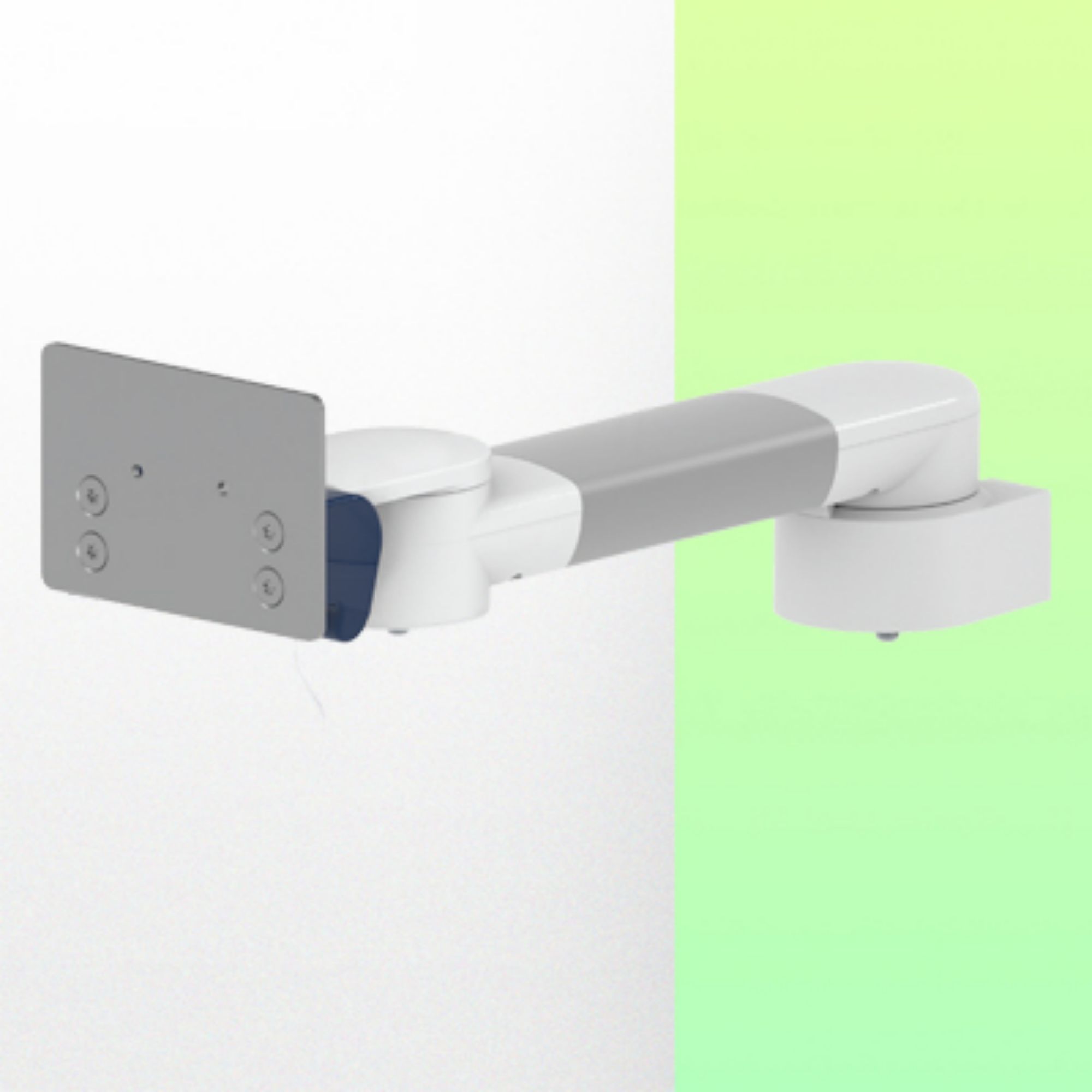

This 300 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

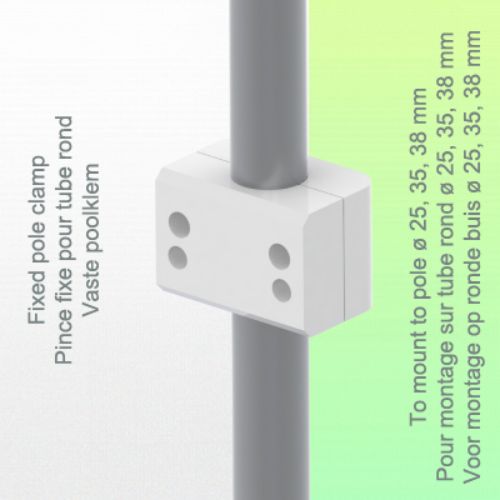

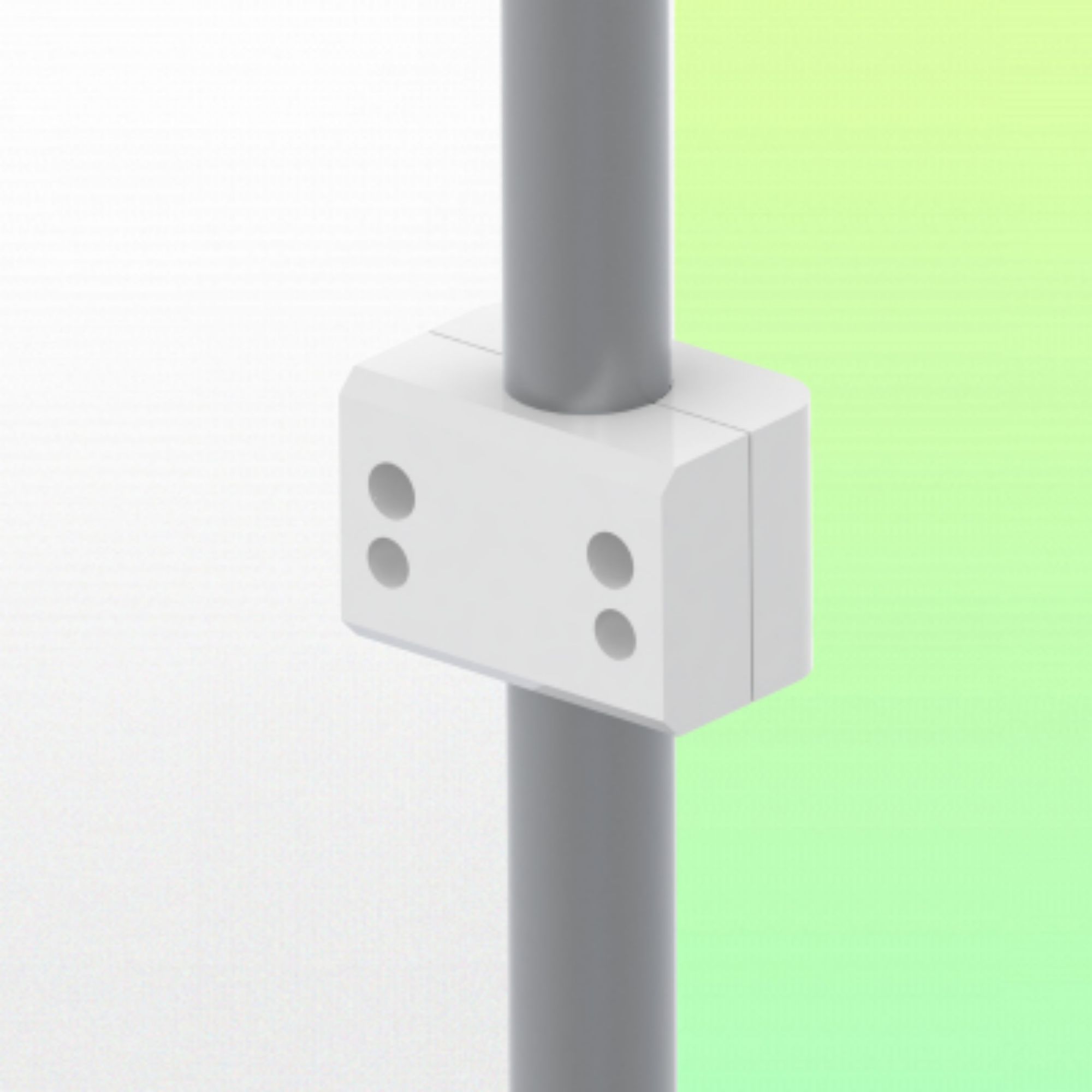

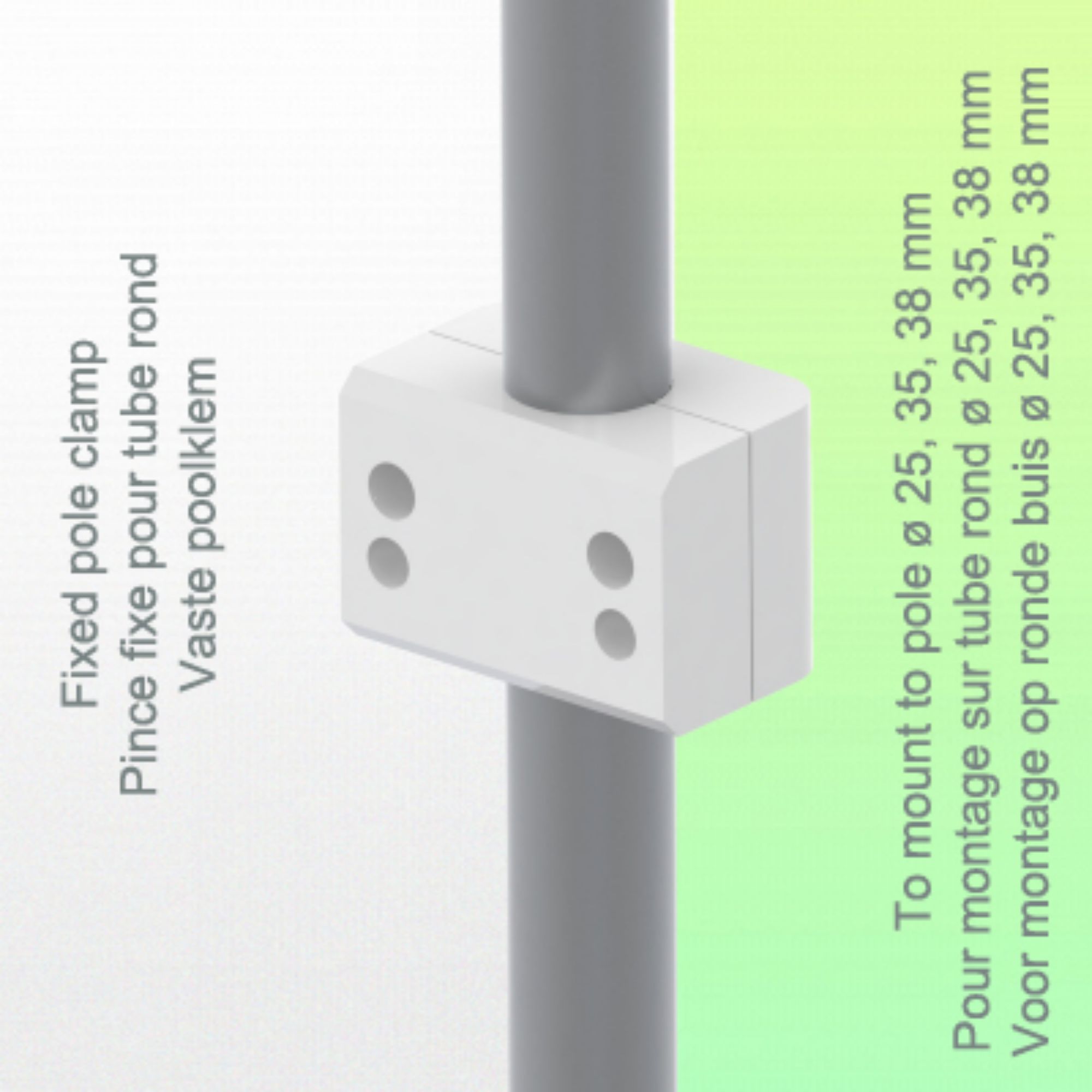

* Fixed pole mounting with 25, 35 or 38 mm diameter

* The 300 mm arm simply clips onto the pole and adjusts to the required height.

* There is no height adjustment.

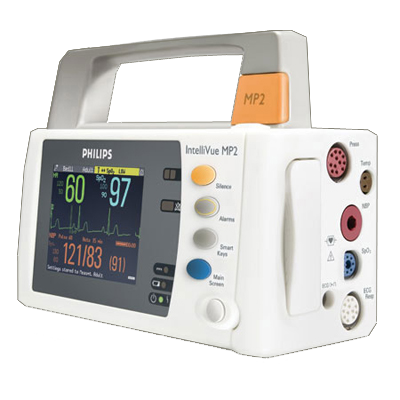

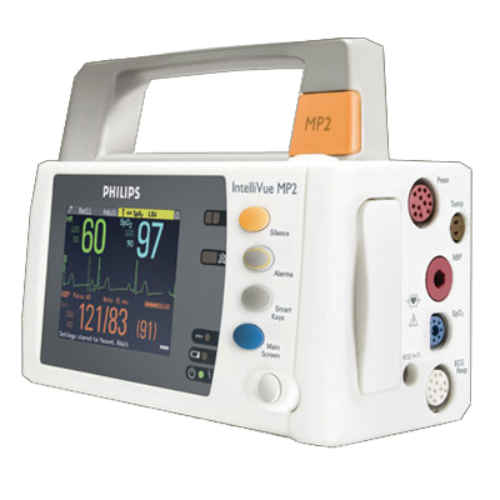

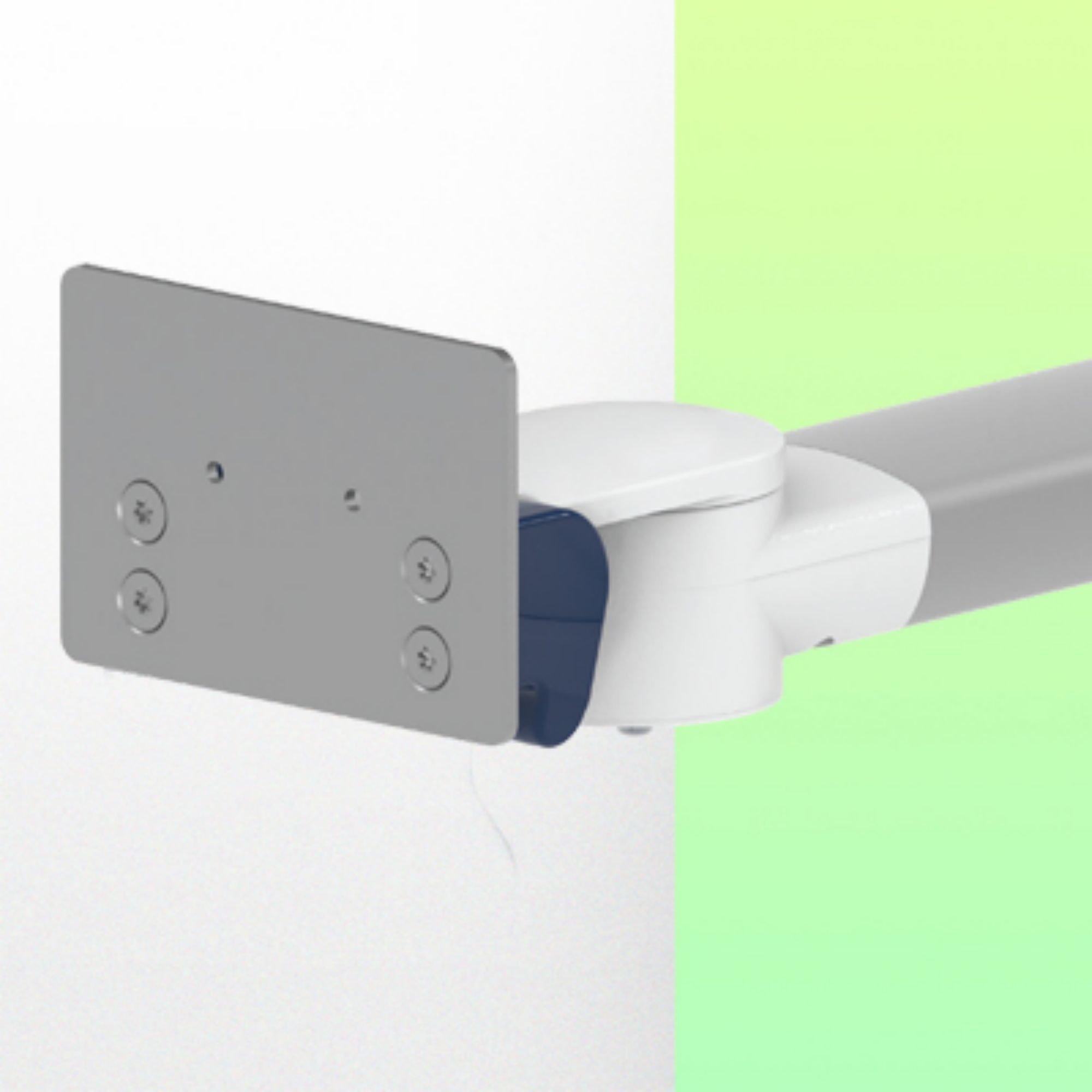

* The head of this arm complies with the mounting standard for Philips Intellivue MP2/X2/X3 series monitors weighing up to 18 kg.

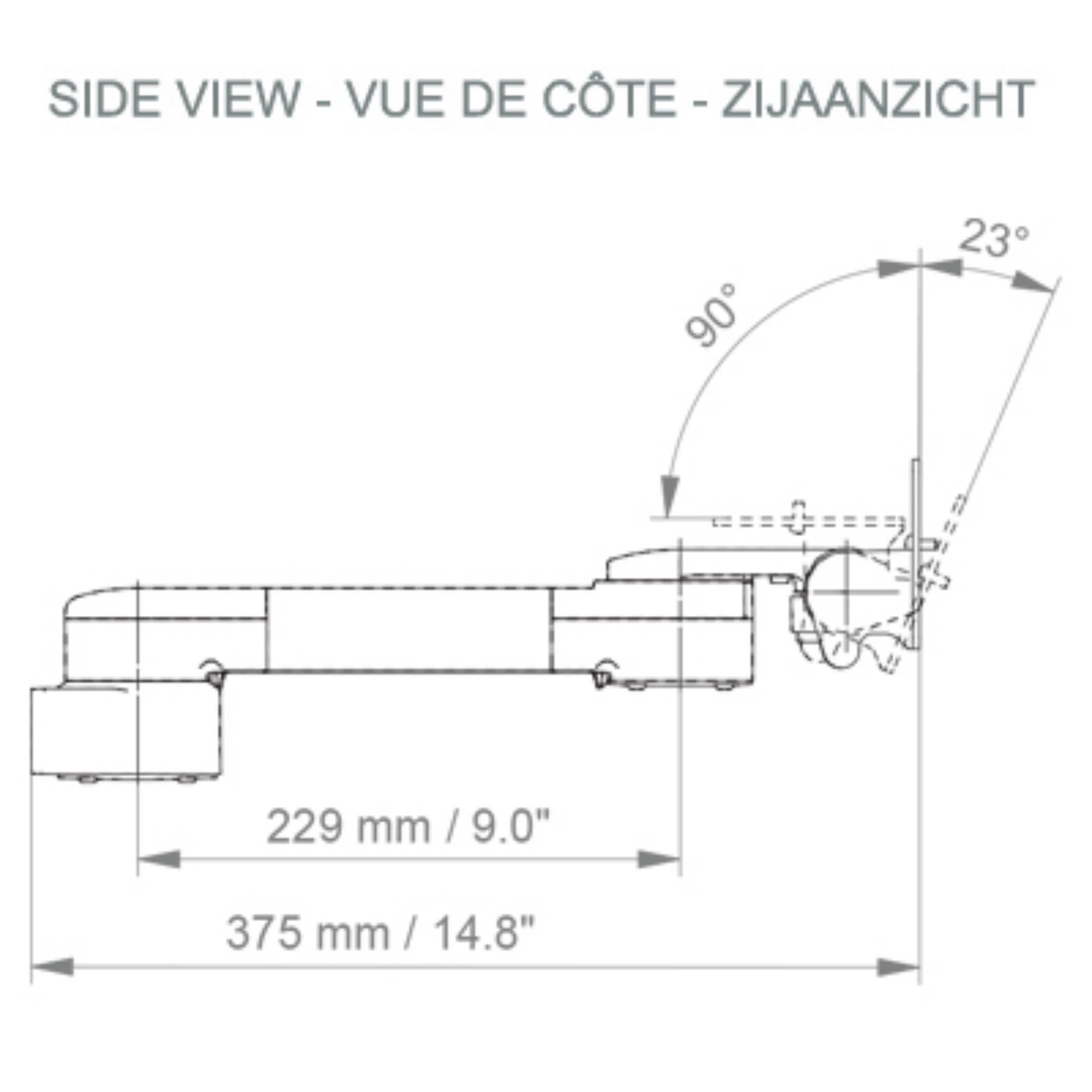

* Monitor tilt: 23° down and 90° up

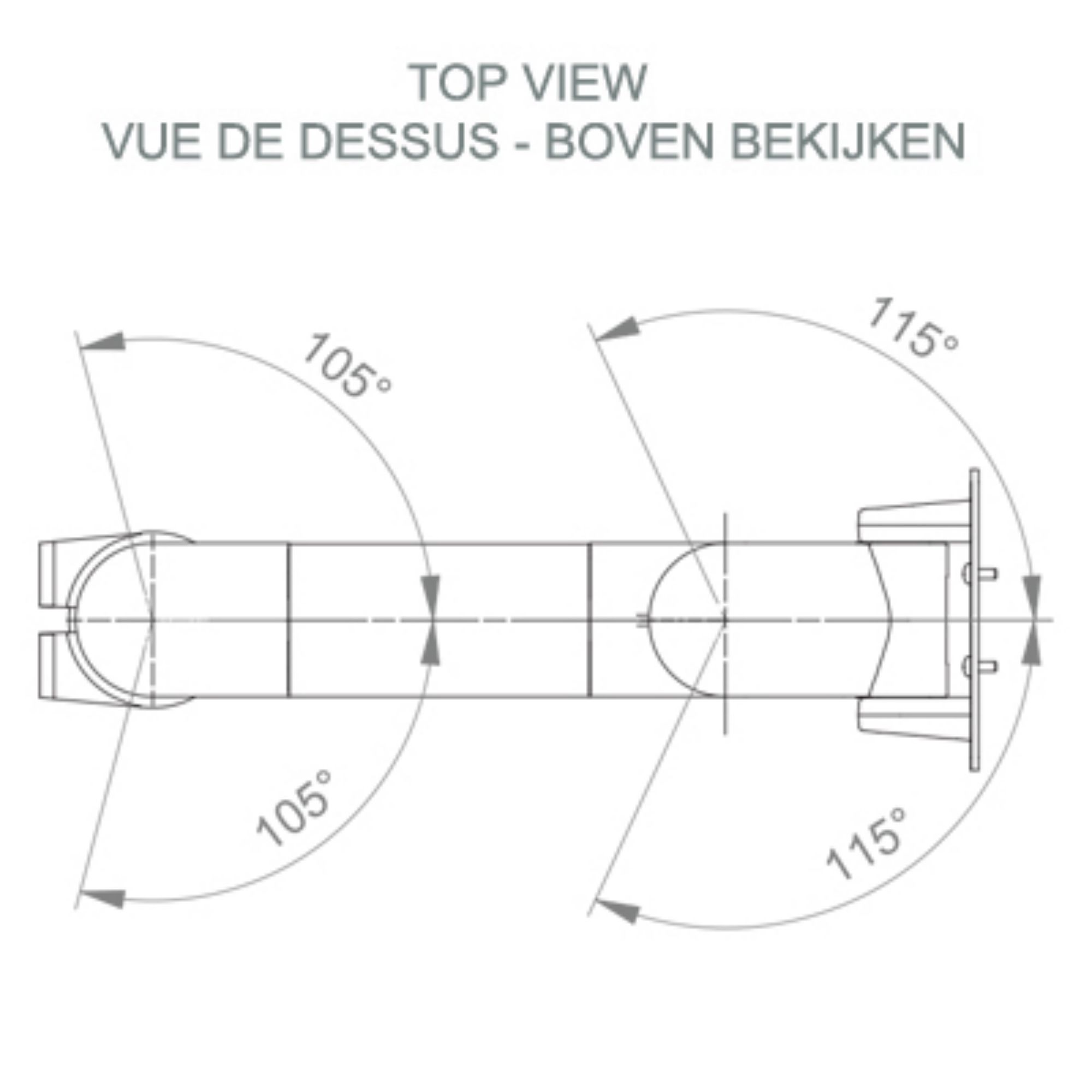

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 462 mm

Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
