2 x 300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Séries,

Mounting on Amico medical device pendants and headwalls.

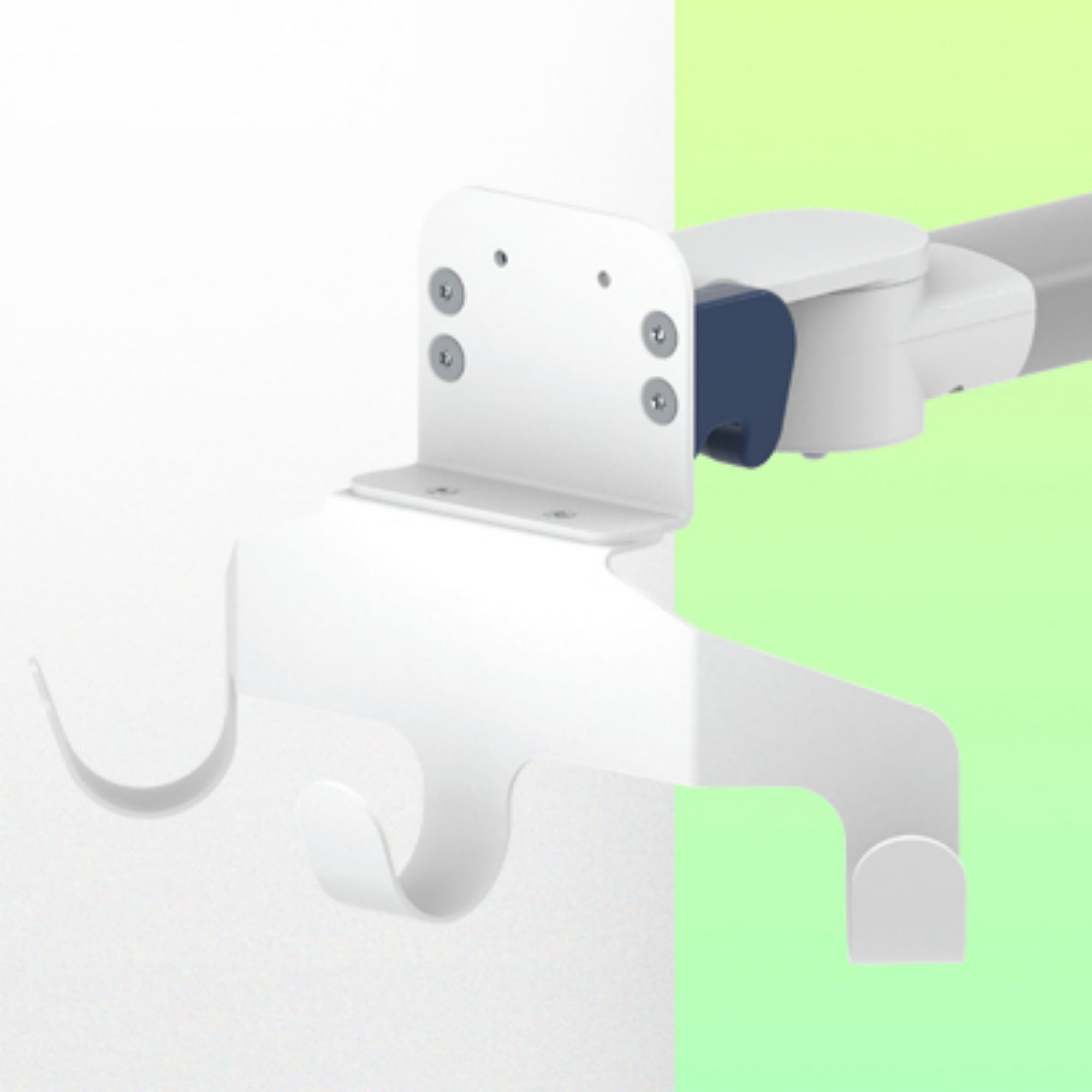

mounting with power cable hook

Product number: WM 280.125 - 2 x 300 mm Horizontal Medical Arm for Monitoring Philips Intellivue MP2/X2/X3 Séries,

Mounting on Amico medical device pendants and headwalls.

mounting with power cable hook

Product sheet PDF

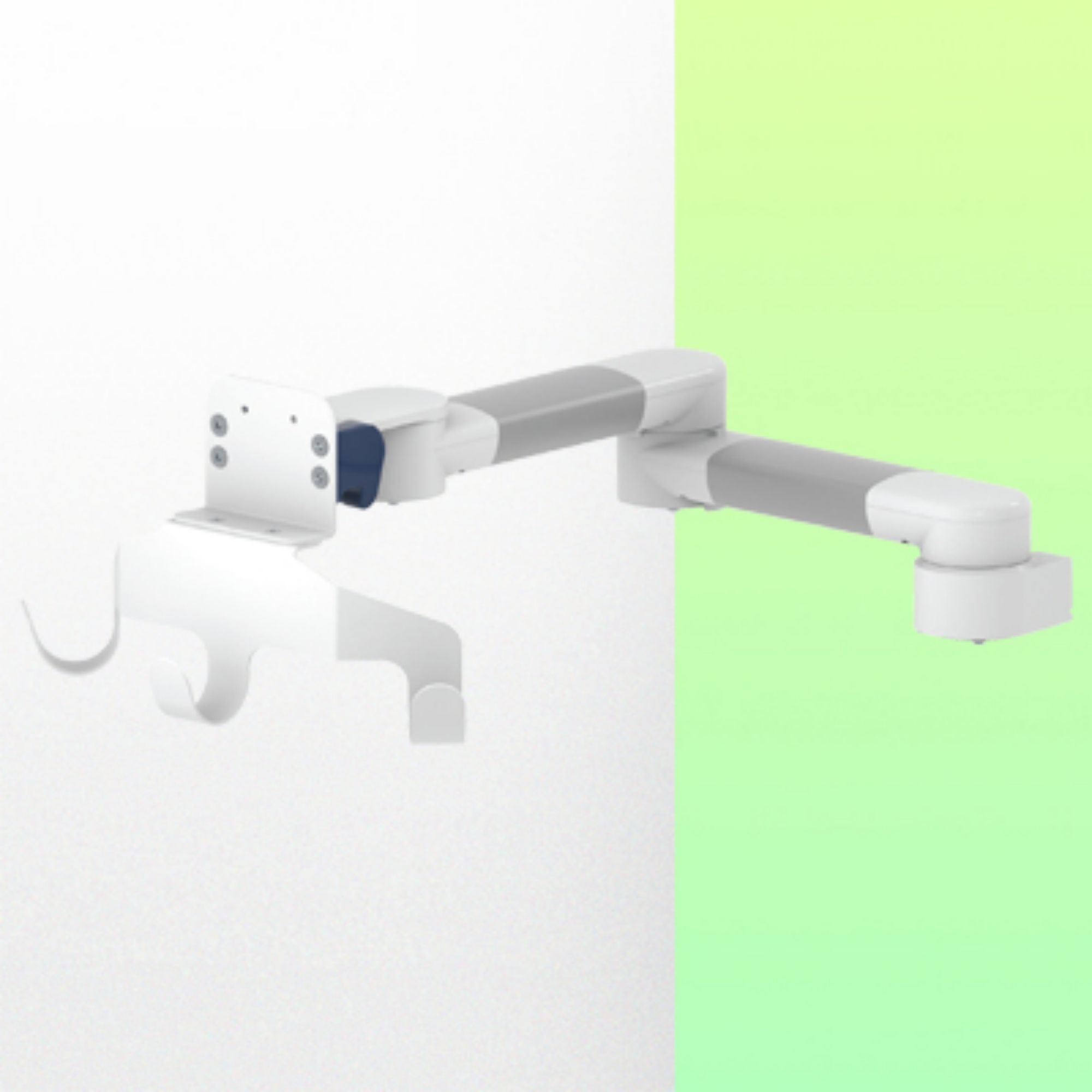

This 2 x 300 mm Horizontal Arm allows the monitor to be fixed, oriented and adjusted perfectly.

It is coated with an anti-microbial agent to ensure hygiene and cleanliness down to the smallest detail.

Its modern design has been specially developed for healthcare environments.

Technical specifications:

* Integrated cable management

* Mounting on Amico medical device pendants and headwalls

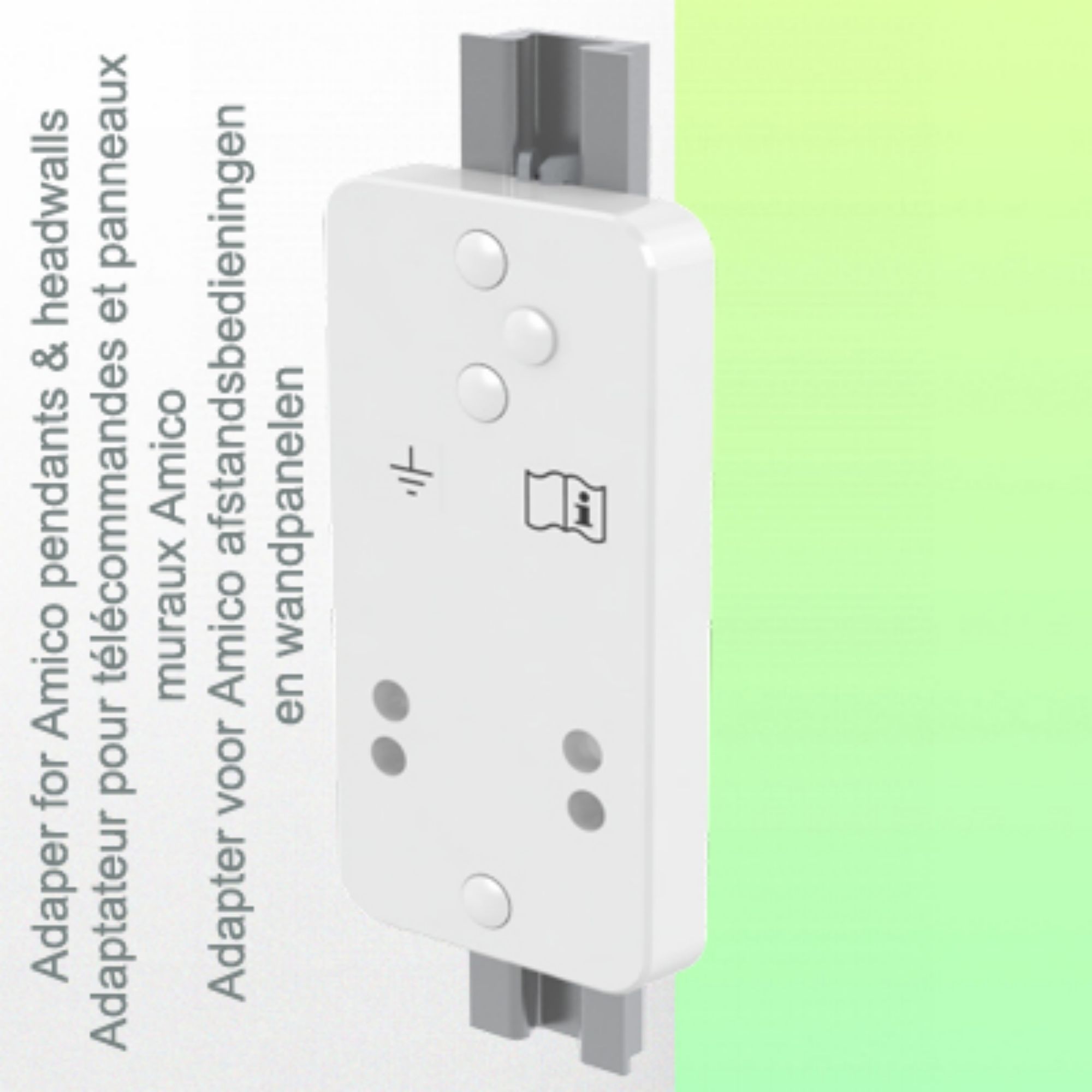

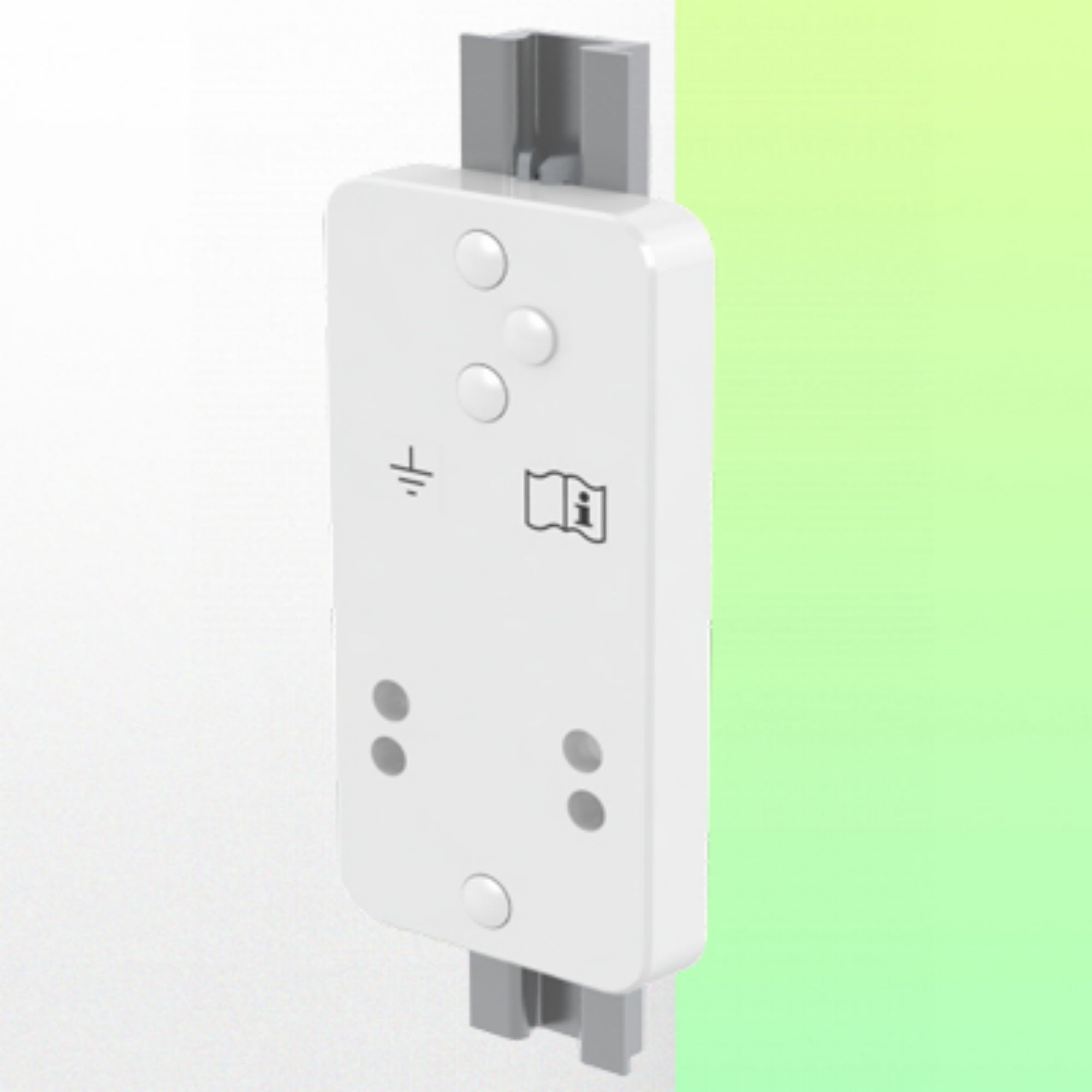

* This 2 x 300 mm arm simply attaches to the Amico unit using the adapter and adjusts to the desired height and fixed.

* It has no height adjustment.

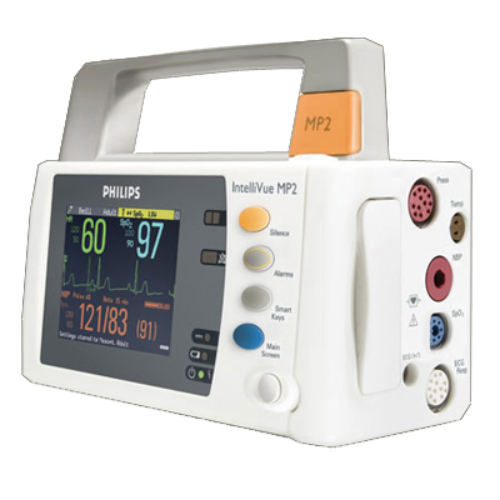

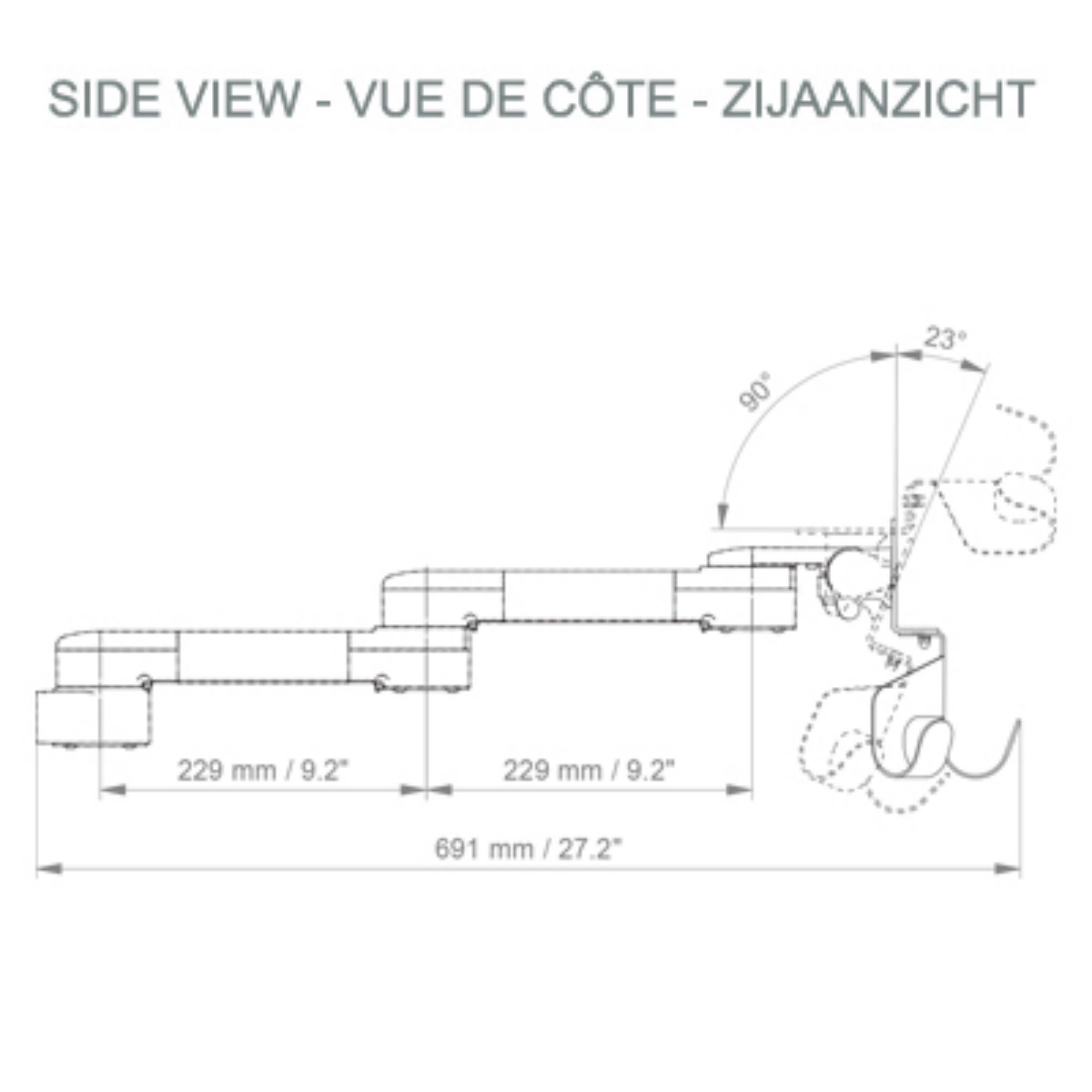

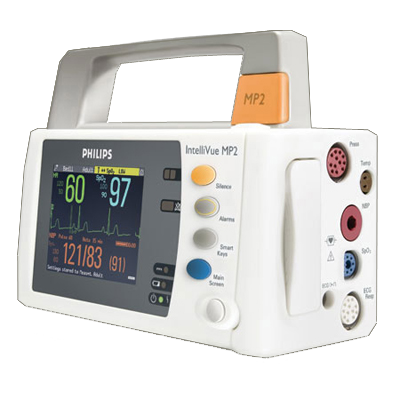

* The head of this arm complies with the mounting standard for Philips Intellivue MP2/X2/X3 series monitors weighing up to 8 kg. * Monitor tilt: 23° down and 90° up

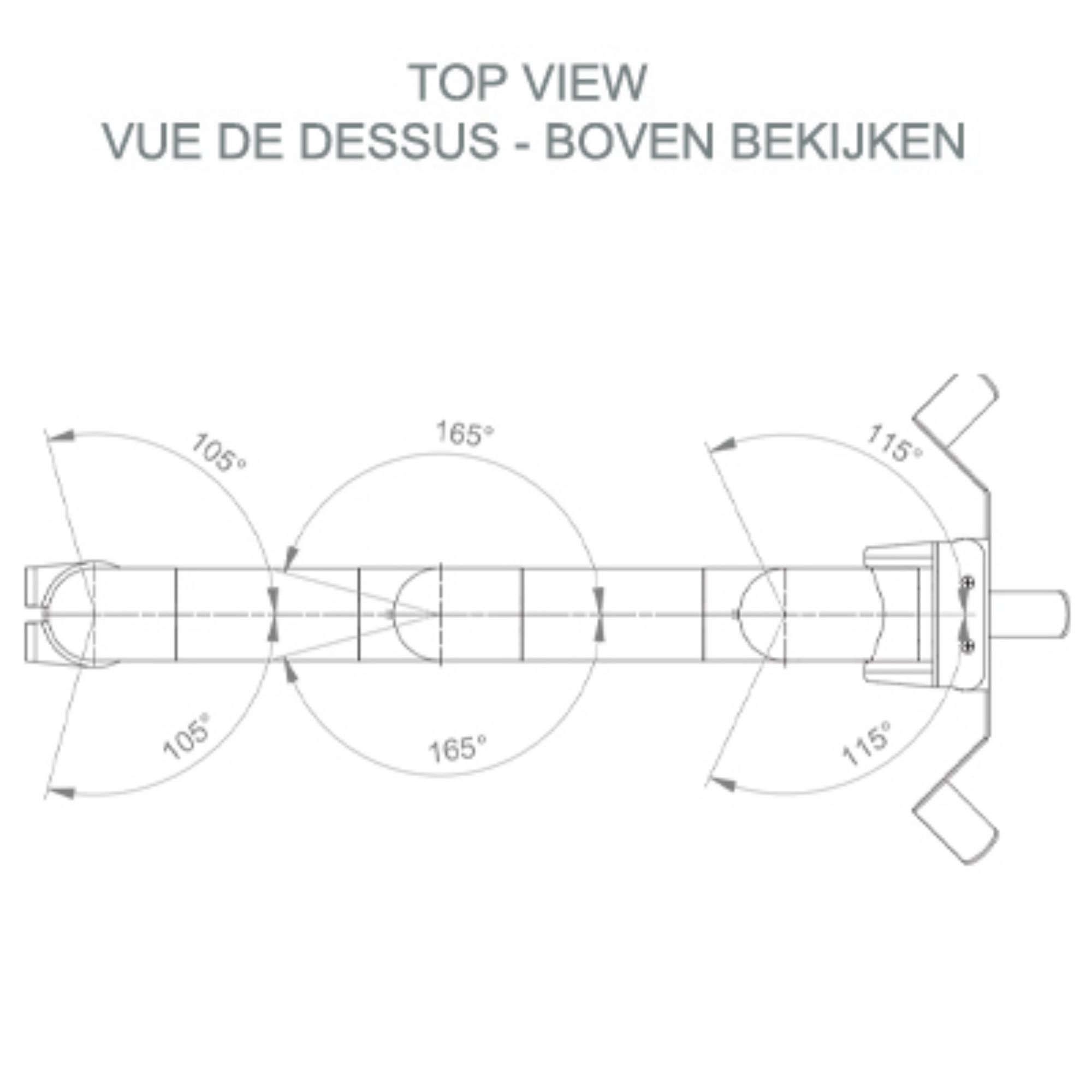

* Monitor rotation: 115° right, 115° left.

* Arm rotation: 105° right, 105° left.

* Total length: 691 mm

* Colour: RAL 5013 cobalt blue and RAL 9016 traffic white

* Warranty: 5 years
